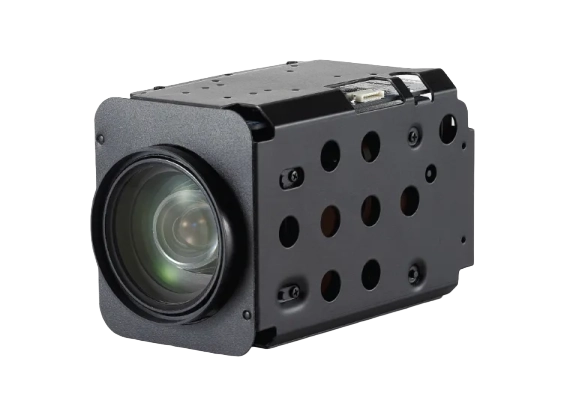

Wonwoo MM-G405 3MP Full HD 40x Zoom Camera Module for Vision Integration

MM-G405 Spec Sheet
MM-G405 Technical Manual

AppliedVP integrators can use the Wonwoo MM-G405 to add precise long‑range imaging to embedded vision platforms, robotics, and inspection systems. The 1/3.1" Sony CMOS global shutter sensor provides approximately 3.2 MP active pixels and supports 1080p and 720p formats at up to 60 frames per second, enabling accurate capture of moving parts and fast‑moving scenes. The 40x optical zoom lens (4.25–170 mm) with F1.6–F4.95 aperture gives designers flexibility from wide coverage to tight telephoto detail.

Onboard image enhancement—including 2D/3D noise reduction, digital image stabilization, digital slow shutter, day/night ICR, and DWDR—reduces the need for external processing and simplifies system design. With LVDS and CVBS outputs, configurable communication baud rates, and support for VISCA and Pelco‑D/P serial protocols, the MM-G405 integrates cleanly with custom controllers, FPGA pipelines, and NVR solutions deployed in North America and globally.

Features:

• 3 MP global shutter Sony CMOS sensor with progressive scan readout
• Full HD 1080p and 720p formats at up to 60 fps
• 40x optical zoom lens (4.25–170 mm) plus 32x digital zoom range
• Day/Night ICR, DSS up to ×32 (×64 at 60/50 fps), 2D/3D DNR
• Digital image stabilization for vibration‑prone platforms
• DWDR, high light compensation, privacy masking, and defog modes
• Motion detection (4 zones) and defect detection functions
• LVDS and CVBS interfaces; VISCA and Pelco‑D/P control over serial
• Wide operating range from -10°C to +50°C for field deployments

Applications:

• Robotics vision
• Industrial AOI
• ITS roadside
• UAV gimbals
• Rail monitoring
• Critical infrastructure
