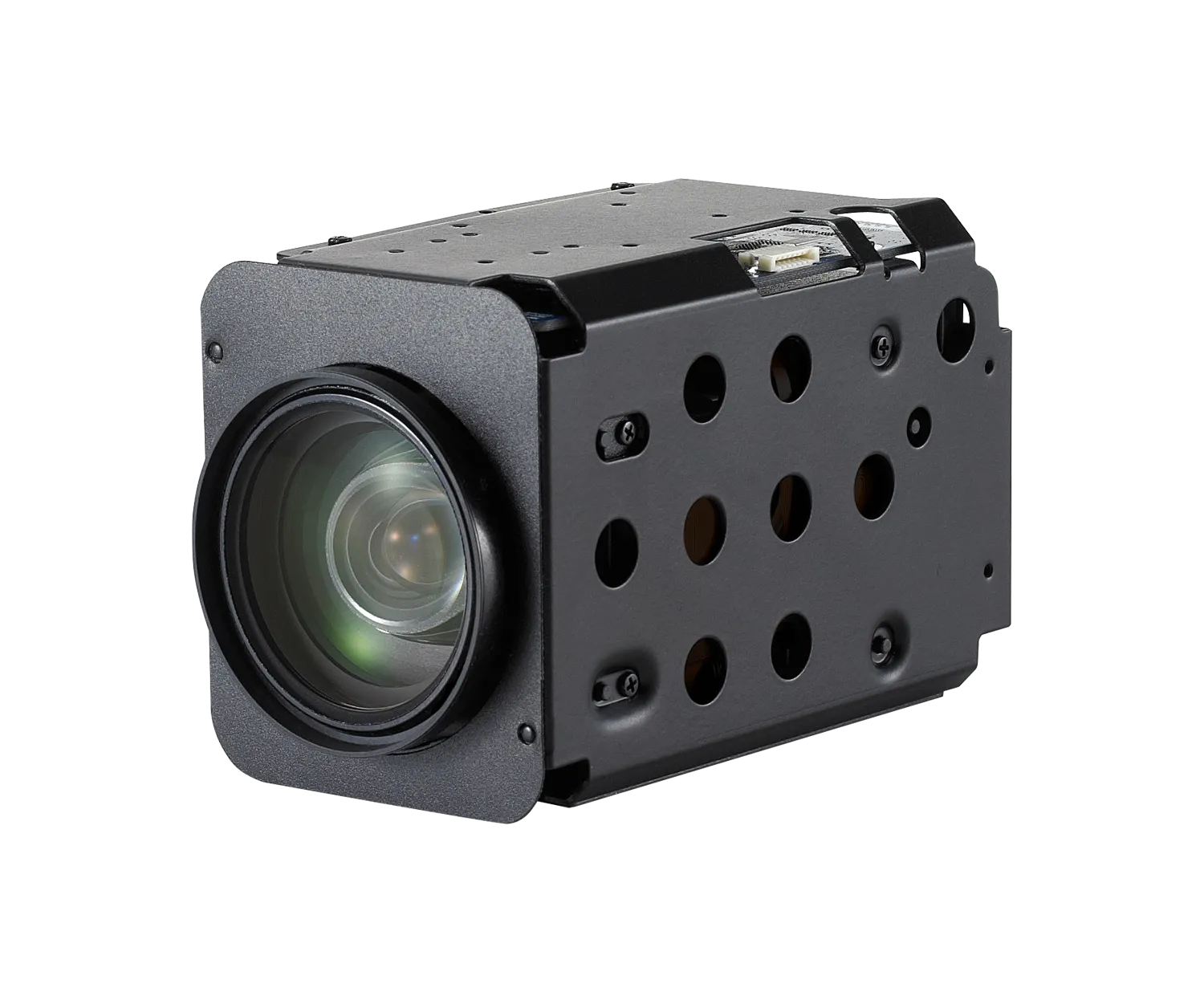

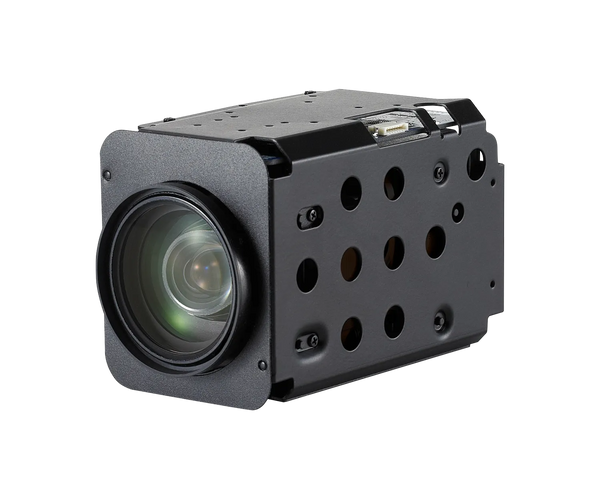

WONWOO MM-555 2MP 55x Zoom Module Camera, Sony 5MP CMOS, Day/Night, WDR

MM-555 Spec Sheet

The WONWOO MM-555 2MP 55x Zoom Module Camera delivers unmatched imaging performance for professional surveillance, industrial monitoring, and critical security applications. Engineered with precision and advanced optics, this camera ensures exceptional detail and clarity across diverse environments.

Capture every detail with 55x optical zoom (4.25mm–234mm) and 32x digital zoom, supported by a variable aperture (F1.5–F4.8) for optimal lighting adaptability. Advanced imaging technologies such as Wide Dynamic Range (WDR), 2D/3D Digital Noise Reduction, Digital Image Stabilization, and High Light Compensation guarantee clear, stable visuals even in challenging lighting.

Enhance situational awareness with Intelligent Motion Detection, Defog Function, and privacy management via the Privacy Mask Function. The MM-555 supports VISCA, Pelco-D, and Pelco-P protocols, with flexible connectivity options including LVDS and CVBS outputs for seamless integration.

Features:

• 1/2.8" 5MP Sony CMOS sensor
• 1080p 30fps/25fps, 720p 30fps/25fps
• 55x Optical Zoom (4.25mm–234mm) & 32x Digital Zoom
• Day & Night (ICR)
• Wide Dynamic Range (WDR)
• 2D/3D Digital Noise Reduction
• Digital Image Stabilization
• Privacy Mask Function
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocols
• Video Outputs: LVDS, CVBS

Applications:

• Industrial process monitoring
• Perimeter and critical infrastructure security
• Traffic and transportation surveillance
• Event and venue observation
• Citywide or campus monitoring
