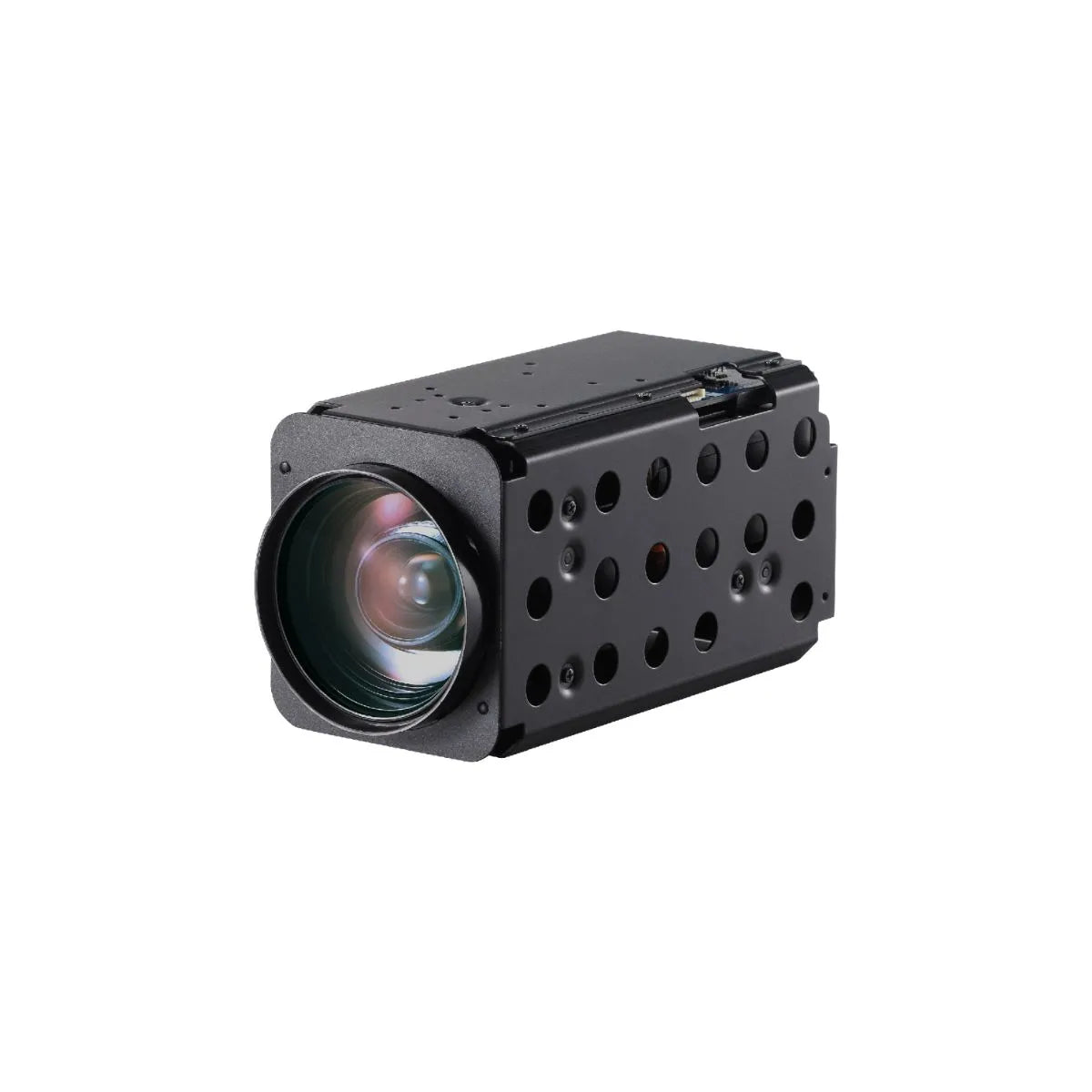

WONWOO MC-S368 2MP High-Sensitivity Block Camera Module, 36x Optical Zoom, Day & Night, LVDS/EX-SDI/CVBS Output
WONWOO MC-S368 2MP High-Sensitivity Block Camera Module, 36x Optical Zoom, Day & Night, LVDS/EX-SDI/CVBS Output
Applied Vision Products

WONWOO MC-S368 2MP High-Sensitivity Block Camera Module, 36x Optical Zoom, Day & Night, LVDS/EX-SDI/CVBS Output

$0.00 $0.00
Shipping calculated at checkout.

MC-S368 Spec Sheet

The WONWOO MC-S368 is a high-performance 2MP block camera module designed for professional security, industrial monitoring, and precision imaging applications. Equipped with a 1/2" Sony CMOS sensor, the camera delivers exceptional image quality with high sensitivity for both bright and low-light environments. Its Day & Night (ICR) functionality ensures reliable operation in varying light conditions, while selectable video resolutions of 1080p at 60fps/30fps and 720p at 60fps/30fps provide smooth, high-quality video capture.

Engineered for detail and flexibility, the MC-S368 features a 36x optical zoom (6mm–216mm) and 32x digital zoom, combined with a variable aperture of F1.5–F4.8, to capture both wide scenes and fine details. Advanced imaging technologies, including Wide Dynamic Range (WDR), 2D+3D Digital Noise Reduction, and Digital Image Stabilization, maintain optimal image clarity in challenging lighting conditions. Additional features include Intelligent Motion Detection, Defog Function, Privacy Mask, and support for VISCA, Pelco-D, and Pelco-P protocols, making the MC-S368 versatile for professional deployments. Multiple output options, including LVDS, EX-SDI, and CVBS, ensure seamless integration into existing video systems.

Features:

  • 1/2" 2MP Sony CMOS Sensor for high-sensitivity imaging
  • 1080p 60fps/30fps, 720p 60fps/30fps video resolution
  • 36x Optical Zoom (6mm–216mm) & 32x Digital Zoom
  • Variable Aperture: F1.5 (wide)–F4.8 (tele)
  • Day & Night (ICR) functionality
  • Wide Dynamic Range (WDR)
  • 2D+3D Digital Noise Reduction
  • Digital Image Stabilization
  • Privacy Mask Function for sensitive area protection
  • High Light Compensation for extreme lighting conditions
  • Intelligent Motion Detection & Defog Function
  • Supports VISCA, Pelco-D, and Pelco-P control protocols
  • Video Output: LVDS, EX-SDI, CVBS

Applications:

  • Security Surveillance
  • Industrial Monitoring
  • Traffic Observation
  • Perimeter Protection
  • Critical Infrastructure Oversight
