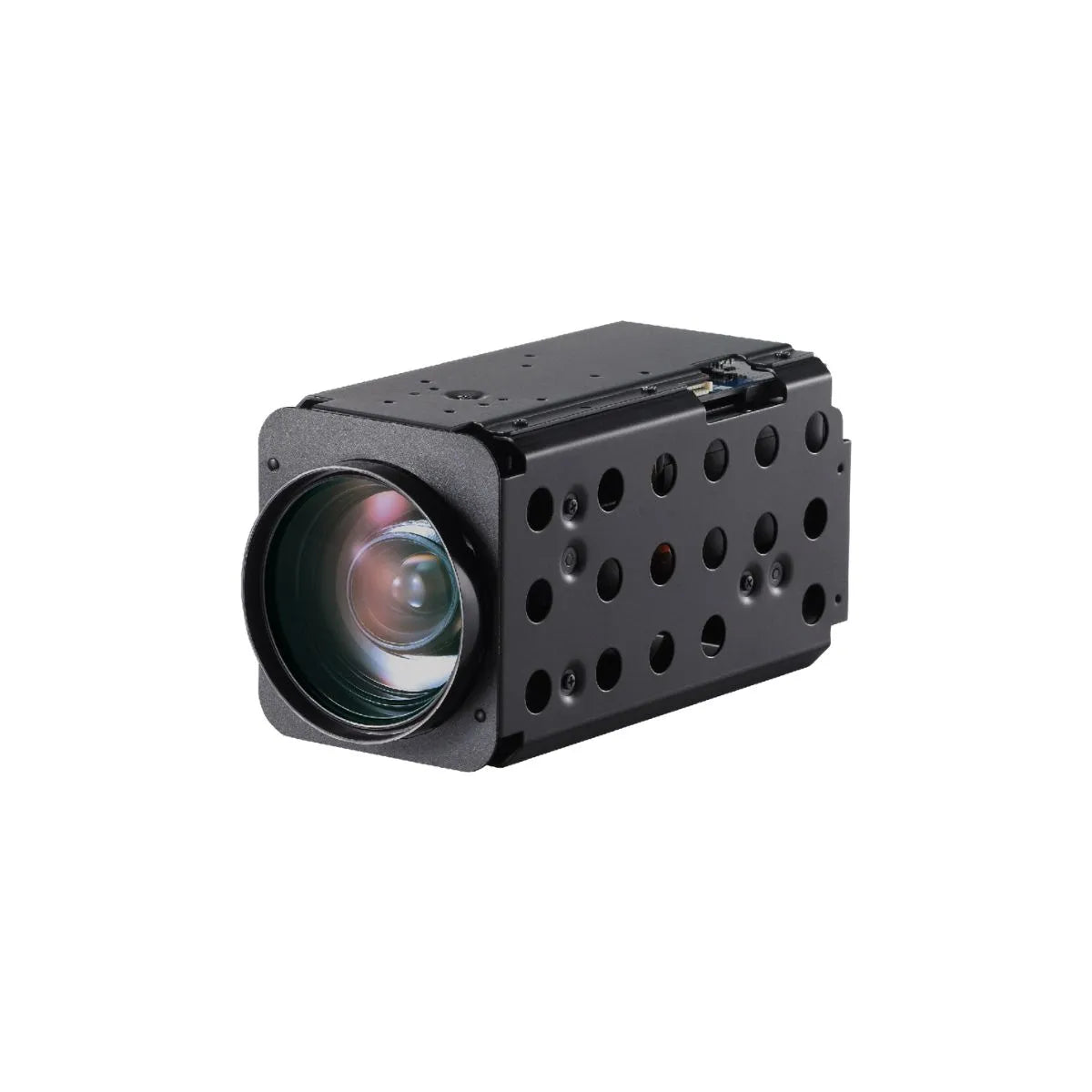

WONWOO MC-S308 2MP High Sensitivity 30x Zoom Module Camera, 1080p/60fps, LVDS/EX-SDI/CVBS Output

MC-S308 Spec Sheet

The WONWOO MC-S308 2MP High Sensitivity 30x Zoom Module Camera delivers professional-grade imaging for security, industrial, and surveillance applications in the United States. Engineered with a 1/2" 2MP Sony CMOS sensor, the MC-S308 excels in both low-light and dynamic lighting conditions, providing crisp, high-resolution images day and night with ICR functionality.

Capture intricate details with 30x optical zoom (6–180mm) and 32x digital zoom, complemented by a variable aperture F1.5–F4.3 for precise light control. The camera supports multiple resolutions: 1080p at 60/30fps and 720p at 60/30fps, ensuring smooth video for diverse monitoring scenarios.

Advanced features such as Wide Dynamic Range (WDR), 2D+3D Digital Noise Reduction, Digital Image Stabilization, High Light Compensation, and Defog Function enhance image clarity in challenging environments. Privacy Masking protects sensitive areas, while Intelligent Motion Detection ensures timely alerts.

Designed for integration, the MC-S308 supports VISCA, Pelco-D, and Pelco-P protocols, with flexible outputs including LVDS, EX-SDI, and CVBS, making it ideal for commercial, industrial, and municipal projects.

Features:

• 1/2" 2MP Sony CMOS Sensor for high sensitivity
• 1080p/60fps & 720p/60fps selectable video resolutions
• 30x Optical Zoom (6–180mm) & 32x Digital Zoom
• Variable Aperture: F1.5 (wide) – F4.3 (tele)
• Day & Night (ICR) capability
• Wide Dynamic Range (WDR) for high-contrast environments
• Digital Noise Reduction (2D+3D)
• Digital Image Stabilization for vibration-free footage
• Privacy Mask Function for sensitive areas
• High Light Compensation & Defog Function
• Intelligent Motion Detection for enhanced security
• VISCA, Pelco-D/P protocol support
• Video outputs: LVDS, EX-SDI, CVBS

Applications:

• Security Surveillance
• Industrial Monitoring
• Traffic & Public Safety
• Critical Infrastructure Inspection
