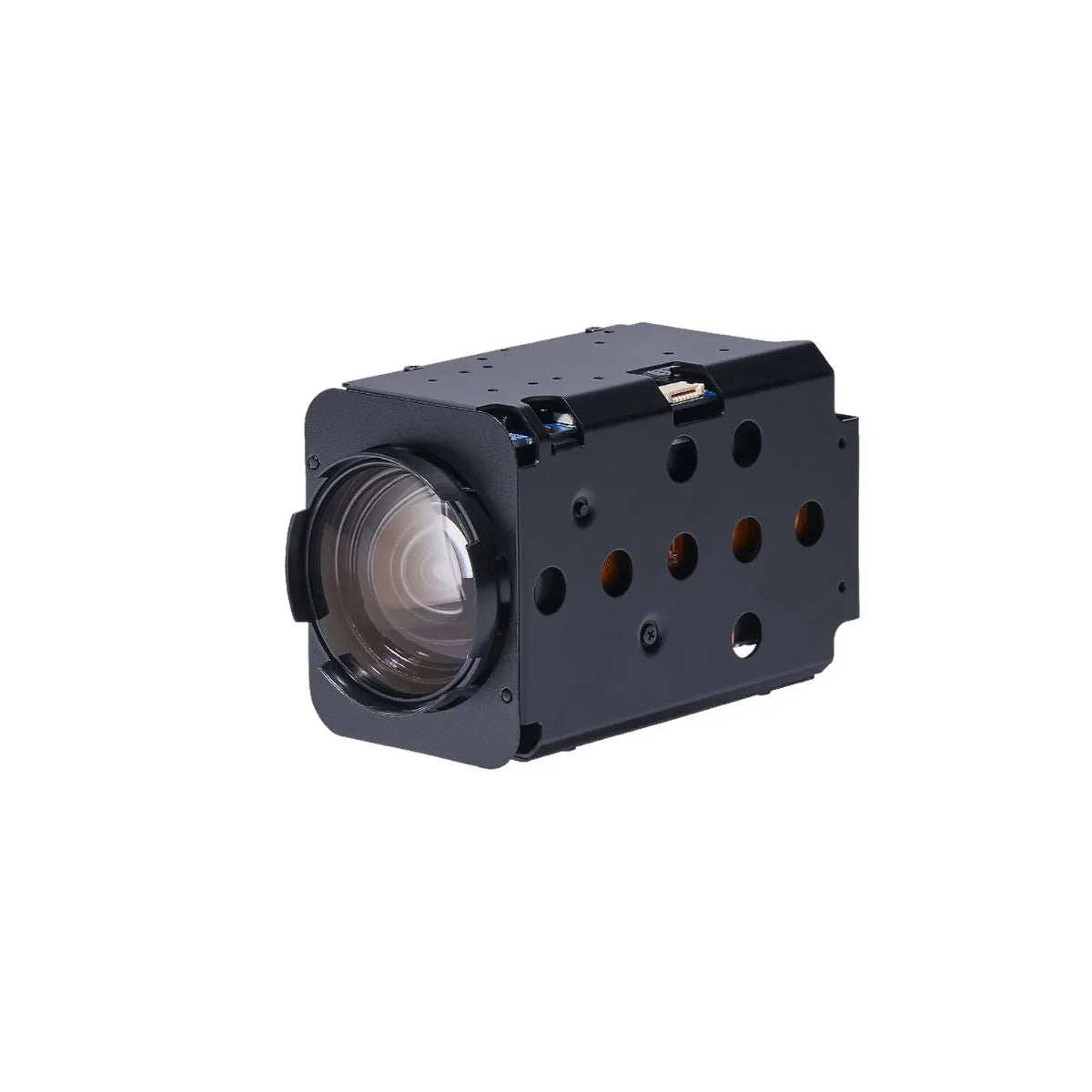

WONWOO MC-S189 2MP 18x Zoom Module Camera, Sony CMOS, Day/Night, WDR

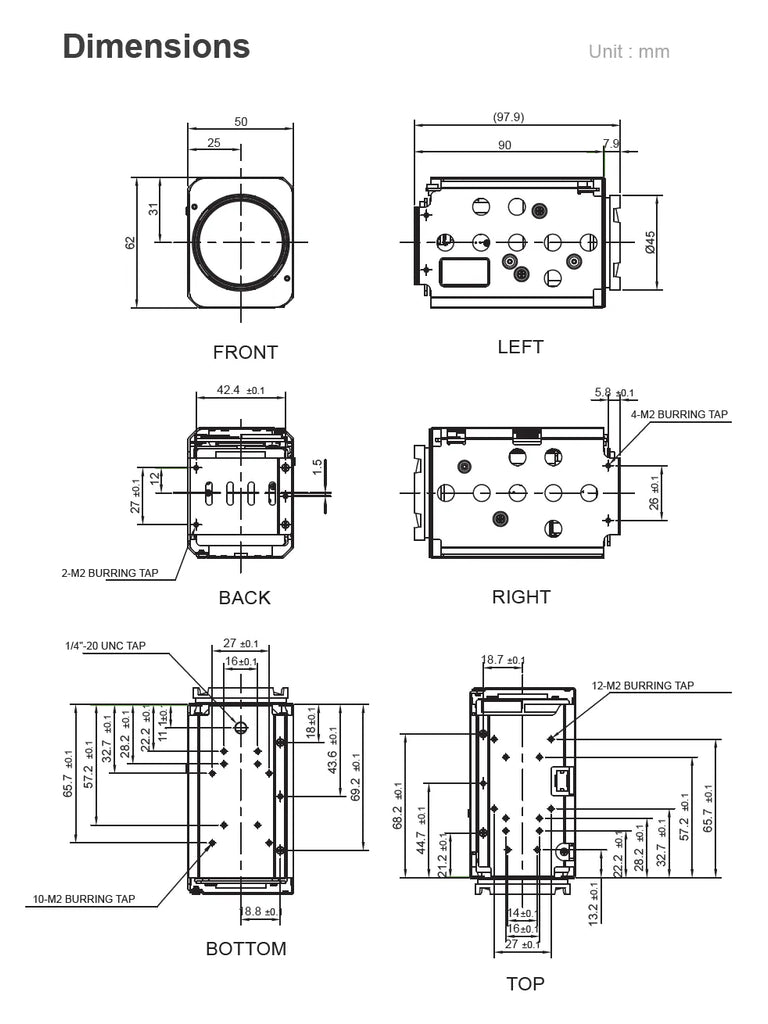

MC-S189 Spec Sheet

The WONWOO MC-S189 2MP 18x Zoom Module Camera delivers professional-grade imaging with precision and reliability. Equipped with a 1/2" 2MP Sony CMOS sensor, it provides sharp, vivid detail in any lighting. The camera supports 1080p at 60/30fps, 1080i 60fps, and 720p at 60/30fps, ensuring smooth and clear video for critical applications.

Featuring 18x optical zoom (6.8–122.4mm) and 32x digital zoom, plus a variable aperture from F1.61 to F4.13, the MC-S189 adapts seamlessly to complex lighting conditions. Day & Night (ICR), Wide Dynamic Range (WDR), Digital Noise Reduction (2D+3D), and Digital Image Stabilization maintain exceptional image quality, even in challenging environments.

Advanced functions include Privacy Masking, High Light Compensation, Intelligent Motion Detection, and Defog capabilities. With support for VISCA, Pelco-D, and Pelco-P protocols, plus LVDS, EX-SDI, and CVBS video outputs, the MC-S189 integrates smoothly into existing systems.

Applications:

• Industrial monitoring
• Security and surveillance
• Traffic and transportation systems
• Public safety monitoring
• Critical infrastructure oversight

Features:

• 1/2" 2MP Sony CMOS Sensor
• 1080p 60/30fps, 1080i 60fps, 720p 60/30fps
• 18x Optical Zoom (6.8–122.4mm) & 32x Digital Zoom
• Variable aperture F1.61–F4.13
• Day & Night (ICR)
• Wide Dynamic Range (WDR)
• Digital Noise Reduction (2D+3D)
• Digital Image Stabilization
• Privacy Mask Function
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocols
• Video Output: LVDS, EX-SDI, CVBS
