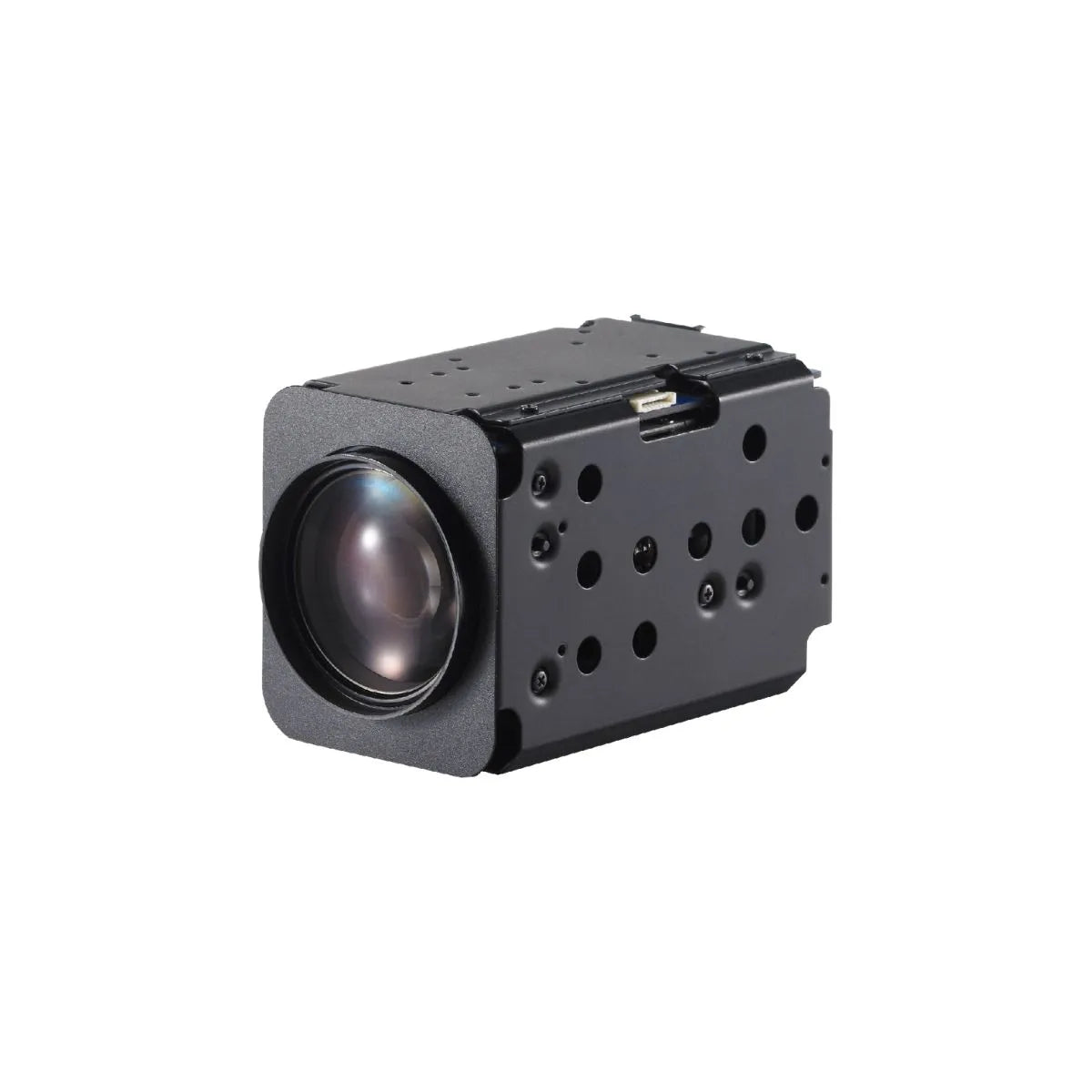

WONWOO MC-S129 2MP High Sensitivity 12x Zoom Module Camera, Sony CMOS, Day/Night, WDR
MC-S129 Spec Sheet
The WONWOO MC-S129 2MP High Sensitivity 12x Zoom Module Camera delivers precision imaging for professional surveillance, security, and industrial applications. Equipped with a 1/2" 2MP Sony CMOS sensor, it provides superior image quality and sensitivity, performing reliably in challenging lighting conditions.
This camera features 12x optical zoom (7–84mm) and 32x digital zoom for capturing fine details and wide-angle views. The variable aperture (F1.5–F1.9) and Day & Night (ICR) function ensure optimal performance in both bright and low-light environments. Real-time True WDR, 2D/3D digital noise reduction, and digital image stabilization maintain clarity under dynamic conditions.
Enhanced situational awareness comes from intelligent motion detection, defog functionality, and privacy masking. Compatible with VISCA, Pelco-D, and Pelco-P protocols, the MC-S129 supports multiple video outputs including LVDS, EX-SDI 1.0/2.0/2.1, and CVBS, making it a flexible solution for modern security and industrial monitoring systems.
Features:
- 1/2" 2MP Sony CMOS sensor
- 1080p 60fps/30fps, 1080i 60fps, 720p 60fps/30fps
- 12x Optical Zoom (7–84mm) and 32x Digital Zoom
- Variable aperture F1.5–F1.9
- Day & Night (ICR) functionality
- Real-time True WDR (DOL)
- Digital noise reduction (2D+3D)
- Digital image stabilization
- Privacy mask function
- Highlight compensation
- Intelligent motion detection
- Defog function
- VISCA, Pelco-D/P protocol support
- Video output: LVDS, EX-SDI 1.0, EX-SDI 2.0, EX-SDI 2.1, CVBS
Applications:
- Security surveillance
- Industrial monitoring
- Traffic and road monitoring
- Critical infrastructure protection
- Law enforcement and public safety
- Airport and port monitoring
- Retail loss prevention
- Building and facility management
