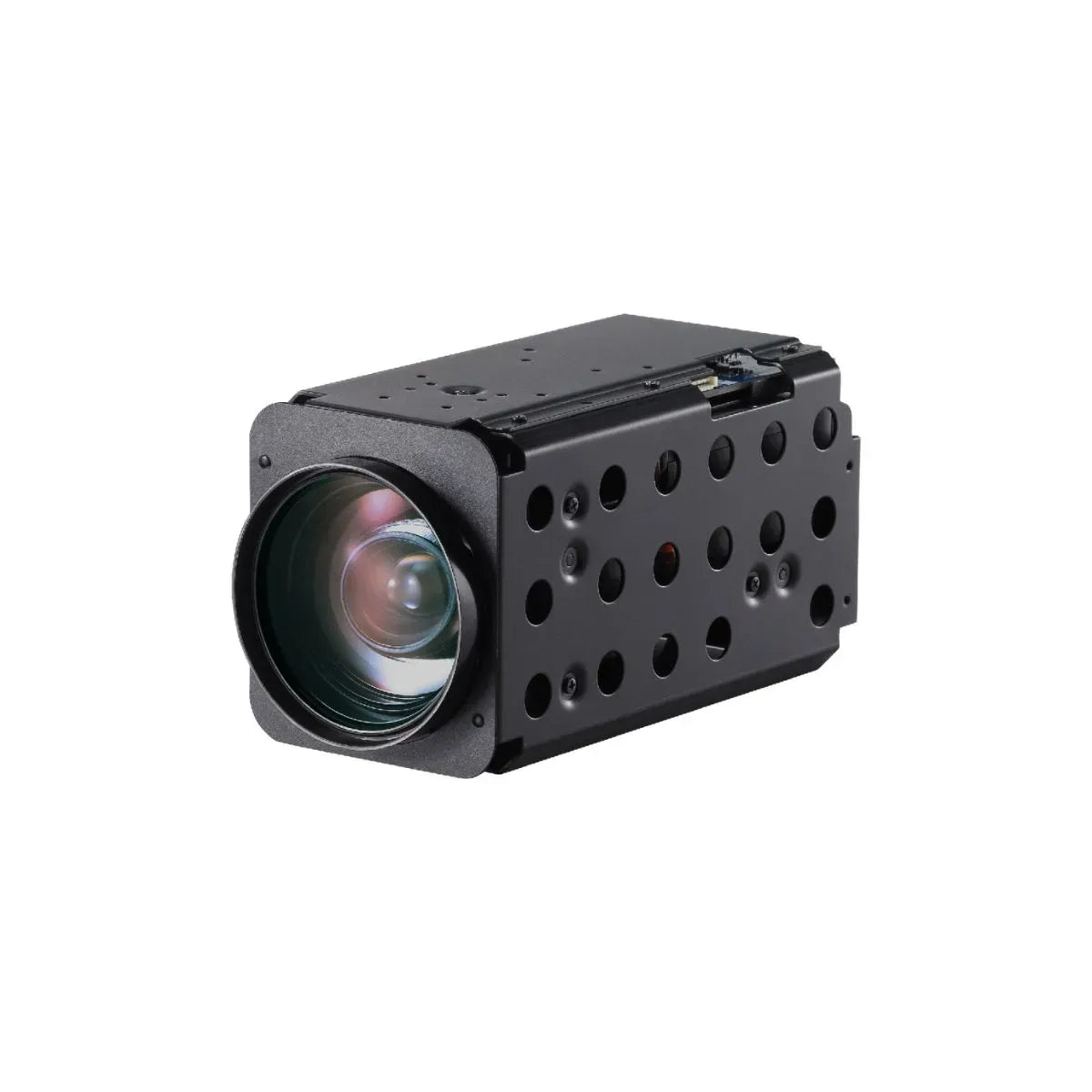

WONWOO MC-G365 36x Global Shutter Zoom Module Camera, Sony CMOS, Day/Night, 1080p/720p

MC-G365 Spec Sheet

The WONWOO MC-G365 Global Shutter 36x Zoom Module Camera delivers high-precision imaging for industrial, security, and broadcast applications. Equipped with a 1/2.3" Sony Global Shutter CMOS sensor, it eliminates rolling shutter distortion and ensures clear, accurate visuals in fast-moving scenes.

Optimized for day and night operation with ICR functionality, the MC-G365 supports 1080p at 60/30fps and 720p at 60/30fps. Its 36x optical zoom (6mm–216mm) and 32x digital zoom capture fine details across expansive areas, while the variable aperture (F1.5–F4.8) adapts to changing lighting conditions.

Advanced image processing includes 2D+3D Digital Noise Reduction, Digital Image Stabilization, Defog function, and Intelligent Motion Detection for reliable performance in challenging environments. Privacy Mask ensures compliance with sensitive area requirements.

Integration is seamless with VISCA, Pelco-D, and Pelco-P protocols, and multiple video outputs including LVDS, EX-SDI, and CVBS. The MC-G365 excels in applications such as industrial monitoring, critical infrastructure security, traffic surveillance, and event broadcasting, delivering exceptional clarity and precision in every scenario.

Features:

• 1/2.3" Sony Global Shutter CMOS sensor
• 1080p 60/30fps, 720p 60/30fps
• 36x Optical Zoom (6mm–216mm) & 32x Digital Zoom
• Variable Aperture F1.5 (wide) – F4.8 (tele)
• Day & Night (ICR) functionality
• 2D+3D Digital Noise Reduction
• Digital Image Stabilization
• Privacy Mask Function
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P protocols
• Video Output: LVDS, EX-SDI, CVBS

Applications:

• Security
• Industrial
• Broadcast
• Traffic
• Surveillance
• Monitoring
