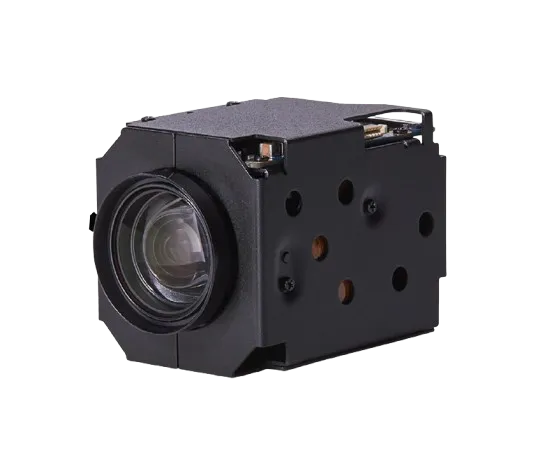

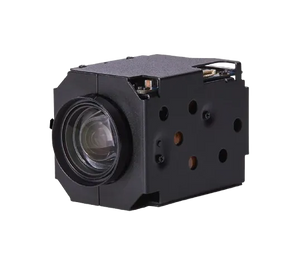

WONWOO MC-G105 Camera Module, 3MP 1080p60, 1/3.1" Sony CMOS, 10x Optical Zoom, LVDS/CVBS Output, VISCA & Pelco Control

MC-G105 Spec Sheet

The WONWOO MC-G105 is a precision-engineered 3MP block camera module designed for professional surveillance, industrial inspection, and robotics vision systems. Featuring a 1/3.1" Sony CMOS global shutter sensor, it delivers sharp HD video at 1080p/60fps and 720p/60fps, with exceptional performance in both bright and low-light conditions. Its Day & Night (ICR) function ensures reliable imaging with minimum illumination of 0.1 lux in color and 0.01 lux in black and white.

Equipped with a 10x optical zoom (4.7–47mm) and 32x digital zoom, the MC-G105 provides precise visual control from wide-angle to telephoto. Advanced features include 2D+3D noise reduction, digital image stabilization, and defog, enabling clear imaging in foggy or challenging environments. With VISCA and Pelco-D/P protocol support and LVDS/CVBS outputs, it integrates seamlessly into complex industrial, traffic monitoring, and security systems. Compact and durable, it operates between -10°C to +50°C and weighs just 165g, making it ideal for diverse professional applications.

Features:

• 1/3.1" 3MP Sony CMOS global shutter sensor
• 10x optical zoom (focal length 4.7–47mm), 32x digital zoom
• HD video: 1080p/60fps, 720p/60fps
• Day & Night (ICR) with 0.1 lux (color), 0.01 lux (B/W)
• 2D+3D noise reduction and digital image stabilization
• Defog capabilities for low-visibility environments
• Privacy masking (8 regions) and motion detection
• VISCA / Pelco-D/P protocol support
• Video output: LVDS, CVBS

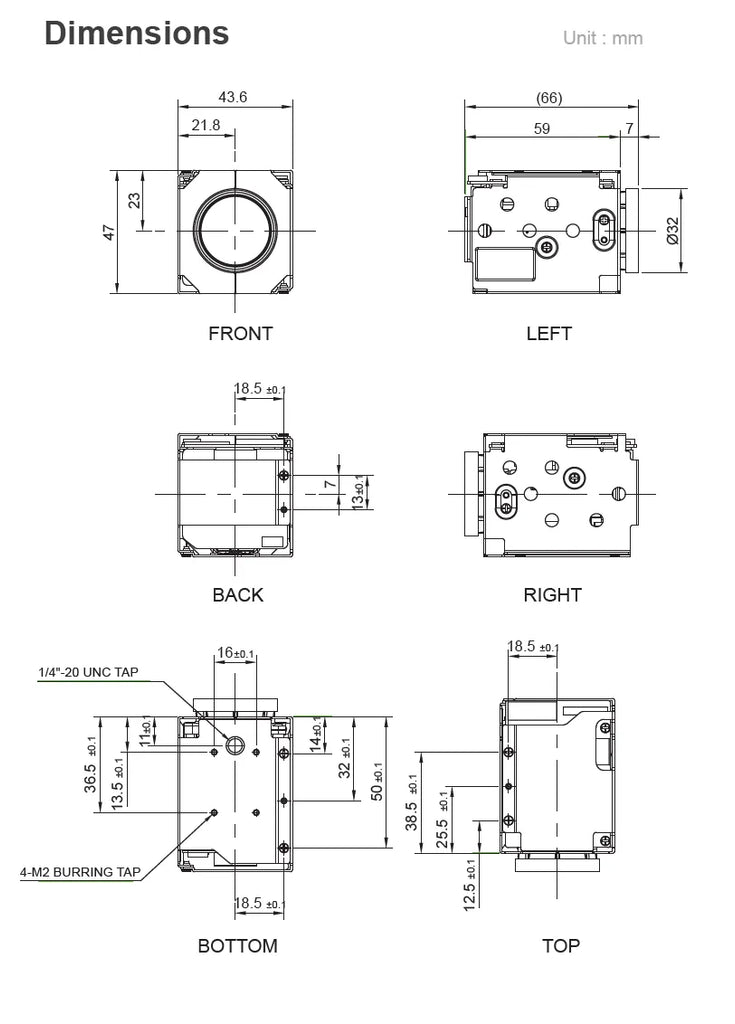

• Compact 43.6 × 47 × 66mm, 165g, operating -10°C to +50°C

Applications:

• Industrial inspection and monitoring
• Professional surveillance and security systems
• Traffic monitoring and license plate recognition
• Robotics and machine vision
• Low-light and remote observation
• Environmental and outdoor monitoring
• Fog and low-visibility imaging
