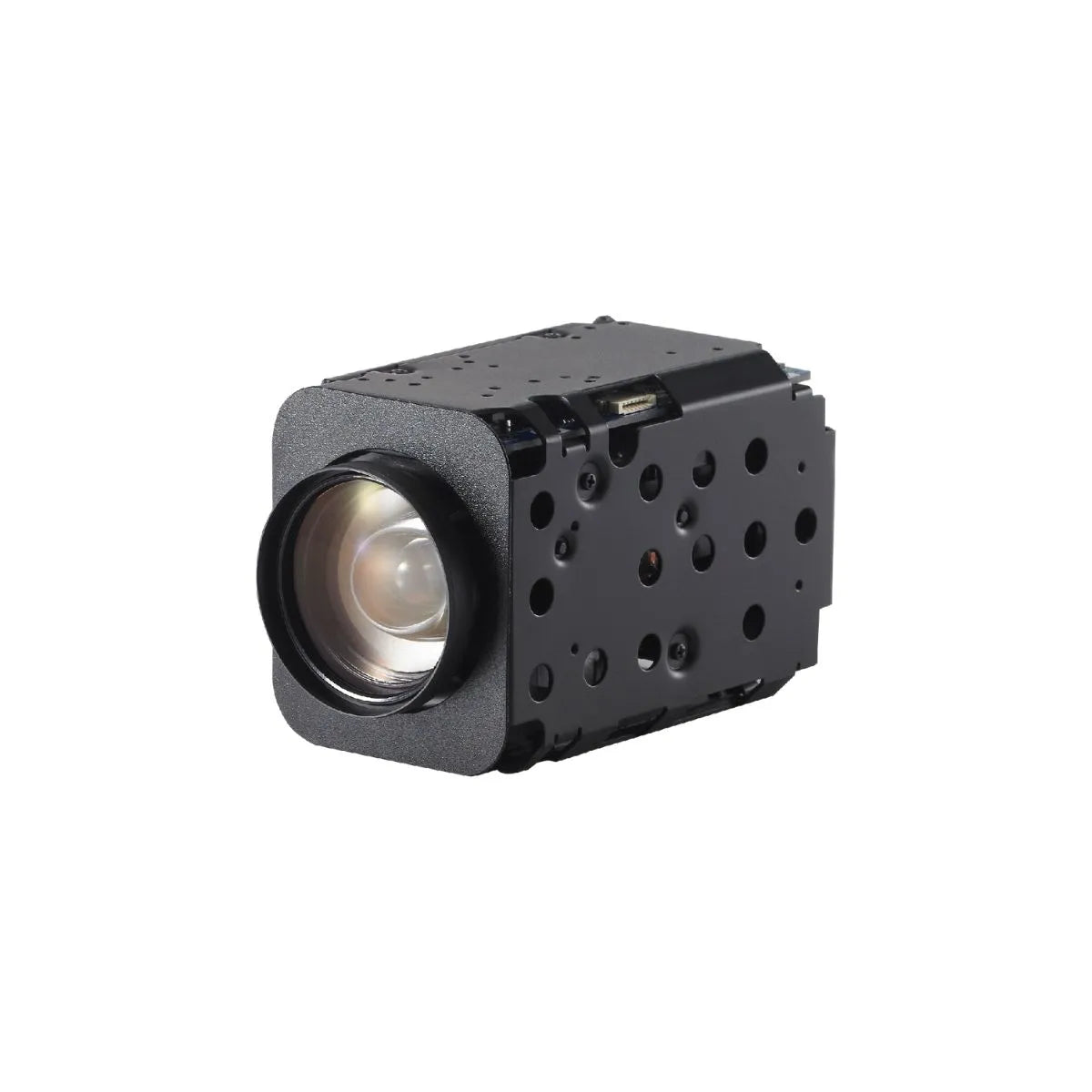

WONWOO MC-209 2MP 20x Zoom Module Camera, 1/2.8" Sony CMOS, Full HD, WDR, Day/Night, LVDS/EX-SDI/CVBS

MC-209 Spec Sheet

The WONWOO MC-209 2MP 20x Zoom Module Camera delivers reliable performance and precision imaging for demanding applications. Built around a 1/2.8" 2MP Sony CMOS sensor, this compact module provides sharp Full HD resolution, superior low-light performance, and seamless Day/Night (ICR) functionality.

With support for 1080p at 60fps/30fps, 1080i at 60fps, and 720p at 60fps/30fps, the MC-209 ensures smooth and adaptable video output across a variety of use cases. Its 20x optical zoom (5.2–104mm) and 32x digital zoom allow operators to capture wide-area coverage as well as fine details without image loss.

Engineered for versatility, the MC-209 integrates Wide Dynamic Range (WDR), 2D+3D Digital Noise Reduction, and Digital Image Stabilization to deliver consistent clarity even in challenging lighting or high-motion conditions. Privacy-sensitive deployments benefit from the built-in Privacy Mask Function, while High Light Compensation and Defog Mode optimize visibility in tough environments.

The module supports VISCA, Pelco-D, and Pelco-P protocols for seamless integration and offers flexible outputs including LVDS, EX-SDI, and CVBS, making it suitable for a wide range of systems.

Features:

• 1/2.8" 2MP Sony CMOS sensor
• Full HD resolutions: 1080p60/30, 1080i60, 720p60/30
• 20x optical zoom (5.2–104mm) + 32x digital zoom
• Day & Night (ICR) with low-light sensitivity
• Wide Dynamic Range (WDR)
• 2D+3D Digital Noise Reduction (DNR)
• Digital Image Stabilization
• Privacy Mask Function
• High Light Compensation & Defog
• Intelligent Motion Detection
• VISCA, Pelco-D/P protocol support
• Video outputs: LVDS, EX-SDI, CVBS

Applications

• Surveillance
• Broadcasting
• Industrial
• Traffic
