Oppila AGX Orin MIPI CSI-2 Bridge Board
AGX Orin MIPI CSI-2 Bridge Board Spec Sheet

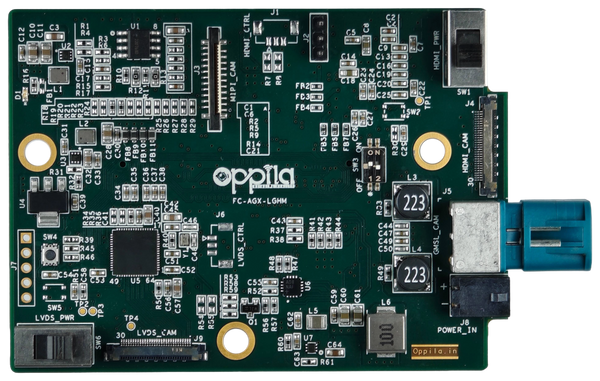

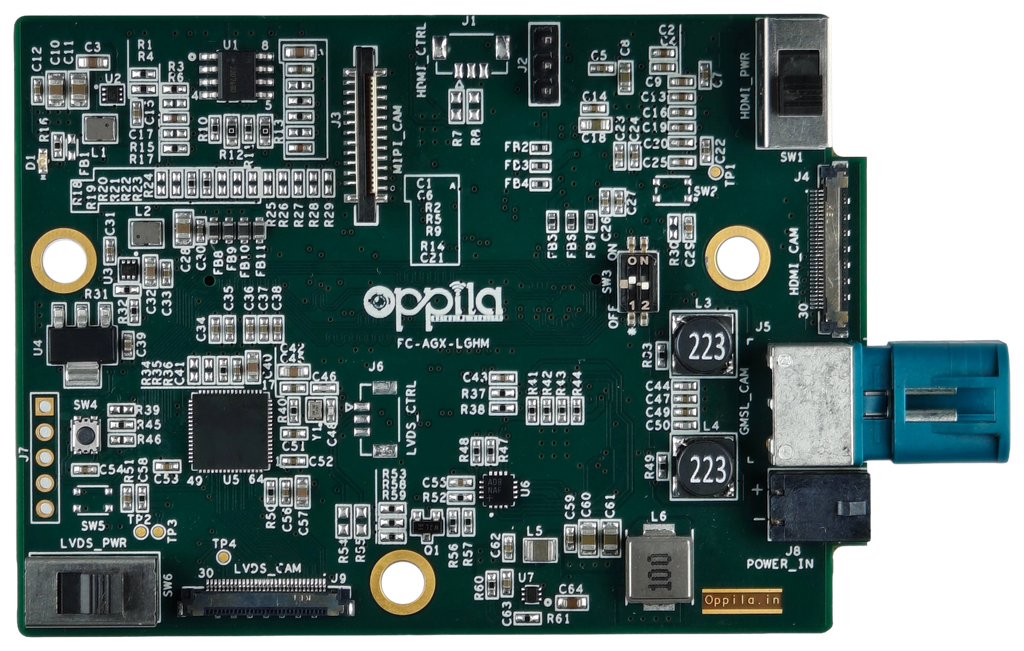

The Oppila AGX Orin MIPI CSI-2 Bridge Board (manufacturer part number FC-AGX-LGHM) connects compatible LVDS, HDMI, dual-channel GMSL3 and native MIPI CSI-2 cameras to the NVIDIA Jetson AGX Orin. Its four camera interface paths connect through a 120-pin camera expansion connector, providing four 4-lane CSI-2 links with 16 lanes in total.
LVDS and HDMI inputs convert camera video to MIPI CSI-2 and provide VISCA control through an I²C-to-UART bridge. The GMSL3 interface combines two camera links, supports Power over Coax and remains backward compatible with GMSL2 cameras. A native 22-pin MIPI CSI-2 connection provides direct sensor pass-through for embedded vision, robotics and industrial imaging projects.
Features:
- LVDS, HDMI, dual-channel GMSL3 and native MIPI CSI-2 interfaces on one board
- Four independent 4-lane CSI-2 host links
- HDMI video up to 4K60 and LVDS video up to 1080p60, depending on the camera
- VISCA camera control over host I²C-to-UART for LVDS and HDMI ports
- Independent camera power switching for LVDS and HDMI interfaces
- GMSL3 Power over Coax support and GMSL2 backward compatibility
- Native 22-pin, 4-lane MIPI CSI-2 pass-through
- 12–24 V DC input with reverse-voltage and transient-voltage protection
Applications:
- Embedded AI and multi-sensor vision
- Robotics and autonomous platforms
- UAV camera payload development
- Industrial inspection and machine vision
- Research, evaluation and rapid prototyping
Technical Specifications:
| Manufacturer part number | FC-AGX-LGHM |
|---|---|
| Supported host | NVIDIA Jetson AGX Orin Developer Kit |

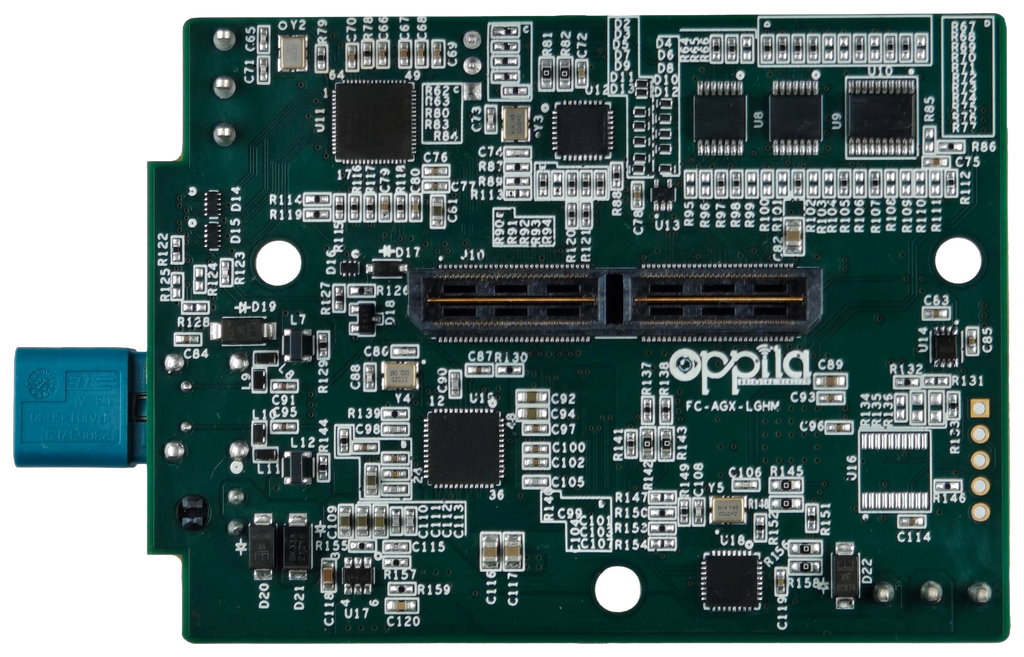

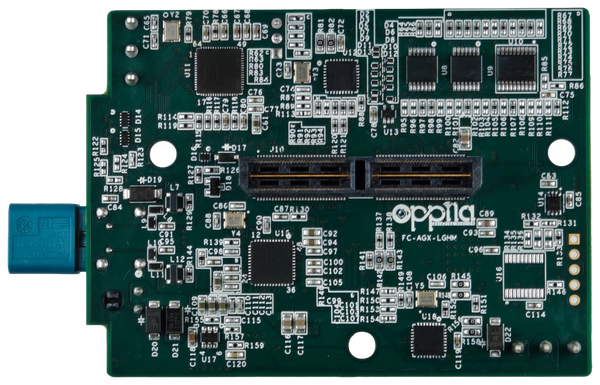

| Host connector | 120-pin Samtec QTH-060 series camera expansion connector |
| Host CSI-2 links | Four 4-lane interfaces; 16 lanes total |
| LVDS input | 30-pin KEL, LVDS single mode; up to 1080p at 60 fps, camera dependent |
| HDMI input | 30-pin KEL, HDMI micro-coax interface; up to 4K at 60 fps, camera dependent |
| GMSL input | Two GMSL3 camera links; GMSL2 backward compatibility; MATE-AX dual coax with breakout cables to FAKRA |
| GMSL output | Two camera links aggregated into one 4-lane MIPI CSI-2 output |
| Native MIPI input | 22-pin FPC; 4-lane MIPI CSI-2 pass-through |
| Camera control | VISCA over 3.3 V CMOS UART bridged to host I²C for LVDS and HDMI; external UART header provision |
| Validated LVDS camera examples | Sony FCB-EV9520L / FCB-EV9500L, Tamron MP3010M-EV, KT&C ATC-HZ5540T-LP |
| Validated HDMI camera examples | Sony FCB-ER9500 / FCB-ER8530 / FCB-EW9500H |
| Input voltage | 12–24 V DC regulated |
| Recommended supply | 12 V / 3 A regulated |
| Power connector | Molex Micro Fit+ 2-pin |
| Electrical protection | Reverse-voltage and transient-voltage protection |
| Dimensions (L × W) | 84.87 × 61.95 mm |
| Weight | 38.4 g |
| Operating temperature | –20°C to +85°C |
| Power indicator | Green LED |
| Listed compliance | MIPI CSI-2 specification; RoHS |
Camera compatibility and combined video throughput depend on the selected cameras and system configuration. Please include your camera models and Jetson software version when requesting a quote.
