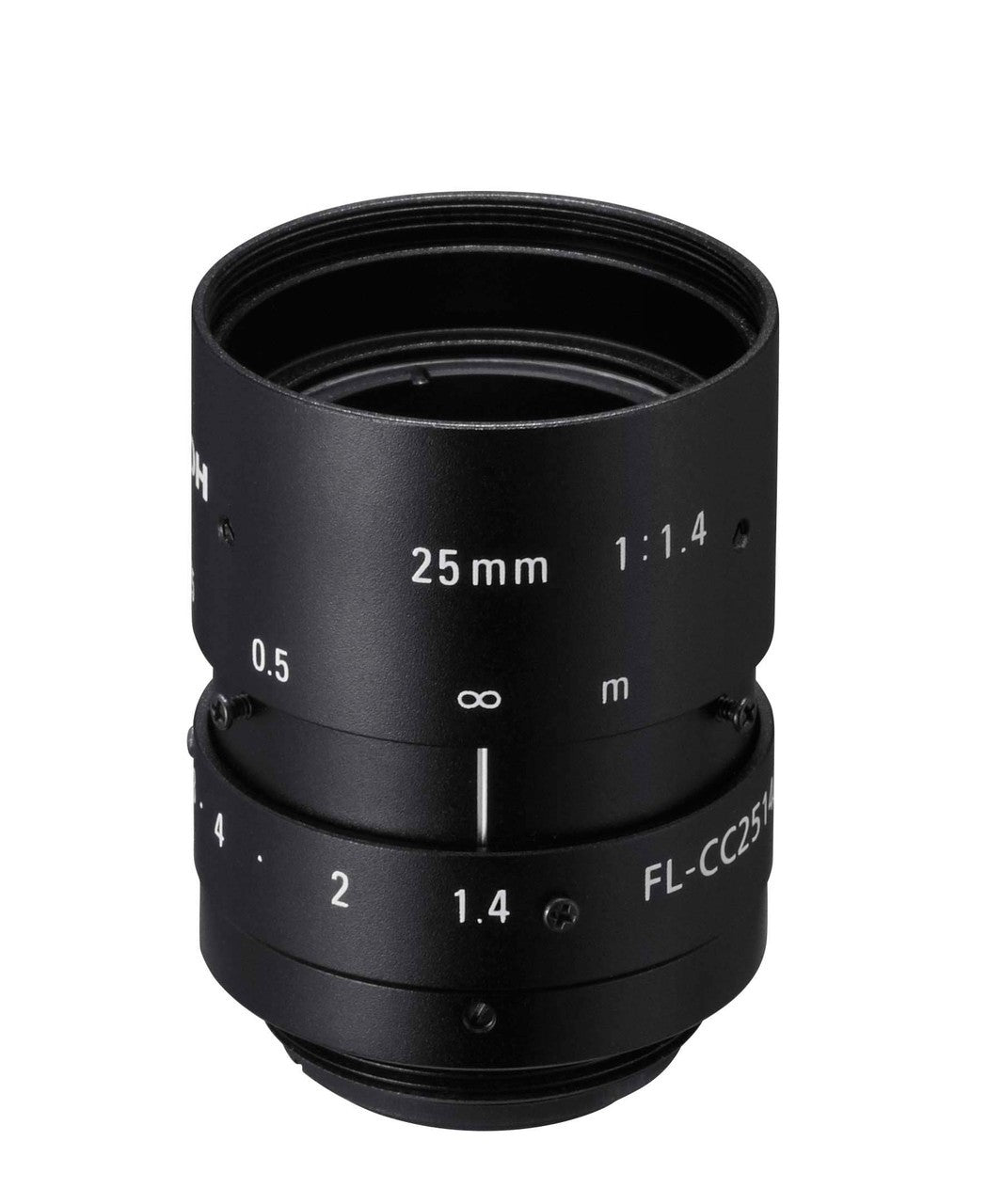

Ricoh FL-CC2514A-2M Lens
Regular price
$284.00
Shipping calculated at checkout.
With its 25mm focal length the Ricoh’s high performance lens is perfect for up close imaging with it’s 2 MP CCD and CMOS sensors giving it a high resolution crisp image even at super close range and even handles vibration and tough environments with ease. These features make it excellent for machine vision uses and applications such as chip mounters, wafers, electronic substrates, etc.
--
Weighing a feather light 63 grams with focus and lock screws this is the perfect lens for the toughest inspection, machine vision and industrial uses.
Free shipping within the US. One (1) year warranty.
Formate Size | 2/3" |
Focal Length | 25mm |
Max. Aperture Ratio | 1:1.4 |
Iris Range | 1.4~16 |
Mount | C |
HAV 1/3" Format | 10.7° |
HAV 1/2" Format | 14.2° |
HAV 1/1.8" Format | 16.0° |
HAV 2/3" Format | 19.5° |
Minimum Object Distance | 0.1 m |
Filter Size | 30.5 P=0.5 mm |
Back focal length | 12.1 mm |
Dimensions | φ32.0×38.0 mm |
Weight | 63 g |
Remarks | Focus and Iris lock screws |
