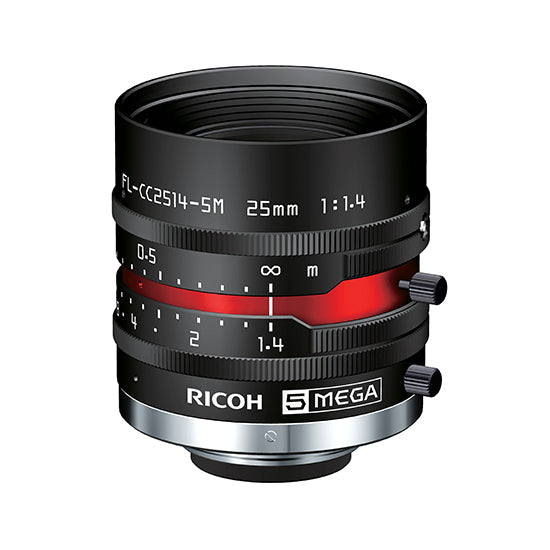

Ricoh FL-CC2514-5M Lens
Regular price
$940.00
Shipping calculated at checkout.
The Ricoh FL-CC2514-5M format sizes range between 1/3, 1/2, 1/1.8 and 2/3” with a minimum object distance of 0.1m with the highest edge to edge resolution of any 5 MP lens it is the perfect match for any inspection, industrial or machine vision applications that require a close up highly detailed camera lens to capture even the smallest aberrations for businesses that need to be precise for success.
--
The largest focal length of the 5 Mega-Pixel Lens series is the FL-CC2514-5M with a 25 mm focal length with the smallest dimensions and sizes of 130 grams and φ43×44 mm for what it’s got packed inside.
Free shipping within the US. One (1) year warranty.
| Formate Size | 2/3, 1/1.8, 1/2, 1/3" |
| Focal Length | 25 mm |
| Max. Aperture Ratio | 1 : 1.4 |
| Iris Range | 1.4～16 |
| Mount | C |
| HAV 1/3" Format | 11.0° |
| HAV 1/2" Format | 14.6° |
| HAV 1/1.8" Format | 16.4° |
| HAV 2/3" Format | 19.9° |
| Minimum Object Distance | 0.1 m |
| Filter Size | 40.5 P=0.5mm |
| Dimensions | φ43mm x 44mm |
| Weight | 130 g |
| Remarks | Focus & Iris lock screws |
