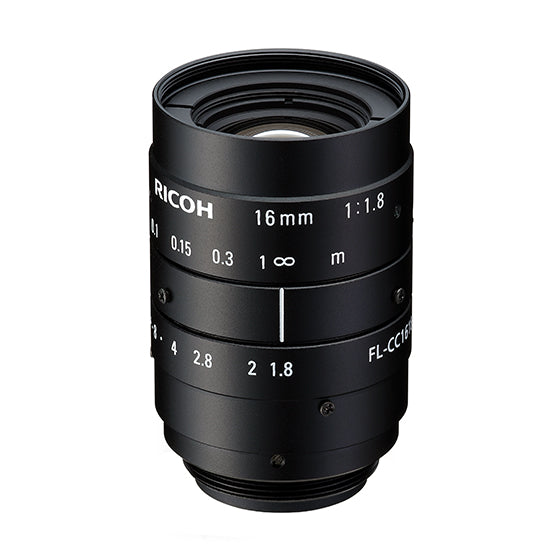

Ricoh FL-CC1618-5MX Lens
With an amazingly clear resolution from edge to edge the 5-megapixel Ricoh FL-CC1618-5MX Manual Iris Lens is a perfect fit for applications in machine vision and inspection of wafers and electronic boards as well as chip and board mounting or checking for missing pixels in LCD monitors, OEL monitor surface inspection/metal parts, hairline cracks, making detailed inspections of shapes, food and pharmaceuticals visual sensors, etc.
--
Its eye for detail the Ricoh FL-CC1618-5MX is second to none everything is crisp and sharp with almost no optical distortion or vibration in the image and a focus and iris lock screw to dial it in perfectly. With an 16mm focal length and a light weight of only 80 grams!
Free shipping within the US. One (1) year warranty.
| Formate Size | 2/3" |
| Focal Length | 16mm |
| Max. Aperture Ratio | 1 : 1.8 |
| Iris Range | 1.8～16 |
| Mount | C |
| HAV 1/3" Format | 17.1° |
| HAV 1/2" Format | 22.7° |
| HAV 2/3" Format | 30.9° |
| HAV 1/1.8" Format | 25.4° |
| Minimum Object Distance | 0.1m |
| Filter Size | 30.5 P=0.5mm |
| Dimensions | φ33×47mm |
| Weight | 80 g |
| Remarks | Focus & Iris lock screws |
