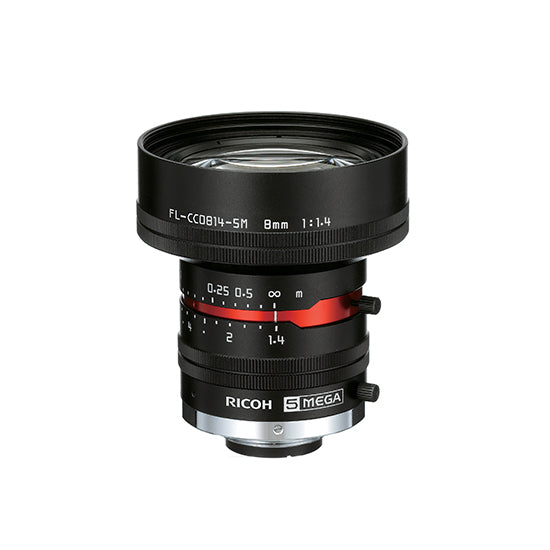

Ricoh FL-CC0814-5M Lens
Regular price
$1,390.00
Shipping calculated at checkout.
The FL-CC0814-5M-AVP is part of a top of the line series of lenses for industrial and machine vision applications that require great depth and detail with edge to edge HD such as wafer inspection, chip mounting, computer board mounting and other fine detail inspection or manufacture jobs.
--
The smallest in terms of focal length (8 mm) close up in the 5 Mega-Pixel series but certainly not the weakest of the bunch the FL-CC0814-5M offers format sizes range between 1/3, 1/2, 1/1.8 and 2/3” with a minimum object distance of 0.1m.
Free shipping within the US. One (1) year warranty.
| Formate Size | 2/3, 1/1.8, 1/2, 1/3" |
| Focal Length | 8 mm |
| Max. Aperture Ratio | 1 : 1.4 |
| Iris Range | 1.4～16 |
| Mount | C |
| HAV 1/3" Format | 32.9° |
| HAV 1/2" Format | 43.2° |
| HAV 1/1.8" Format | 48.2° |
| HAV 2/3" Format | 57.8° |
| Minimum Object Distance | 0.1 m |
| Filter Size | 58 P=0.75 mm |
| Dimensions | φ60.8×64 mm |
| Weight | 260 g |
| Remarks | Focus & Iris lock screws |
