Ricoh FL-CC0418DX-VG
Regular price
$392.00
Shipping calculated at checkout.
Used in an wide variety of applications including pattern matching, component positioning, missing-part inspection, board mounting, and inspection of pharmaceuticals, produce, and grains, the FL-CC0418DX-VG-AVP fixed focal length lens with locking screws for C and CS-mount cameras and a 4.8 mm focal length.
--
With a light weight of 105 grams or in other words an ultra light 0.231485 lbs. it can be used in a variety of climates and conditions and situations. Both iris type and focus control are controlled manually and features a vibration-control measure to reduce blur and and motion vibration in factory and inspection applications.
Free shipping within the US. One (1) year warranty.
| Format Size | 2/3, 1/2, 1/3" format |
| Focal Length | 4.8 mm |
| Maximum Aperture Ratio | 1:1.8 |
| Iris Range | 1.8-Close |
| Mount | C |
| HAV 1/4" Format | 41.7° |
| HAV 1/3" Format | 55.1° |
| HAV 1/2" Format | 72.4° |
| HAV 2/3" Format | 96.4° |
| Minimum Object Distance | 0.3 m |
| Back Focal Length | 9.71 mm |

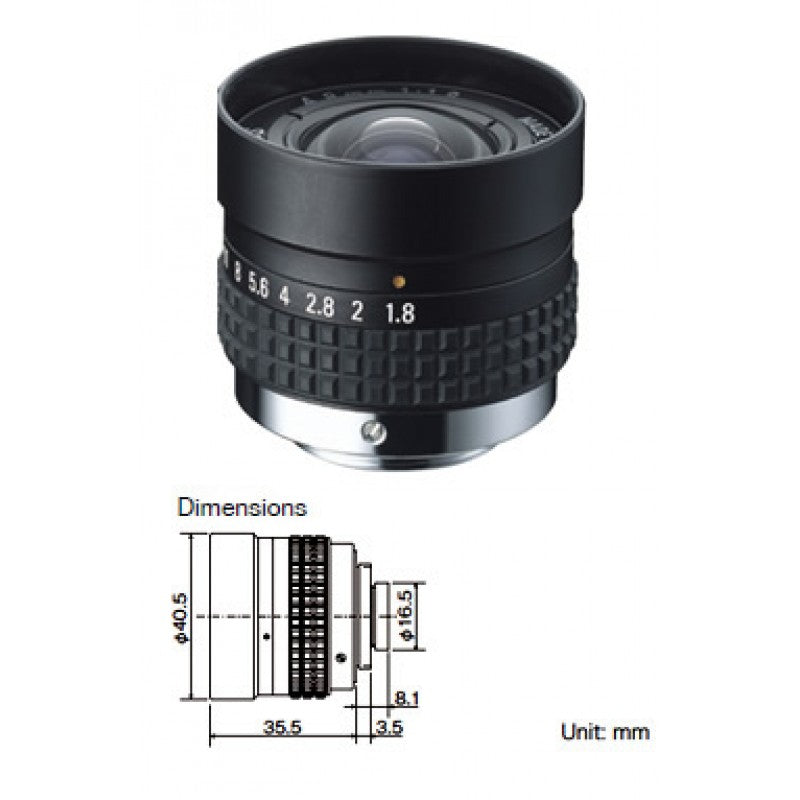

| Dimensions | φ40.5x35.5 mm |
| Weight | 105 g |
| Remarks | Iris lock screws, Fixed focus |
