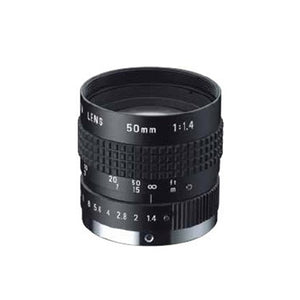

Ricoh FL-BC5014A-VG Lens
Regular price
$298.00
Shipping calculated at checkout.
With a fine tuned ability to spot the little differences and work under moving or vibrating conditions, the FL-BC5014A-VG-AVP lens is literally made for applications such as pattern matching, component positioning, missing-part inspection, board mounting, inspection of pharmaceuticals, produce inspection, grain inspection, etc.
--
Compatible with VGA-class cameras and production line handling cameras with 1/2 to 1” formats. Small dimension sizes of 48 x 48mm and only 180 grams this light as a feather workhorse is perfect the above applications and much more.
Free shipping within the US. One (1) year warranty.
| Format Size | 1, 2/3, 1/2, 1/3" |
| Focal Length | 50 mm |
| Maximum Aperture Ratio | 1:1.4 |
| Iris Range | 1.4-Close |
| Mount | C |
| HAV 1/4" Format | 4.1° |
| HAV 1/3" Format | 5.5° |
| HAV 1/2" Format | 7.3° |
| HAV 2/3" Format | 10.0° |
| HAV 1" Format | 14.4° |
| Minimum Object Distance | 1.0 m |
| Back Focal Length | 18.05 mm |
| Filter Size | 46 P=0.75 mm |
| Dimensions | φ48x48 mm |
| Weight | 180 g |
| Remarks | Focus & Iris lock screws |
