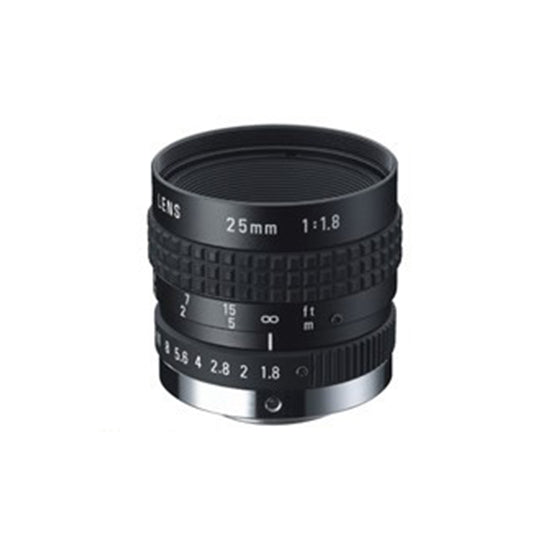

Ricoh FL-BC2518-VG Lens
Regular price
$278.00
Shipping calculated at checkout.
Widely used in a variety of applications including pattern matching, component positioning, missing-part inspection, board mounting, and inspection of pharmaceuticals, produce, and grains, the FL-BC2518-VG-AVP fixed focal length lens with locking screws for C-mount cameras and a 25 mm focal length.
--
With a temperature range of -20°C to +50°C and a light weight of 87 grams it can be used in a variety of climates and conditions and situations. Both iris type and focus control are controlled manually and features a vibration-control measure to reduce blur and and motion vibration in factory and inspection applications.
Free shipping within the US. One (1) year warranty.
| Format size | 1, 2/3, 1/2, 1/3" format |
| Focal length | 25 mm |
| Maximum aperture ratio | 1:1.8 |
| Iris range | 1.8-Close |
| Mount | C |
| Horizontal Angle of View - 1/4" format | 8.2° |
| Horizontal Angle of View - 1/3" format | 11.0° |
| Horizontal Angle of View - 1/2" format | 14.6° |
| Horizontal Angle of View - 2/3" format | 19.9° |
| Horizontal Angle of View - 1" format | 28.2° |
| Minimum object distance | 0.6 m |
| Back focal length | 15.80 mm |
| Filter size | 40.5 P=0.5 mm |
| Dimensions | φ42x40 mm |
| Weight | 87 g |
| Remarks | Focus & Iris lock screws |
