Ricoh FL-BC2514D-VG Lens
Regular price
$281.00
Shipping calculated at checkout.
Widely used in a variety of applications including pattern matching, component positioning, missing-part inspection, board mounting, and inspection of pharmaceuticals, produce, and grains, the FL-BC2514D-VG-AVP fixed focal length lens with locking screws for C-mount cameras and a 25 mm focal length.
--
With a light weight of 76 grams it can be used in a variety of climates and conditions and situations. Both iris type and focus control are controlled manually and features a vibration-control measure to reduce blur and and motion vibration in factory and inspection applications.
Free shipping within the US. One (1) year warranty.
| Format size | 1, 2/3, 1/2, 1/3" format |
| Focal length | 25 mm |
| Maximum aperture ratio | 1:1.4 |
| Iris range | 1.4-22 |
| Mount | C |
| Horizontal Angle of View - 1/4" format | 8.2° |
| Horizontal Angle of View - 1/3" format | 11.0° |
| Horizontal Angle of View - 1/2" format | 14.6° |
| Horizontal Angle of View - 2/3" format | 20.1° |
| Horizontal Angle of View - 1" format | 29.0° |
| Minimum object distance | 0.3 m |
| Back focal length | 14.98 mm |
| Filter size | 27 P=0.5 mm |

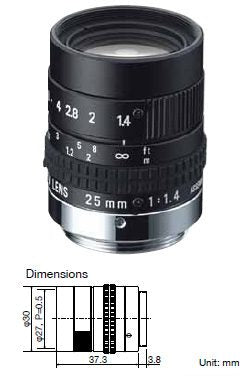

| Dimensions | φ30x37.3 mm |
| Weight | 76 g |
| Remarks | Focus & Iris lock screws |
