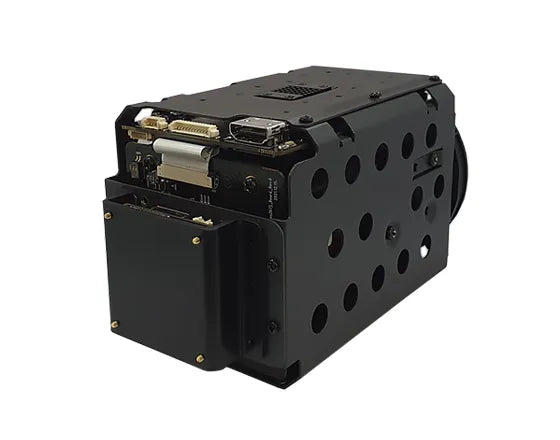

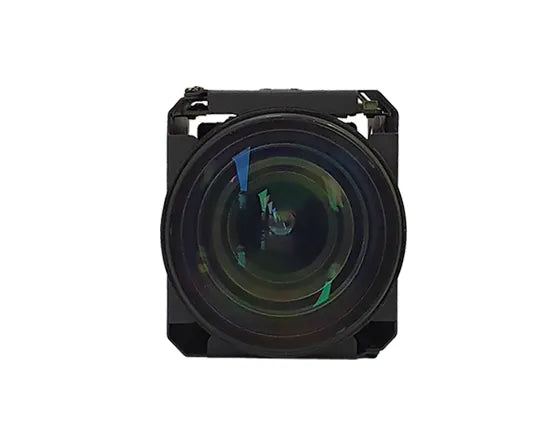

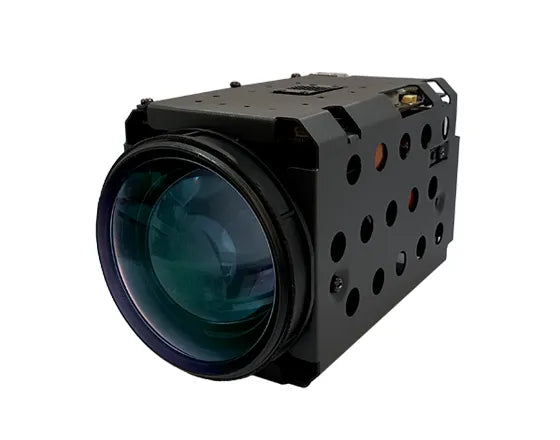

KT&C ATC-UZ5707U 4K UHD Global Shutter Block Camera 1" CMOS 7x Optical Zoom LVDS CVBS Output

ATC-UZ5707U Spec Sheet

The KT&C ATC-UZ5707U is a 4K UHD global shutter block camera designed for high accuracy imaging. It features a 1 inch progressive scan CMOS sensor and outputs 4K at 30 or 25 frames per second. The global shutter eliminates rolling distortion in high motion environments. A 7x optical zoom with 12x digital zoom provides flexible coverage from wide to close-up detail. Imaging performance is enhanced with True WDR, 3D noise reduction, defog, P Iris and mechanical day and night switching.

The camera supports LVDS and CVBS outputs with dual MIPI CSI 2 interfaces. Control is available through RS232 TTL using VISCA Pelco D Pelco C and Hitachi protocols. Compact design with DC power input allows integration into a wide range of surveillance and industrial systems.

Features:

• 1 inch progressive scan CMOS global shutter sensor
• 4K UHD 30fps and 25fps video output
• 7x optical zoom plus 12x digital zoom total 84x AF
• Global shutter distortion free capture
• True WDR 3D DNR defog P Iris
• Mechanical day and night switching
• LVDS and CVBS outputs
• Dual MIPI CSI 2 four lane interfaces
• RS232 TTL control VISCA Pelco Hitachi
• Compact block camera with DC power

Applications:

• Traffic monitoring and license plate recognition
• Law enforcement and evidence capture
• Industrial inspection and process monitoring
• Security and perimeter surveillance
• Retail and commercial loss prevention
• Healthcare facility monitoring
• Event and conference video capture
• Infrastructure and critical site protection
• Residential and commercial property security
