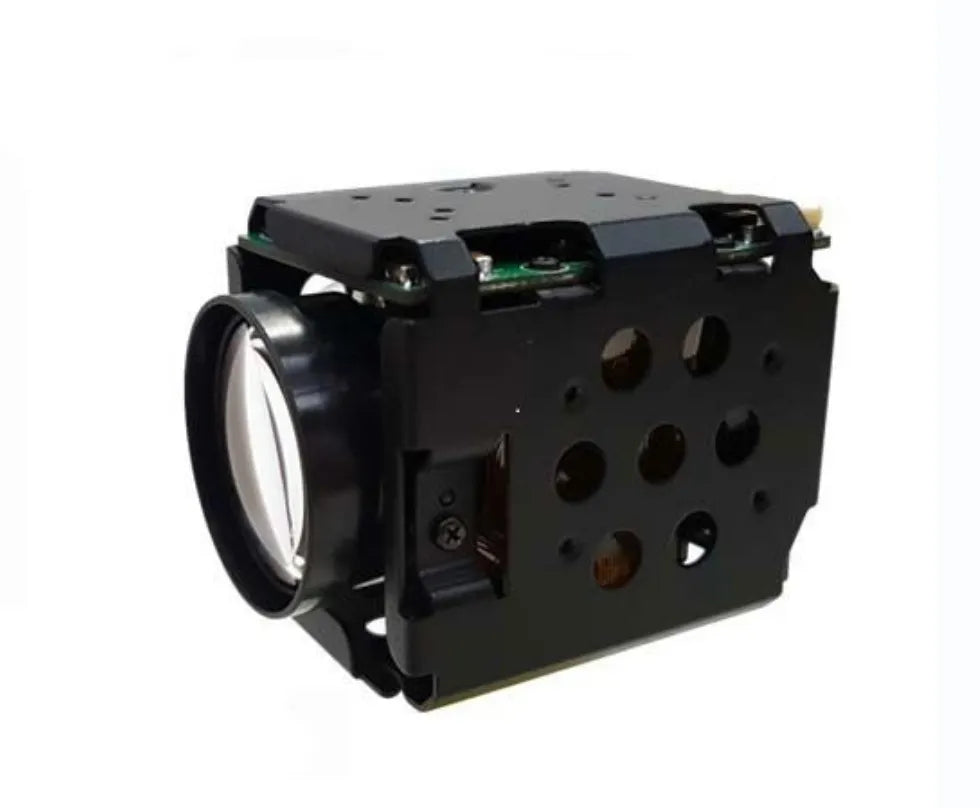

KT&C ATC-HZ8340T-LTA 2.3MP 1080P60 Global Shutter PTZ Block Camera, 40x Optical Zoom, True WDR

ATC-HZ8340T-LTA Spec Sheet

The KT&C ATC-HZ8340T-LTA is a high-performance PTZ surveillance camera engineered for professional security applications. Equipped with a 1/2.6" Progressive Scan Global Shutter CMOS sensor, it delivers 2.3MP (1920x1200) resolution with 1080p60 HD video, capturing clear and detailed images in dynamic environments.

Featuring a 480x AF Zoom lens with 40x optical and 12x digital zoom, this camera provides precision close-ups even at a minimum working distance of 0.01m. Advanced imaging technologies including True WDR, 2D/3D DNR, and Defog ensure superior performance in challenging lighting conditions, while mechanical Day/Night switching automatically adjusts for optimal color and B&W imaging.

With multi-format video output (HD-SDI, EX-SDI, CVBS, TVI, AVI, LVDS) and RS232-TTL control (Pelco-D/P/C, VISCA), the ATC-HZ8340T-LTA integrates seamlessly into existing security systems. Additional features include 192 programmable presets, motion detection across four zones, image stabilization, adjustable brightness, and a compact, energy-efficient design suitable for a wide range of environments.

Features:

• 1/2.6" Progressive Scan CMOS Sensor: High-resolution imaging with minimal distortion in varying light.
• 1080p60 HD Output: Crisp, detailed visuals for surveillance and monitoring.
• Global Shutter Technology: Eliminates rolling shutter artifacts for accurate imaging of fast-moving objects.
• 40x Optical / 12x Digital Zoom: Enables precise monitoring from broad overviews to detailed inspections.
• True WDR & Defog: Maintains clear image quality under high contrast or foggy conditions.
• 2D/3D Digital Noise Reduction: Reduces visual noise in low-light scenarios.
• Mechanical Day/Night Mode: Automatic color-to-B&W switching for 24/7 monitoring.
• RS232-TTL VISCA / Pelco-D/P/C Control: Easy integration with professional surveillance setups.
• Flexible Power Options: DC12V ±10% or PoE for versatile installation.
• Compact & Lightweight Design: 126mm diameter × 113mm height; 1.05kg (2.31lbs).

Applications:

• Commercial & Residential Security
• Traffic Surveillance
• Public Safety & Municipal Monitoring
• Retail Loss Prevention
• Industrial Operations
