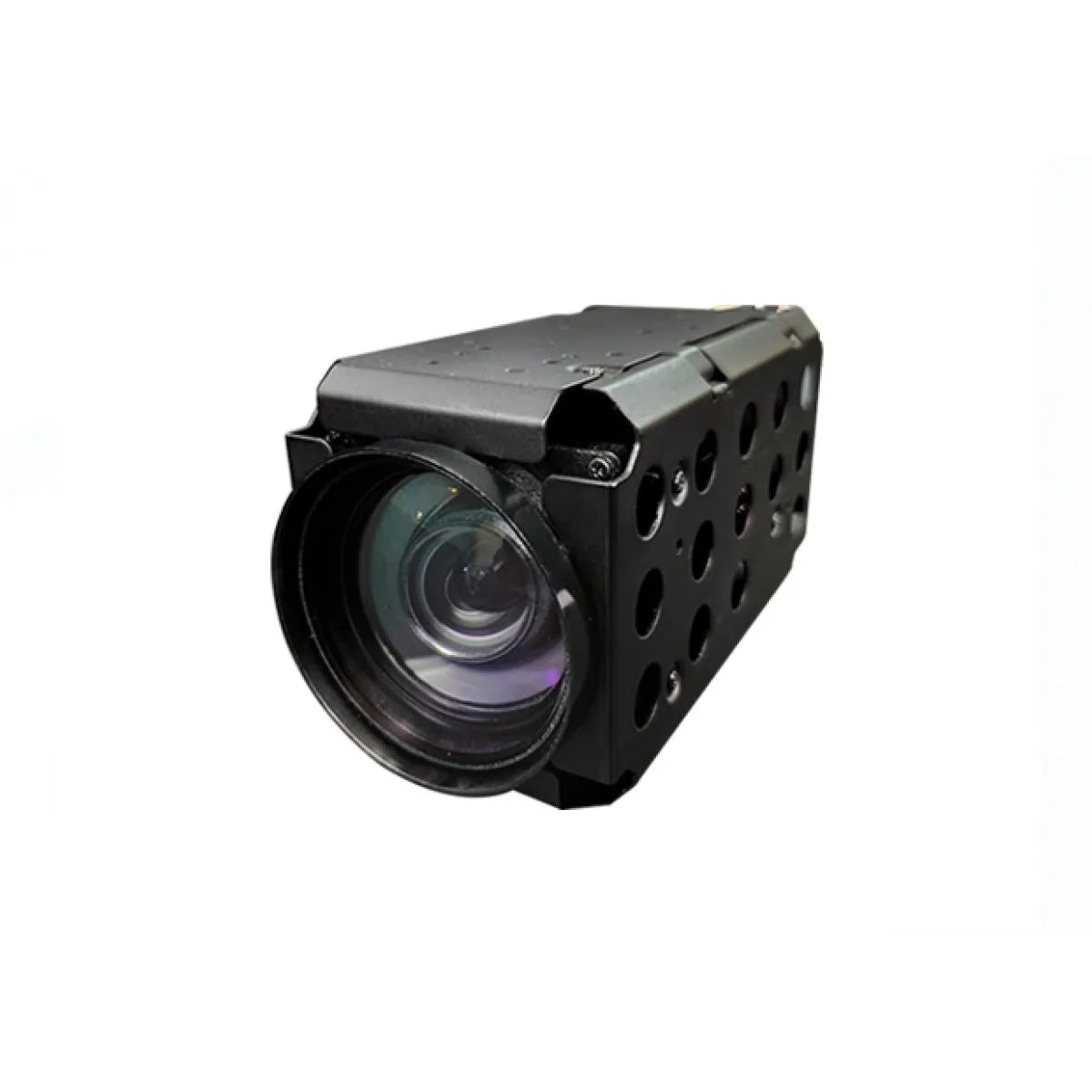

KT&C ATC-HZ8330T-LTA 2.3MP 1080P60 Global Shutter Block Camera, 1/2.6" CMOS, 30x Optical Zoom, HD-SDI/LVDS/CVBS

ATC-HZ8330T-LTA Spec Sheet

The KT&C ATC-HZ8330T-LTA is a professional-grade global shutter block camera engineered for high-speed, distortion-free imaging in demanding surveillance and industrial applications. Featuring a 1/2.6" progressive scan CMOS sensor with 2.3MP resolution (1920x1200), it delivers crisp 1080P60 full HD video with exceptional clarity, even in low-light environments.

Equipped with a 30x optical zoom lens (4.3mm–129mm), the ATC-HZ8330T-LTA allows operators to capture both wide-area coverage and detailed close-ups. Its global shutter technology eliminates rolling shutter artifacts, making it ideal for high-motion environments such as traffic, aerial, and industrial monitoring.

With versatile video output options including HD-SDI, EX-SDI, CVBS, TVI, AVI, and LVDS, the camera integrates seamlessly with a wide range of systems. Control is supported through RS-485 protocols (Pelco-D/P, VISCA), while its compact design and DC12V power enable flexible deployment across surveillance, UAV, and security platforms.

Features:

• 1/2.6" Global Shutter CMOS Sensor – High-speed imaging with distortion-free results.
• 2.3MP Full HD 1080P60 Output – Clear, detailed video for professional surveillance.
• 30x Optical Zoom (4.3–129mm) – Wide-to-telephoto versatility with IR correction.
• Global Shutter Technology – Eliminates rolling shutter artifacts in motion scenes.
• Multi-Format Outputs – HD-SDI, EX-SDI, LVDS, CVBS, TVI, AVI compatibility.
• Advanced Low-Light Performance – 0.2Lux (night mode) with IR-cut filter.
• Flexible Control Options – RS-485 (Pelco-D/P, VISCA) with on-screen display menu.
• Compact, Rugged Design – Reliable performance in critical monitoring setups.
• Wide Power Range – DC12V (±10%) for stable operation in varied environments.

Applications:

• Traffic Monitoring
• Border & Perimeter Security
• Industrial Inspection
• UAV & Aerial Surveillance
• Critical Infrastructure
• Public Safety
