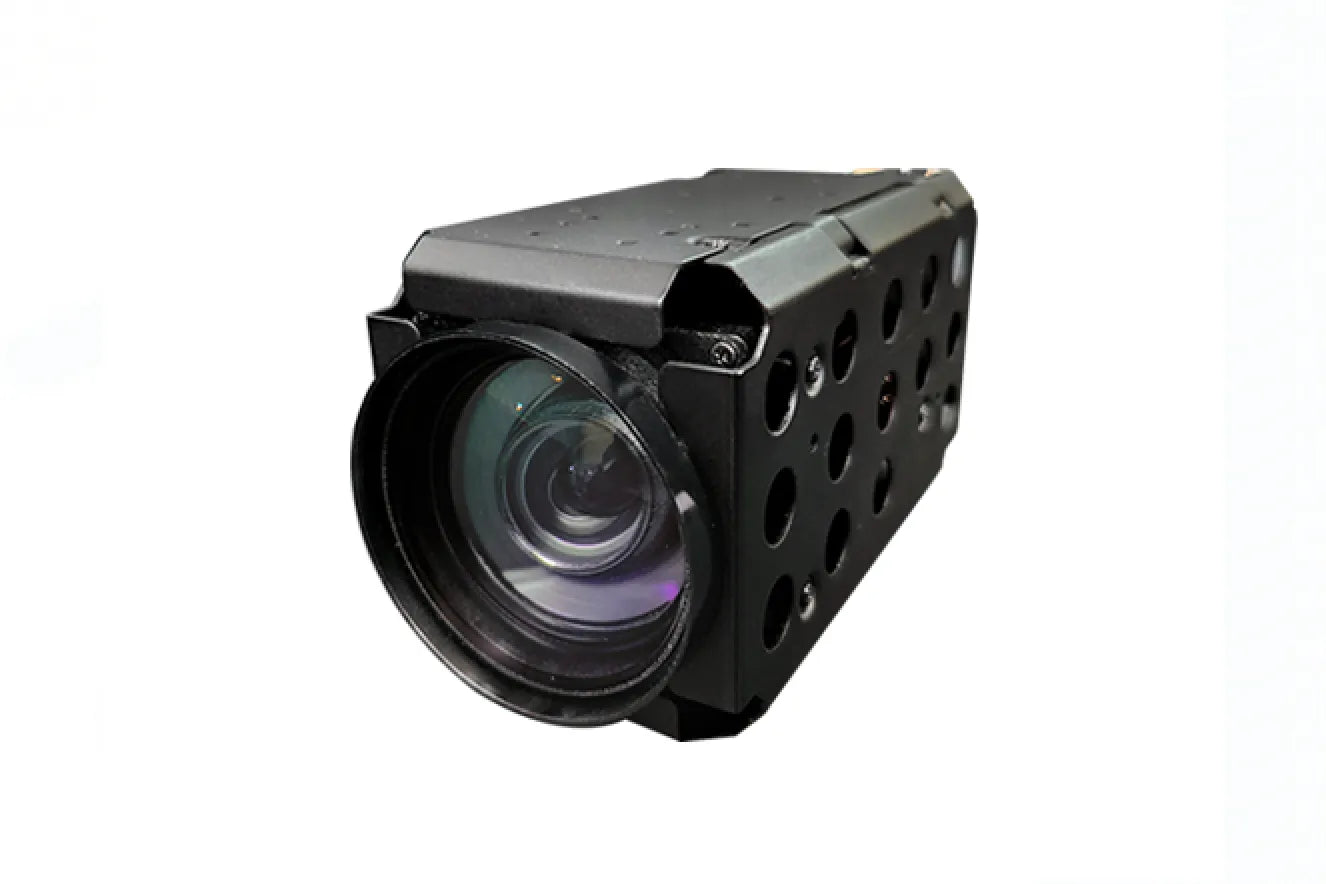

KT&C ATC-HZ8230T-LTN 1080P60 HD 30x Optical Zoom Rolling Shutter Block Camera, 1/2.8” 2.13M SONY STARVIS CMOS
Applied Vision Products

KT&C ATC-HZ8230T-LTN 1080P60 HD 30x Optical Zoom Rolling Shutter Block Camera, 1/2.8” 2.13M SONY STARVIS CMOS

$0.00 $0.00
Shipping calculated at checkout.

The KT&C ATC-HZ8230T-LTN is a high-performance 1080P60 HD surveillance camera engineered for precision imaging in demanding environments. Featuring a 1/2.8” 2.13M SONY STARVIS CMOS sensor, this camera delivers exceptional clarity with 1945(H) x 1097(V) resolution and ultra-sensitive 2.9µm x 2.9µm pixel size for superior low-light performance.

Designed for flexible deployment, it supports multiple output formats including LVDS, HD-SDI, CVBS, EX-SDI, AVI, and TVI, making it compatible with a wide range of systems. The 30x optical zoom with 12x digital zoom (360x total) provides precise focus on distant targets, while advanced features like digital slow shutter, auto/manual exposure, 3D noise reduction, and digital image stabilization ensure clear imaging under any lighting condition. Compact and efficient, the camera operates at DC 12V with minimal power consumption. Its robust build guarantees reliability in indoor and outdoor surveillance applications.

Features:

  • 1/2.8” 2.13M SONY STARVIS CMOS Sensor – High-definition imaging with excellent low-light sensitivity.
  • 30x Optical Zoom + 12x Digital Zoom (360x Total) – Capture distant objects with precision.
  • Wide Dynamic Range (WDR) – Maintains detail in bright and dark areas.
  • F1.6 Aperture – Enhances performance in low-light conditions.
  • 3D/2D Noise Reduction (NR) – Minimizes visual noise for clean images.
  • Multiple Digital Output Formats – HD-SDI, EX-SDI (V1.0–V3.0), LVDS, CVBS, AVI, and TVI.
  • 1080p/60 Resolution Support – Smooth, high-definition video.
  • Infrared (IR) Cut-Filter – Automatic day/night switching.
  • Privacy Zone Masking – Protect sensitive areas with up to 8 customizable zones.
  • Motion Detection & Alerts – Automated response to movement.
  • Customizable On-Screen Titles – Up to 21 lines via VISCA protocol.
  • 256 Zoom/Focus Presets – Instant recall for common surveillance targets.
  • Digital Image Stabilizer – Reduces blurring from camera vibration.

Applications:

  • Surveillance
  • Security
  • Industrial Monitoring
  • Data Capture & Inspections
  • Video Presentation & Broadcasting
  • Speed Dome Integration
