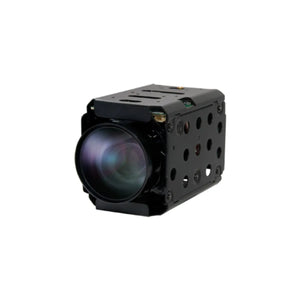

KT&C ATC-HZ7830T-LTN 1080P60 HD Global Shutter Block Camera with 360x Zoom, 1/2.8" Sony EXMOR CMOS, True WDR & 3D DNR
The KT&C ATC-HZ7830T-LTN is a high-performance 1080P60 IP surveillance camera designed for professional security applications. Equipped with a 1/2.8” Sony EXMOR CMOS sensor, it delivers crisp, high-definition imagery at 60/50fps. Its 360x zoom capability combines 30x optical and 12x digital zoom, allowing precise monitoring of distant subjects. Advanced True WDR ensures balanced exposure in high-contrast scenes, while 3D DNR reduces noise for cleaner, sharper visuals.
Optimized for diverse environments, the camera supports day/night operation with a sensitivity of 0.5 Lux (day) and 0.1 Lux (night) at F1.6. It also features defog, motion detection across four zones, and privacy masking across 16 zones. Compatible with Pelco-D, Pelco-C, VISCA, and Hitachi protocols via UART RS232-TTL, integration into existing systems is seamless. Operating on 12V DC (7–15V range) with low power consumption of 5W max, the ATC-HZ7830T-LTN is ideal for indoor and outdoor security deployments.
Features:
- 1/2.8” Sony EXMOR CMOS Sensor: High-resolution imaging with excellent clarity.
- 360x Zoom: 30x optical + 12x digital zoom for detailed monitoring.
- 1080P60 Video: Smooth, high-definition surveillance at 60/50fps.
- True WDR: Balances lighting in high-contrast conditions.
- Day/Night Operation: Automatic adaptation to changing light.
- 3D DNR: Reduces visual noise for cleaner footage.
- Defog Function: Maintains clarity in fog or adverse weather.
- UART RS232-TTL Control: Compatible with Pelco-D, Pelco-C, VISCA, and Hitachi protocols.
Applications:
- Perimeter Security
- Traffic Surveillance
- Public Safety
- Industrial Monitoring
- Retail Security
- Transportation Hubs
