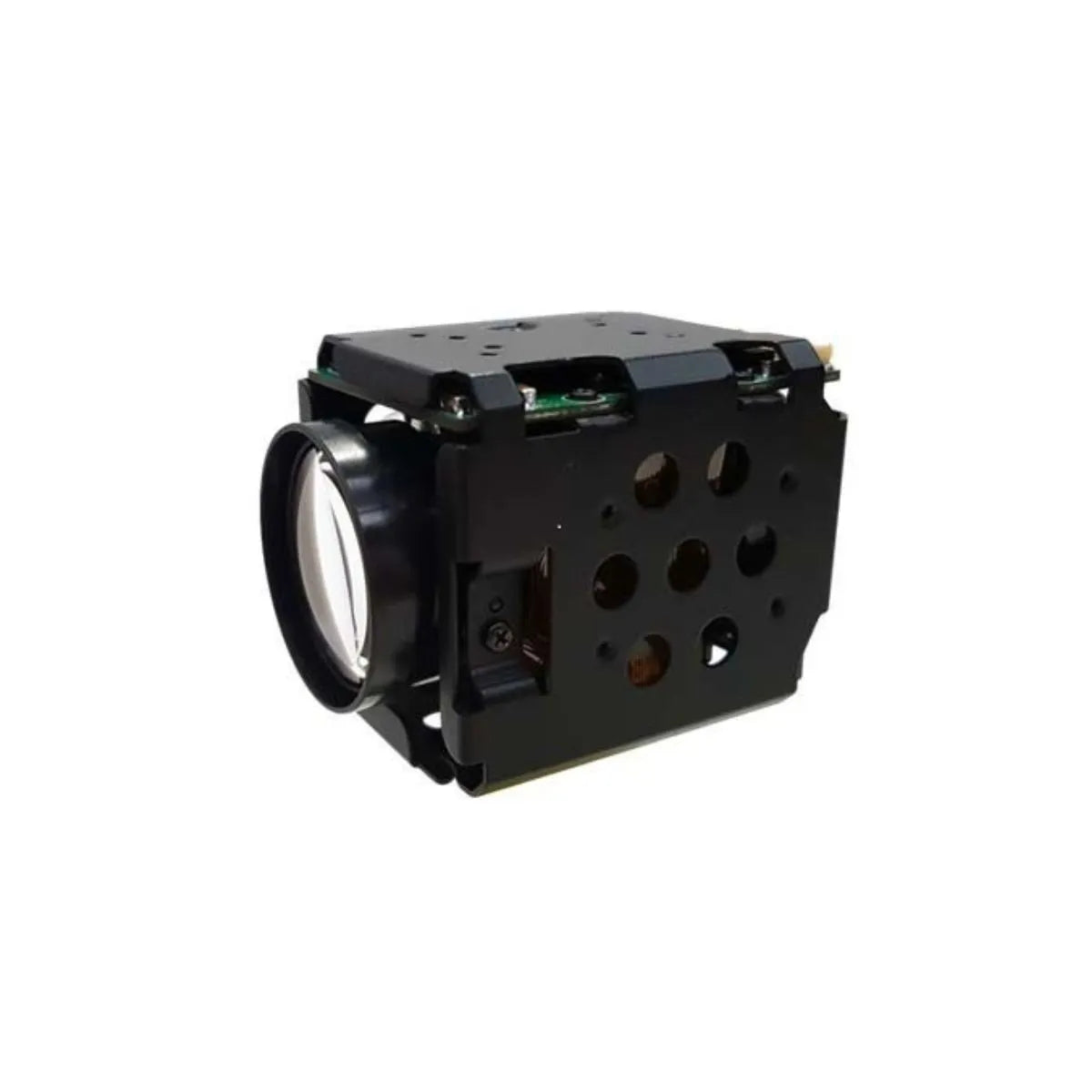

KT&C ATC-HZ7810LSC 1080P60 HD Day/Night Rolling Shutter Block Camera, 10x Optical Zoom, Sony Exmor CMOS
ATC-HZ7810LSC Spec Sheet
The KT&C ATC-HZ7810LSC is a high-performance 1080P60 surveillance camera engineered for precision imaging in diverse lighting conditions. Featuring a 1/2.8" Sony Exmor CMOS sensor with 2.38 million effective pixels, it delivers sharp Full HD video at 1920x1080 resolution. Its day sensitivity of 0.15 Lux and night sensitivity of 0.01 Lux (F1.5) ensures reliable performance in low-light and nighttime environments.
Equipped with 10x optical zoom and 12x digital zoom, the ATC-HZ7810LSC provides flexible coverage from wide-angle 68° to narrow 6.7° fields of view. Backlight compensation options (OFF/BLC/HLC/WDR), adjustable white balance, 3D DNR, and defog technology enable clear, balanced imaging in challenging scenes. Motion detection, privacy zone masking (1–24 zones), and SONY VISCA protocol support allow full integration with advanced security and robotic systems. Compact and lightweight, this camera is ideal for industrial, aerial, and mobile applications.
Features:
- 1/2.8" Sony Exmor CMOS Sensor, 2.38M effective pixels
- Full HD 1080P60 resolution
- 10x Optical Zoom, 12x Digital Zoom
- Day/Night ICR (IR Cut Filter Removable)
- Wide Dynamic Range (WDR) and Backlight Compensation
- 3D Digital Noise Reduction (DNR)
- Defog Technology for Clear Imaging
- Motion Detection (3 Areas)
- Privacy Zone Masking (1–24 Zones)
- Multi-Protocol Control (SONY VISCA, 9.6 Kbps)
- DC Iris Lens (f=5.1–51mm, F1.6–1.8)
- Compact: 41.6 x 45 x 61.6mm, 210g
Applications:
- Robotics & Unmanned Vehicles (UGVs, UAVs)
- Drones and ROV Cameras
- Bomb Disposal and Security Robots
- Industrial & Factory Surveillance
- Police & Emergency Vehicle Cameras
- Intelligent Traffic Monitoring
- Video Conferencing & Broadcast
- Houses of Worship & Public Spaces
