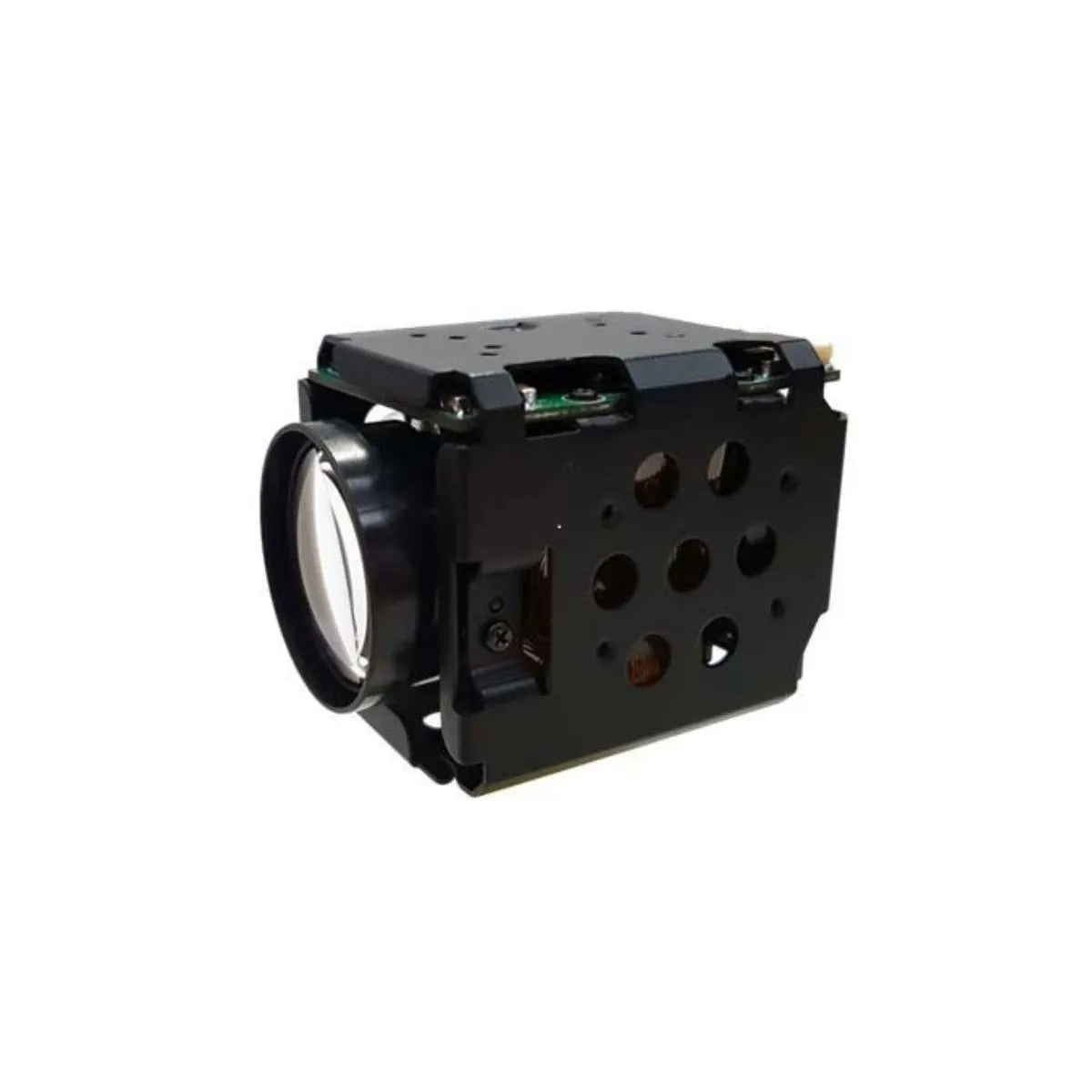

KT&C ATC-HZ7810LC 1080P60 10x Zoom Full HD Rolling Shutter Block Camera, 1/2.8" Sony Exmor CMOS, Low-Light Optimized

ATC-HZ7810LC Spec Sheet

The KT&C ATC-HZ7810LC is a professional-grade Full HD surveillance camera engineered for high-clarity imaging in challenging environments. Its 1/2.8" Sony Exmor CMOS sensor delivers 2.38 million effective pixels and 1080P60 resolution for crisp video quality. Optimized for low-light performance, it captures clear footage with 0.15 Lux (day) and 0.01 Lux (night) sensitivity at F1.5.

Featuring 10x optical and 12x digital zoom, the camera covers a 68° to 6.7° field of view with advanced image enhancement technologies including digital WDR, 3D DNR, and defog. Multi-protocol support, including SONY VISCA, allows seamless integration. Compact and robust, it operates from -10° to +50°C, powered via 12V DC (7–15V) at a maximum of 4.4 W.

Features:

• 1/2.8" Sony Exmor Progressive Scan CMOS, 2.38 MP
• 1080P60 Full HD resolution
• 10x Optical Zoom, 12x Digital Zoom, 5.1–51mm lens
• Low-light optimized: 0.15 Lux (day), 0.01 Lux (night)
• Mechanical Day & Night with ICR (IR Cut Filter Removable)
• Digital WDR, 3D DNR, Defog
• Multi-protocol (SONY VISCA compatible)
• LVDS (Digital OUT), CVBS, RS232 TTL interfaces
• Compact design, 210g, operating temperature -10° to +50°C

Applications:

• UAVs, ROVs, and UGVs
• Security and surveillance systems
• Police and emergency vehicle cameras
• Intelligent traffic monitoring
• Industrial and remote monitoring
• Video conferencing and live events
• House of worship security
