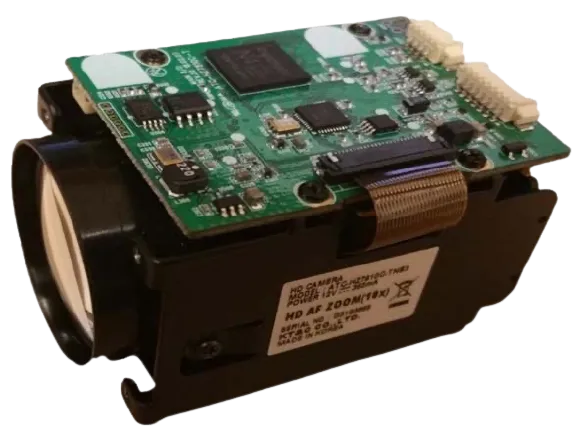

KT&C ATC-HZ7810C-TNB3 1080P60 Full HD Surveillance Rolling Shutter Camera, 10x Optical Zoom, WDR, Exmor R CMOS
ATC-HZ7810C-TNB3 Spec Sheet
The KT&C ATC-HZ7810C-TNB3 is a professional-grade surveillance camera engineered for high-definition security monitoring in diverse environments. Featuring a 1/2.8” Exmor R CMOS sensor with 2.13M effective pixels, it delivers crisp 1080P60 Full HD imaging with exceptional detail. Its 10x optical zoom lens (f=5.1–51mm, F1.6–1.8) provides precise close-up and long-distance monitoring, complemented by a total 120x zoom capability including digital enhancement.
Designed for challenging lighting conditions, the camera supports Wide Dynamic Range (WDR), 3D/2D noise reduction, and an IR-cut filter for low-light performance down to 0.01 Lux. Multiple video outputs, including HD-SDI, LVDS, and CVBS, allow seamless integration into existing CCTV or IP systems.
Advanced operational features include privacy masking with up to 24 zones, motion detection across three areas, customizable OSD text display, and flexible white balance modes. Compact and energy-efficient, it weighs just 210g and consumes 4.4W on a 7–15V DC supply, making it ideal for professional security installations.
Features:
- High-Resolution Sensor: 1/2.8” Exmor R CMOS, 2.13M pixels, Full HD 1080P60
- Powerful Optical Zoom: 10× optical, up to 120× total zoom capability
- Advanced Image Processing: 3D/2D noise reduction, WDR for superior clarity in variable lighting
- Low-Light Performance: IR-cut filter, sensitivity down to 0.01 Lux at night
- Flexible Video Outputs: HD-SDI, LVDS, CVBS; supports multiple resolutions and frame rates
- Privacy Zone Masking: Up to 24 customizable zones for sensitive areas
- Motion Detection: Three programmable zones for security alerts
- Customizable OSD: Up to 21 lines of text, SONY VISCA control, 9.6 Kbps baud rate
- Compact & Efficient: Weighs 210g, power consumption 4.4W, DC 7–15V
Applications:
- CCTV Security Systems
- Professional Surveillance Monitoring
- Remote Site Surveillance
