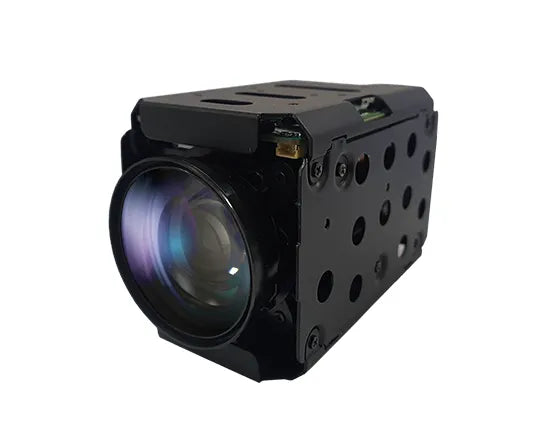

KT&C ATC-HZ5540T-LPN 1/2.9" Global Shutter Block Camera, 1.58MP, 720P60, 40x Optical Zoom
The KT&C ATC-HZ5540T-LPN is a high-performance surveillance block camera engineered for demanding security and industrial applications. Featuring a 1/2.9" Progressive Scan Global Shutter CMOS sensor, it delivers 1.58MP resolution (1456x1088) and smooth 720P60 video output via Parallel, LVDS, or CVBS.
Equipped with a DC Iris AF optical zoom lens ranging from 4.25mm to 170mm, the camera provides 40x optical zoom and 12x digital zoom for detailed imaging over long distances. Its lens offers an aperture range of F1.6(W) to F4.95(T) with wide horizontal and vertical fields of view from 59.7° to 1.7° and 46.2° to 1.3°, respectively.
Optimized for low-light conditions, the ATC-HZ5540T-LPN achieves a minimum illumination of 0.01 Lux (day) and 0.007 Lux (night), with a signal-to-noise ratio above 55dB. Advanced features include True WDR, 3D DNR, digital image stabilization, motion detection, and comprehensive white balance adjustments, all in a compact 50 × 58.8 × 95.8mm housing weighing only 244g.
Features:
- 1/2.9" Progressive Scan Global Shutter CMOS sensor
- 1.58MP effective pixels (1456x1088)
- 720P60 video output via Parallel, LVDS, or CVBS
- DC Iris AF optical zoom lens: 4.25–170mm
- 40x optical zoom / 12x digital zoom
- Mechanical Day/Night function with IR-cut
- True WDR and D-WDR support
- 3D-DNR, 2D-DNR, and Defog capabilities
- Digital Image Stabilization (DIS)
- Motion detection with 4 configurable zones
- UART RS232-TTL control (VISCA, Pelco-D, Pelco-P, Hitachi)
- Global Shutter with Trigger In & Strobe Out
- Compact design: 50 × 58.8 × 95.8mm, 244g
Applications:
- Traffic monitoring and enforcement
- Perimeter and facility security
- Public safety and law enforcement
- Retail and commercial surveillance
- Industrial and critical infrastructure monitoring
