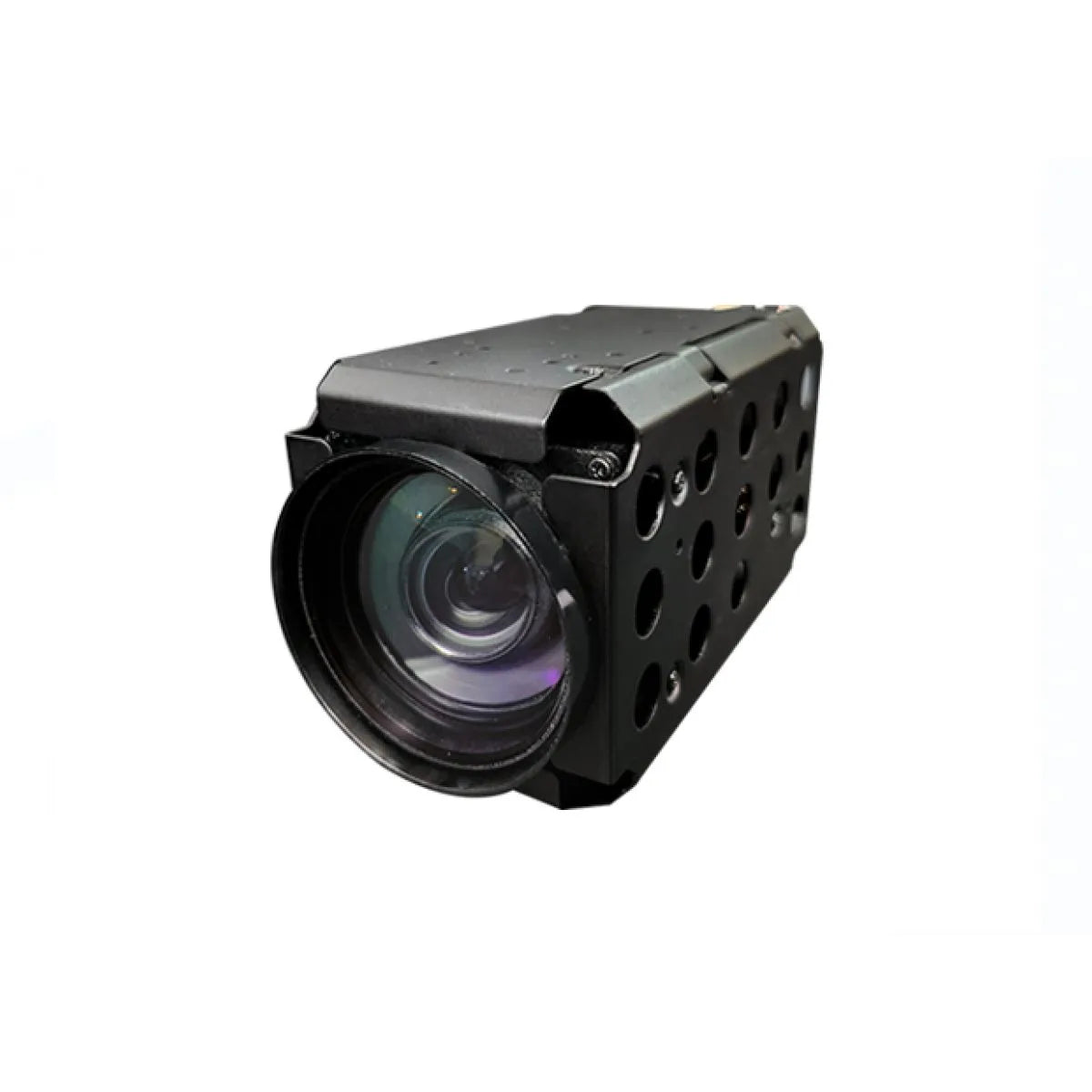

KT&C ATC-HZ5536W-LPN 3.19MP CMOS HD Global Shutter Block Camera, 36x Optical Zoom
The KT&C ATC-HZ5536W-LPN is a professional-grade HD block camera engineered for high-performance surveillance and monitoring. Featuring a 1/1.8" SONY Progressive Scan Global Shutter CMOS sensor, it delivers 3.19MP resolution (2064×1544) with smooth 1080P60 video output.
Equipped with a 36x optical zoom lens (6.0–216mm) and 12x digital zoom, this compact camera excels in both long-range and low-light imaging, achieving a minimum illumination of 0.1 Lux (day) / 0.05 Lux (night). Advanced imaging technologies, including True WDR, 3D-DNR, Defog, and Digital Image Stabilization, ensure clear, detailed visuals under varied lighting conditions.
Lightweight, efficient, and versatile, the ATC-HZ5536W-LPN is ideal for traffic monitoring, law enforcement, border security, and industrial surveillance. Its multiple video output options (LVDS, Parallel, CVBS) and compact design make it a flexible solution for professional installations.
Features:
- 1/1.8" SONY Progressive Scan Global Shutter CMOS
- 3.19MP (2064×1544) high-definition video
- 36x optical zoom / 12x digital zoom (432x total)
- 1080P60 / 1080P50 / 30/25 fps output
- Mechanical Day & Night functionality
- True Wide Dynamic Range (WDR)
- 3D-DNR, Defog, and Digital Image Stabilization
- Multiple control protocols: UART RS232-TTL (Pelco-D, Pelco-C, VISCA, Hitachi)
- Compact size (55×64×123mm) and lightweight (≈380g)
- Low power consumption: 5.3W max
Applications:
- Traffic Surveillance & Smart Cities
- Law Enforcement & Border Security
- Military & Defense Monitoring
- Industrial & Infrastructure Security
- Public Safety & Video Monitoring
- Low-Light and Nighttime Surveillance
- Video Conferencing & Remote Observation
