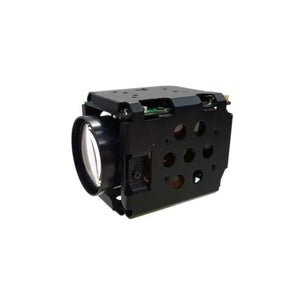

KT&C ATC-HZ5530Z-LPN 1/2.9" Global Shutter Block Camera, 720P, 25x Optical Zoom, 12x Digital Zoom

The KT&C ATC-HZ5530Z-LPN is a professional-grade block camera with a 1/2.9" SONY Progressive Scan Global Shutter CMOS sensor, delivering 1.58MP resolution (1456 × 1088) and smooth 720p video at 60, 50, 30, and 25 fps. It features a 300x auto-focus zoom (25x optical, 12x digital) with F1.6–F4.3 aperture for excellent low-light performance (0.1 lux day, 0.08 lux night). True WDR, 3D DNR, and Defog technologies enhance clarity in challenging lighting and weather conditions.

Equipped with UART RS232-TTL control supporting VISCA, Pelco-D/P, and Hitachi protocols, the camera operates on 12VDC (9–15V) and consumes a maximum of 5.3W. Its compact, durable design (50 × 58.8 × 96.1 mm, 240g) makes it ideal for demanding surveillance environments.

Features:

• 1/2.9" Progressive Scan Global Shutter CMOS
• 300x Auto-Focus Zoom (25x optical, 12x digital)
• 720p video output at 60/50/30/25 fps
• True WDR, 3D DNR, Defog for enhanced image quality
• Mechanical Day/Night operation
• Global Shutter with Trigger In & Strobe Out
• UART RS232-TTL communication (VISCA, Pelco-D/P, Hitachi)
• Low-light sensitivity: 0.1 lux (day), 0.08 lux (night)
• Compact, lightweight, and durable design

Applications:

• Commercial and industrial surveillance
• Traffic monitoring and law enforcement
• Remote site monitoring
• Broadcasting and live production
• Research and wildlife observation
• Smart city and IoT integration
• Home and facility automation
