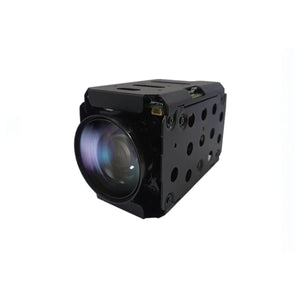

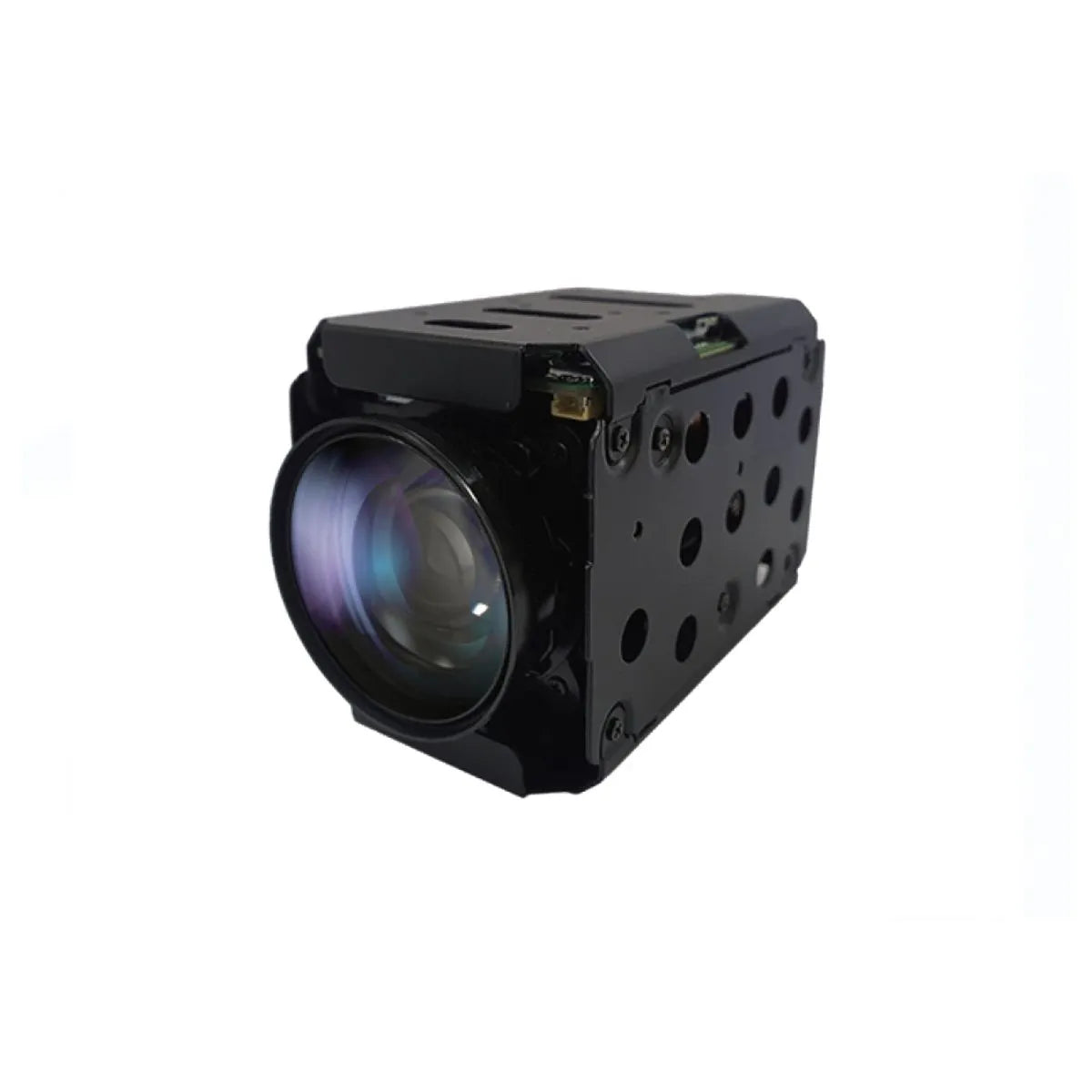

KT&C ATC-HZ5530W-LPN 3.19MP 1080P60 PTZ Global Shutter Block Camera, 30X Optical Zoom

The KT&C ATC-HZ5530W-LPN PTZ Block Camera delivers professional-grade surveillance performance with a 1/1.8" CMOS sensor producing 3.19MP (2064 x 1544) effective resolution. This global shutter camera supports LVDS and CVBS outputs at up to 1080P60, providing smooth, high-quality video for critical security environments.

Equipped with a 30x optical zoom lens (f=6.0–180mm, F1.5–F4.3) and 12x digital zoom, it achieves a horizontal field of view from 61.2° to 2.32°, making it ideal for wide-area coverage and detailed close-ups. The camera excels in low-light conditions with a minimum illumination of 0.05 Lux (day) and 0.03 Lux (night with IR-cut). Advanced image processing ensures clear, reliable images, even in challenging lighting or weather conditions.

Compact and versatile, the ATC-HZ5530W-LPN is ideal for indoor and outdoor applications requiring precise PTZ control, high-speed tracking, and robust monitoring solutions.

Features:

• 1/1.8" Global Shutter CMOS Sensor: Sharp, motion-free imaging for fast-moving objects.
• 30X Optical Zoom + 12X Digital Zoom: Superior detail capture for both wide-area and close-up surveillance.
• HD 1080P60 Video Output: Smooth, real-time video with LVDS/CVBS compatibility.
• Low-Light Performance: Minimum illumination 0.05 Lux (day) / 0.03 Lux (night, IR-cut on).
• Mechanical Day/Night Switching: Reliable 24/7 surveillance in all lighting conditions.
• True Wide Dynamic Range (WDR): Balanced exposure for high-contrast scenes.
• 3D Digital Noise Reduction & Defog: Clear images in low-light, fog, or haze conditions.
• Digital Image Stabilization & Motion Detection: Stable, accurate imaging for dynamic environments.
• Preset Positions & Custom PTZ Control: 256 presets, 16 memory positions for flexible monitoring.
• Protocol Compatibility: VISCA, Pelco-D/P, Pelco-P, Hitachi for seamless system integration.
• Compact Design: 55 x 64 x 123mm, approx. 380g, suitable for versatile installations.

Applications:

• High-Speed Surveillance
• Traffic & Border Monitoring
• Public Safety & Urban Security
• Industrial & Manufacturing Inspection
• Aerial/Drone Surveillance
