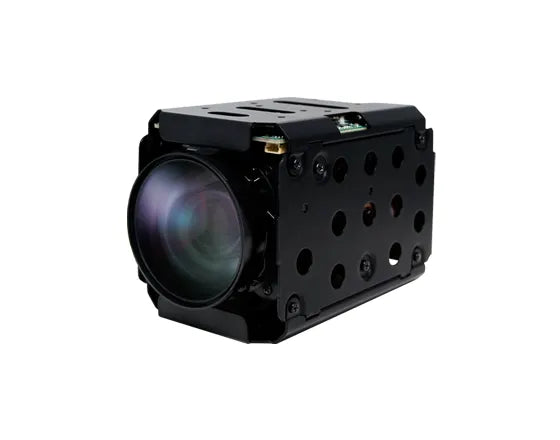

KT&C ATC-HZ5530T-LPN 1.58MP HD Global Shutter Block Camera, 1080P60, 30x Optical Zoom
The KT&C ATC-HZ5530T-LPN is a high-performance network camera featuring a 1/2.9” Progressive Scan Global Shutter CMOS sensor with 1.58MP effective pixels. Delivering 1080P60 video via LVDS or parallel output, it provides sharp, clear imaging for a variety of surveillance environments.
Equipped with a 30x optical zoom lens (focal length 4.3–129mm, F1.6–F5.0), the camera offers flexible viewing angles from 60.7° to 2.2° horizontally and 46.8° to 1.7° vertically. Advanced imaging features include digital image stabilization, 3D-DNR, adjustable WDR, and defog, ensuring high-quality visuals even in low-light or challenging conditions.
Control is simple with UART RS232 support and compatibility with VISCA and Pelco protocols, making it ideal for integrated surveillance systems. Compact and durable, the camera operates reliably from -10°C to +50°C, consuming a maximum of 7.3W, with dimensions of 158.5×135×96mm.
Features:
- 1/2.9" Progressive Scan Global Shutter CMOS sensor, 1.58MP
- 30x optical zoom, 12x digital zoom
- Full HD 1080P60 video output (LVDS/Parallel)
- Mechanical Day & Night (IR-cut filter)
- True Wide Dynamic Range (WDR)
- 3D Digital Noise Reduction (3D-DNR) & Defog
- Global shutter with trigger in & strobe out
- Remote control via UART RS232, VISCA, Pelco D/C, Hitachi protocols
- Low-light performance: 0.1Lux (day), 0.08Lux (night)
Applications:
- Traffic monitoring & vehicle surveillance
- Citywide public safety & law enforcement
- Border security & perimeter control
- Critical infrastructure & industrial monitoring
- Specialized research and monitoring environments
