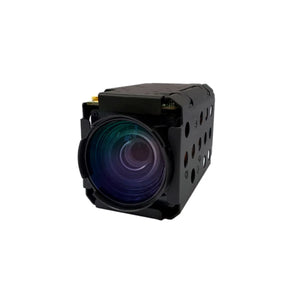

KT&C ATC-HZ5518W-U 1/1.8" Global Shutter Block Camera, 1080P60, 18x Optical Zoom, True WDR

The KT&C ATC-HZ5518W-U is a high-performance HD surveillance camera featuring a 1/1.8" Progressive Scan Global Shutter CMOS sensor with 3.19MP resolution. It delivers smooth 1080p video at up to 60fps and combines an 18x optical zoom with 12x digital zoom for precise, high-detail imaging at long distances.

Advanced features including True WDR, D-WDR, 3D DNR, Defog, and Mechanical Day/Night ensure consistent, high-quality performance in challenging lighting and environmental conditions. Compact and versatile, the camera supports UART RS232-TTL control (VISCA, Pelco-D/P, Hitachi) and is ideal for a wide range of indoor and outdoor applications.

Features:

• 1/1.8" Progressive Scan Global Shutter CMOS sensor
• 3.19MP resolution (2064 x 1544)
• 1080p @ 60/50/30/25fps
• 216x AF Zoom (18x optical, 12x digital)
• Mechanical Day/Night functionality
• True WDR and D-WDR
• 3D DNR and Defog
• Global Shutter with Trigger In & Strobe Out
• UART RS232-TTL control (VISCA, Pelco-D/P, Hitachi)
• Low-light sensitivity: 0.1 Lux (Day), 0.05 Lux (Night with IR-cut)
• Compact design: 51 x 59 x 97.6mm, 277g

Applications:

• Intelligent traffic and highway monitoring
• Retail security and loss prevention
• Perimeter and facility surveillance
• Smart city surveillance systems
• Industrial process monitoring
• Event and crowd management
• Remote video conferencing and telepresence
• Wildlife and animal observation
• Research and development imaging
• Healthcare and laboratory monitoring
