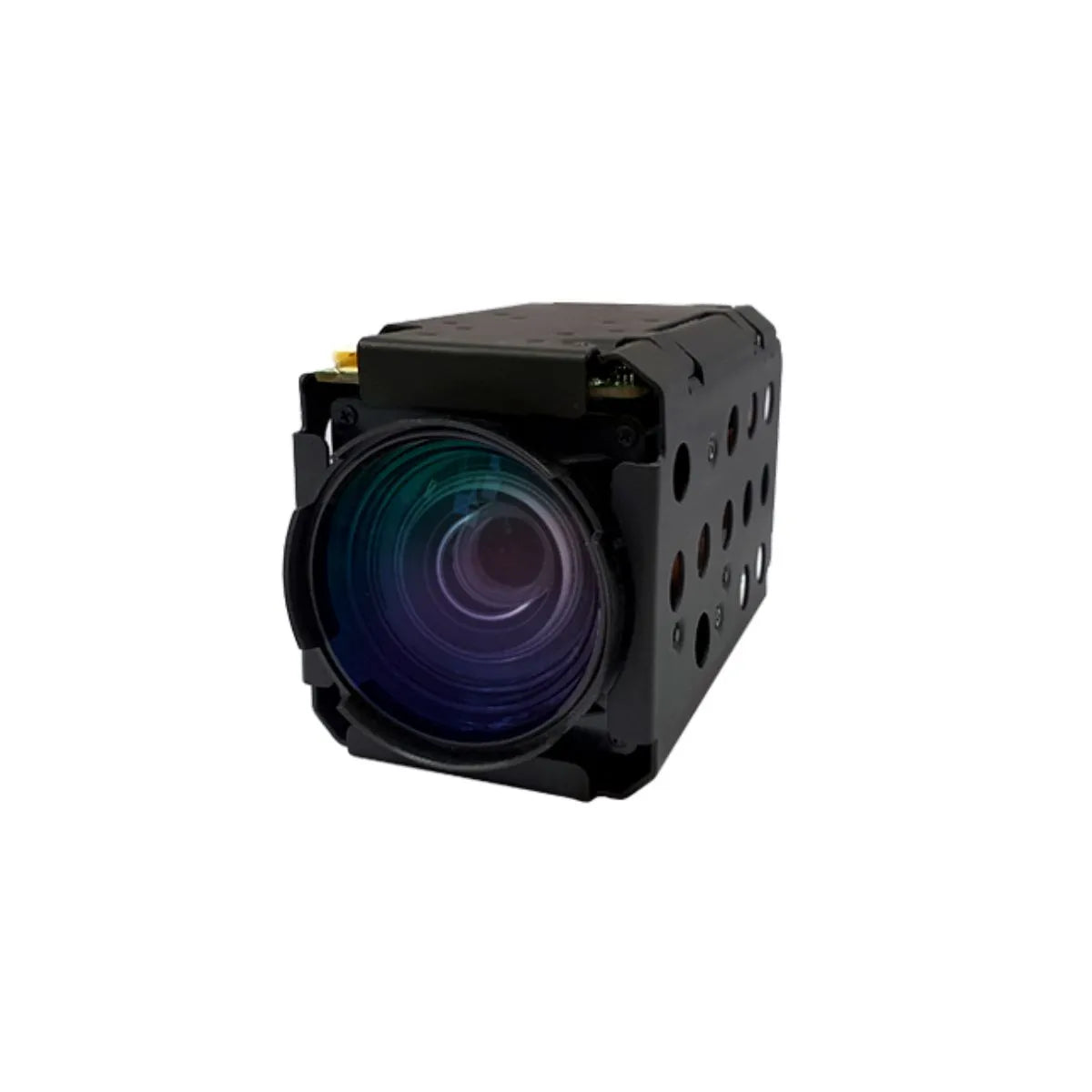

KT&C ATC-HZ5518W-LPN 1/1.8" Global Shutter 3.19MP HD Block Camera, 1080P60, 18x Optical Zoom, True WDR

ATC-HZ5518W-LPN Spec Sheet

The KT&C ATC-HZ5518W-LPN is a high-performance surveillance camera designed for professional monitoring applications. It features a 1/1.8" Progressive Scan Global Shutter CMOS sensor delivering 3.19MP resolution (2064x1544) at 1080p60. Multiple video outputs, including LVDS, Parallel, and CVBS, ensure seamless integration with existing surveillance systems.

Equipped with an advanced 18x optical zoom and 12x digital zoom lens, the camera provides precise autofocus and wide coverage. Low-light performance is exceptional with a minimum illumination of 0.05 Lux (night mode). True WDR balances high-contrast scenes while 3D DNR reduces noise for clearer images. The camera supports UART RS232 TTL control and is compatible with Pelco-D, VISCA, and Hitachi protocols, making it ideal for complex surveillance setups.

Features:

• 1/1.8" Progressive Scan Global Shutter CMOS: Captures sharp, detailed images with minimal motion blur.
• 18x Optical / 12x Digital Zoom: Versatile coverage for both wide and distant monitoring.
• 1080P60 HD Output: Smooth video at up to 60 frames per second.
• True WDR: Maintains balanced exposure in high-contrast environments.
• Low-Light Capability: Minimum 0.05 Lux for effective night surveillance.
• 3D DNR & Defog: Reduces noise and compensates for foggy conditions.
• Mechanical Day/Night & IR-Cut Filter: Optimizes performance under changing lighting.
• UART RS232 TTL Integration: Compatible with Pelco-D, VISCA, Hitachi protocols.
• Trigger In & Strobe Out: Captures fast motion events and integrates with external devices.

Applications:

• Surveillance & Security
• Traffic Monitoring
• Industrial & Facility Security
• Retail Loss Prevention
• Event Recording
