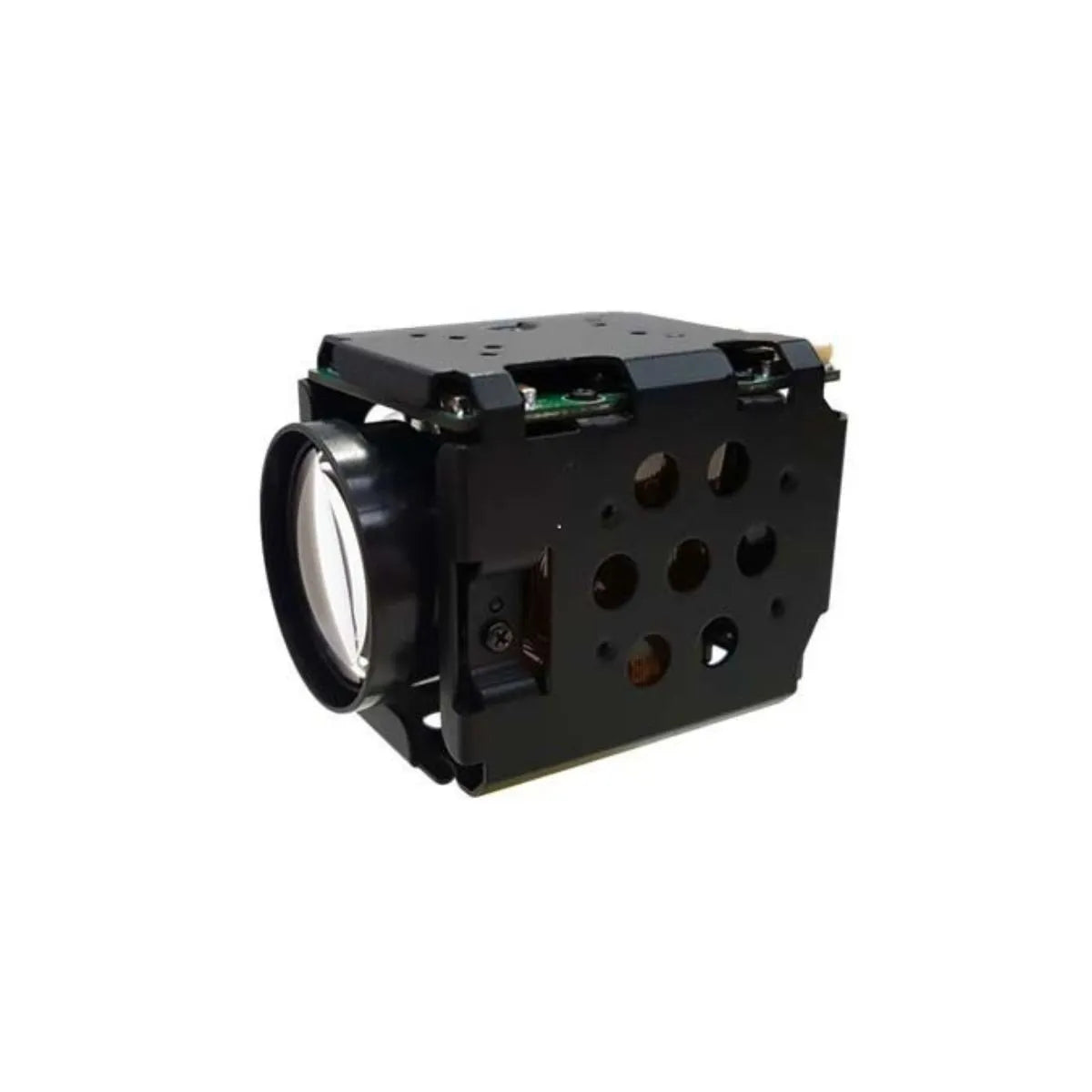

KT&C ATC-HZ5510C-LCN 1.58MP CMOS Rolling Shutter HD Block Camera with 10x Optical Zoom, 720p@60fps LVDS Output

The KT&C ATC-HZ5510C-LCN Block Camera delivers professional-grade surveillance performance with a 1/2.9" 1.58MP CMOS sensor, providing clear 720p video at 60fps via LVDS output. Its 10x optical zoom lens (5.1–51mm, F1.6–F1.8) ensures versatile coverage, while advanced low-light capabilities (0.05 Lux day / 0.03 Lux night with IR-cut filter) allow detailed imaging in challenging environments.

Engineered for precision and adaptability, this compact (41.6 × 45 × 61.6 mm, 124g) camera features D-WDR, 3D/2D noise reduction, defog, and customizable white balance, offering high-quality images across varying lighting conditions. Integrated RS232 TTL control ensures seamless system integration for industrial, commercial, or security-focused applications.

Features:

• 1/2.9" CMOS Sensor, 1.58MP: High-resolution imaging with excellent low-light performance.
• 10x Optical Zoom: 5.1–51mm focal range with auto/manual/preset focus control.
• 720p@60fps LVDS Output: Smooth, real-time HD video capture.
• Low-Light Sensitivity: 0.05 Lux (day), 0.03 Lux (night) with IR-cut filter.
• D-WDR & Noise Reduction: Digital Wide Dynamic Range, 3D/2D DNR for clear imaging.
• Defog & Image Stabilization: Enhanced clarity in foggy or adverse conditions.
• Mechanical Day/Night Mode: Auto-switching for round-the-clock monitoring.
• RS232 TTL Protocol Support: VISCA, Pelco-D/P, Hitachi for remote control.
• Compact & Lightweight: 41.6 × 45 × 61.6 mm; approx. 124g.

Applications:

• High-Security Facilities
• Perimeter & Industrial Surveillance
• Traffic Monitoring
• Retail & Commercial Spaces
• Public Safety & Law Enforcement
