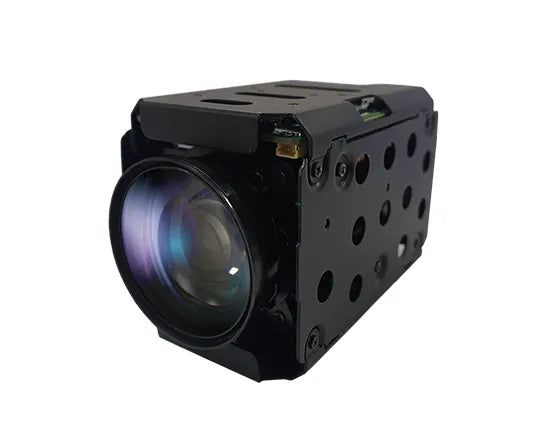

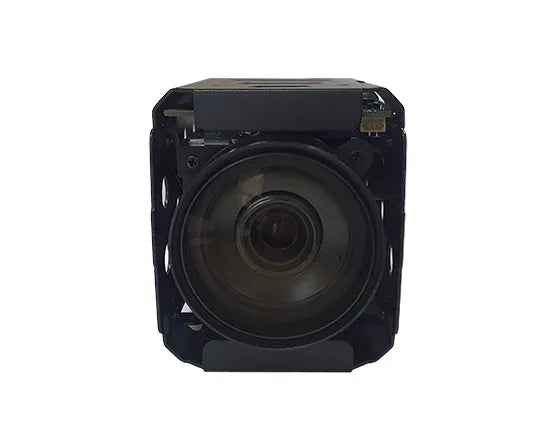

KT&C ATC-HZ5240T-LCN 1/2.8" Rolling Shutter HD Block Camera, 2.13MP, 1080P60, 40x Optical Zoom

The KT&C ATC-HZ5240T-LCN is a high-performance surveillance camera designed for demanding security applications. Equipped with a 1/2.8" Progressive Scan CMOS sensor, it delivers 2.13MP resolution (1945 x 1097) with smooth 1080P60/50/30/25 output and reliable performance in low-light conditions.

This camera features a 40x optical zoom (f=4.25–170mm) and wide-angle coverage from 65.6° to 1.9° horizontally, ensuring precise monitoring over large areas. With 0.01 Lux day and 0.006 Lux night sensitivity, True WDR, 3D DNR, and defog capabilities, it maintains clarity in challenging light or adverse weather.

Advanced functionality includes auto/manual focus, multiple D&N modes, white balance options, and a multilingual OSD menu, making it suitable for global deployment in urban, industrial, or critical infrastructure environments.

Features:

• 1/2.8" Progressive Scan CMOS Sensor: High-resolution imagery with superior low-light sensitivity.
• 40x Optical Zoom: Provides flexible monitoring from wide to telephoto views.
• 1080P60 Multi-Format Output: Smooth video at 60/50/30/25 fps; also supports 720P.
• True WDR: Balances challenging lighting conditions for clear visuals.
• Mechanical Day & Night: Automatic IR-cut filter for color/night adaptation.
• 3D DNR & Defog: Reduces noise and enhances image clarity in low-light or fog.
• Flexible Focus Options: Auto, manual, preset, or one-push focus.
• Protocol Support: UART RS232-TTL compatible with Pelco-D/C, VISCA, Hitachi.
• Multilingual OSD: English, Japanese, Russian, Spanish, German, French, Portuguese.

Applications:

• Critical Infrastructure Security
• Perimeter Surveillance
• Transportation Hubs & Airports
• Public Safety & City Surveillance
• Industrial & Manufacturing Sites
• Traffic & Toll Monitoring
• Adverse Weather Surveillance
• Custom Security System Integration
