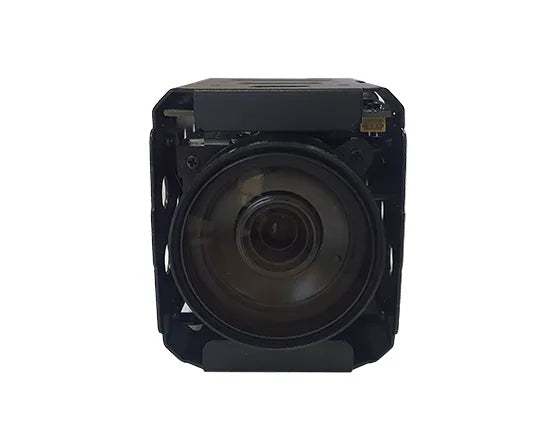

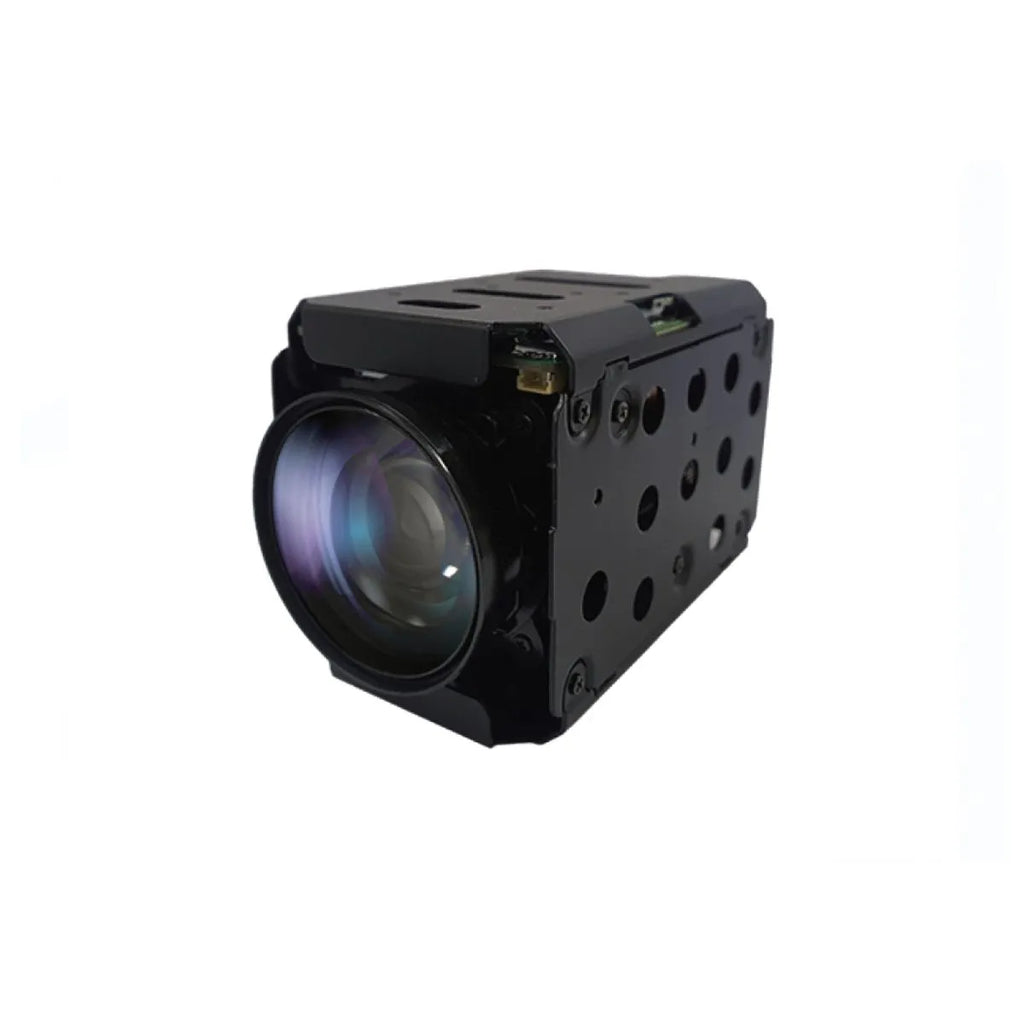

KT&C ATC-HZ5230Z-LCN 1/2.8" STARVIS Rolling Shutter Block Camera, 2.13MP, 1080P60, 30x Optical Zoom

The KT&C ATC-HZ5230Z-LCN is a precision 2.13MP security camera featuring a 1/2.8" progressive scan rolling shutter CMOS sensor, delivering full HD 1080P60 video output. Its 30x AF optical zoom lens (5.0–150mm) ensures sharp imagery from short to long distances, while low-light sensitivity down to 0.03 Lux enables reliable night-time surveillance.

Advanced imaging functions include True WDR, 3D-DNR, Defog, and Digital Image Stabilization. RS232 TTL control with multiple protocols allows seamless system integration. Compact, energy-efficient, and capable of operating from -10°C to +50°C, it is built for demanding security environments.

Features:

• 1/2.8" Progressive Scan Rolling Shutter STARVIS CMOS sensor
• 2.13MP resolution, 1080P60 output
• 30x optical zoom, 12x digital zoom (AF DC Iris lens)
• Mechanical Day & Night functionality
• True Wide Dynamic Range (WDR)
• 3D-DNR, Defog, Digital Image Stabilization
• Low-light performance: 0.05 Lux (Day) / 0.03 Lux (Night)
• RS232 TTL control: Pelco-D, Pelco-P, VISCA, Hitachi
• LVDS / Parallel / CVBS video output
• Compact design: 50 × 58.8 × 96.1 mm, 240 g
• Operating temperature: -10°C to +50°C

Applications:

• Perimeter Security
• Traffic Monitoring
• City Surveillance
• Border Security
• Industrial Facility Security
• Critical Infrastructure Protection
