KT&C ACE-HEN6338-iL H.264 LVDS to IP Encoder Module for HD 1080p Block Cameras, 30fps, PoE/12VDC
KT&C ACE-HEN6338-iL H.264 LVDS to IP Encoder Module for HD 1080p Block Cameras, 30fps, PoE/12VDC
KT&C ACE-HEN6338-iL H.264 LVDS to IP Encoder Module for HD 1080p Block Cameras, 30fps, PoE/12VDC
KT&C ACE-HEN6338-iL H.264 LVDS to IP Encoder Module for HD 1080p Block Cameras, 30fps, PoE/12VDC
Applied Vision Products

KT&C ACE-HEN6338-iL H.264 LVDS to IP Encoder Module for HD 1080p Block Cameras, 30fps, PoE/12VDC

$0.00 $0.00
Shipping calculated at checkout.

ACE-HEN6338-iL Spec Sheet

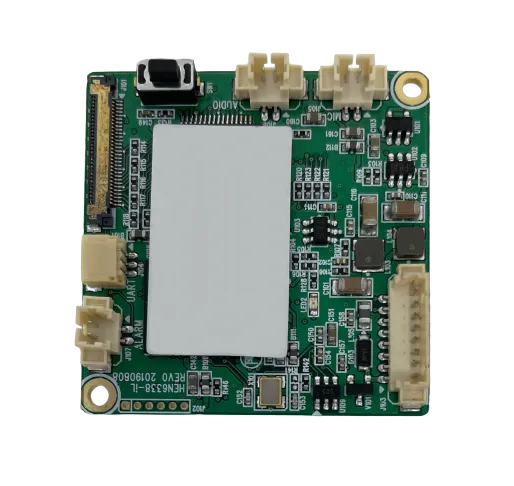

The KT&C ACE-HEN6338-iL is a compact, high-performance H.264 LVDS to IP encoder designed for seamless integration with HD block cameras in IP-based surveillance systems. Offering HD 1080p video at 30fps with H.264 and MJPEG compression, this encoder optimizes bandwidth while ensuring crisp, clear video quality.

Equipped with motion detection across four customizable zones and up to 16 privacy masking zones, it provides enhanced security control. The ACE-HEN6338-iL supports up to three simultaneous streaming profiles, two-way audio with G.711 compression, and up to five simultaneous user connections. Dual power options (12VDC and PoE) and a compact, durable design (38x38mm, 7.65g) allow flexible deployment in varied environments, operating reliably from -10°C to +50°C.

Compatible with Onvif and multiple network protocols (HTTP, HTTPS, RTP/RTSP, TCP/IP, UDP, DHCP), and major web browsers including IE, Edge, Safari, Firefox, and Chrome, it integrates smoothly into existing surveillance infrastructures. Ideal for traffic monitoring, campus security, retail environments, healthcare facilities, and smart building applications.

Features:

  • HD 1080p video output at 30fps (H.264, MJPEG)
  • Low-voltage LVDS input for HD block cameras
  • Motion detection with 4 customizable zones
  • Privacy masking with up to 16 zones
  • Dual power options: 12VDC or PoE (Power over Ethernet)
  • Supports up to 3 simultaneous streaming profiles
  • Ethernet 10/100 Base-T for fast network integration
  • Two-way audio with G.711 compression
  • Onvif-compliant for easy system integration
  • Web browser compatibility: IE, Edge, Safari, Firefox, Chrome

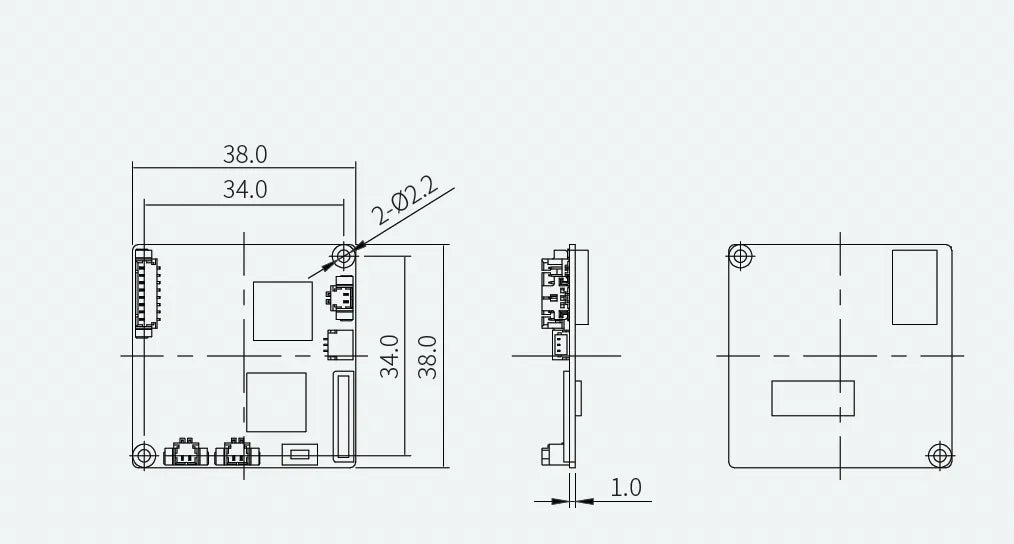

  • Compact size (38x38mm) and lightweight (7.65g)
  • Operating temperature: -10°C to +50°C
  • Maximum 5 simultaneous users
  • Supports multiple network protocols (HTTP, HTTPS, RTP/RTSP, TCP/IP, UDP, DHCP, NTP, Visca over IP)

Applications:

  • Remote surveillance and monitoring
  • Traffic and public area surveillance
  • School and campus security
  • Retail store and commercial security systems
  • Access control and facility monitoring
  • Smart building and industrial integration
  • Healthcare facility surveillance
  • Parking lot and perimeter security
