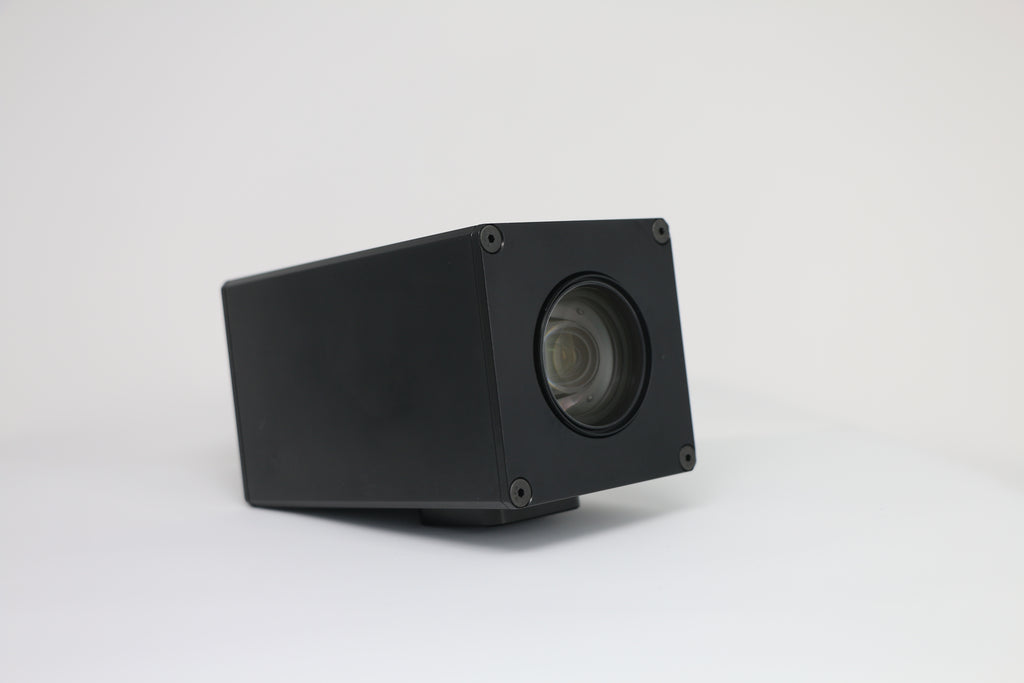

AVP AEG-HD30X HD Block Camera
AVP AEG-HD30X HD Block Camera
AVP AEG-HD30X HD Block Camera
AVP AEG-HD30X HD Block Camera

AVP AEG-HD30X HD Block Camera

Regular price $2,795.00 $0.00 Unit price per
Shipping calculated at checkout.

Capture crisp, clear Full HD (1080/60p) images

Fast, bright lens with rapid 30x optical zoom

Get a steadier picture with image stabilizer


2D/3D Noise Reduction

See more clearly with Visibility Enhancer and De-fog

Clear vision round the clock with Day/Night

Auto ICR (Auto IR-cut Filter Removal)

Spherical privacy zone masking

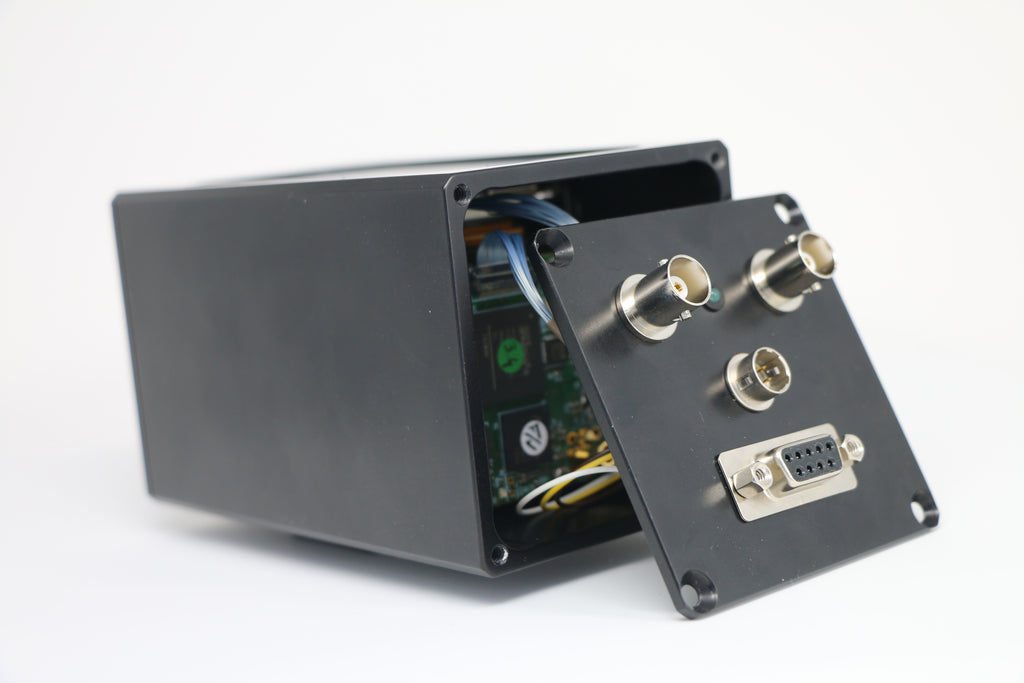

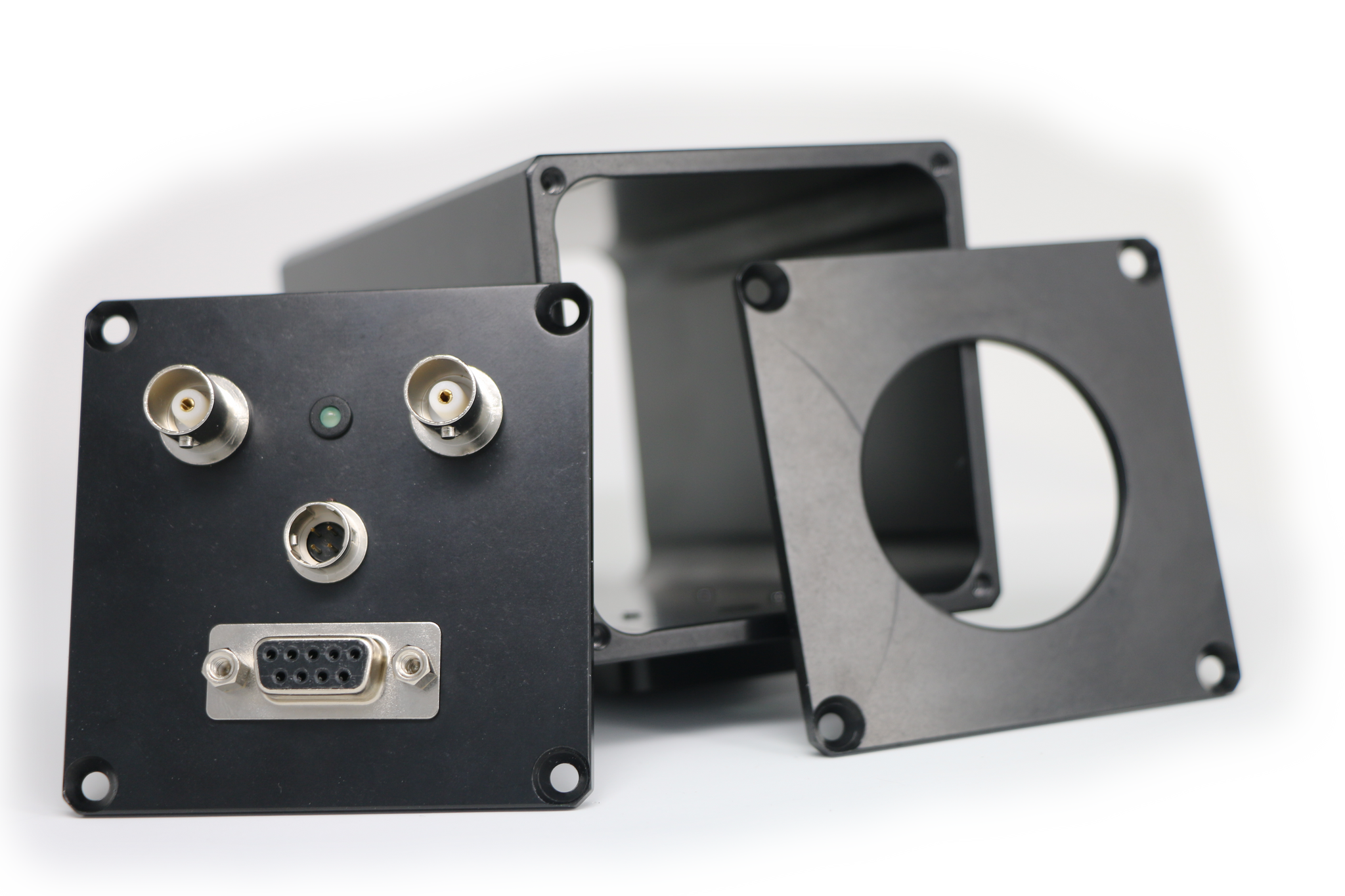

One-cable connection for simpler integration

Wide range of features for versatile operation

Versatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Colour Enhancement); Motion Detection/Alarm; Picture freeze; Temperature readout; Slow AE response; Electronic shutter/slow shutter; Title display/ Camera mode display (English).

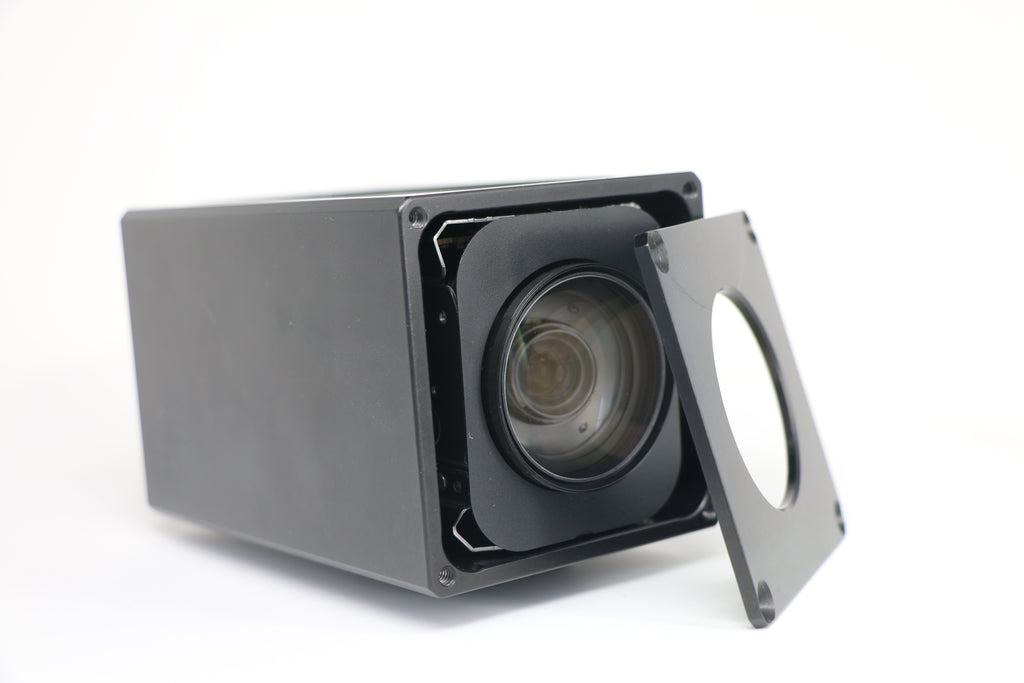

Utilizing Sony camera technology and housed in AVP's own housing this kit is ready to be plugged in straight out of the box. The camera features a 30x optical zoom lens for a clean crips image and is the perfect solution for security surveillance, intelligence traffic monitoring, remote monitoring, and video conferencing.

Free Shipping within the US.  Six (6) month warranty


Image Device 1/2.8-type CMOS
Effective Pixels Approx. 2.13 Megapixels
Digital Zoom 12x (360x with optical zoom)
Horizontal Viewing 63.7°(wide end) to 2.3°(tele end)
Minimum Object 10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)
Sync System Internal
Electronic Shutter 1/1 s to 1/10,000 s, 22 steps
White Balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Gain Auto/Manual 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps); Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 step/total 12 steps)
Wide Dynamic Range No
Backlight Compensation Yes
Privacy Zone Masking Yes
Character Generator 20 characters/line, max. 11 lines
Focus System Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
Picture Effect E-Flip, Nega Art, Black & White, Mirror image, Color enhancement
Exposure Control Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
Lens Value 30x optical zoom; f=4.3mm (wide) to 129.0mm (tele); F1.6 to F4.7
S/N Ratio More than 50 dB
Minimum Illumination Color: 1.4 lx (F1.6, AGC on, 1/30 s); High Sensitivity Mode Color: 0.35 lx (F1.6, AGC on, 1/30 s)
Video Output Digital: Y/CB/CR 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296.) SD VBS
Control Interface VISCA (CMOS 5 V level; Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit
Dimensions (W x H x D) 50.0 x 60.0 x 89.7 mm
Weight Approx. 260 g
