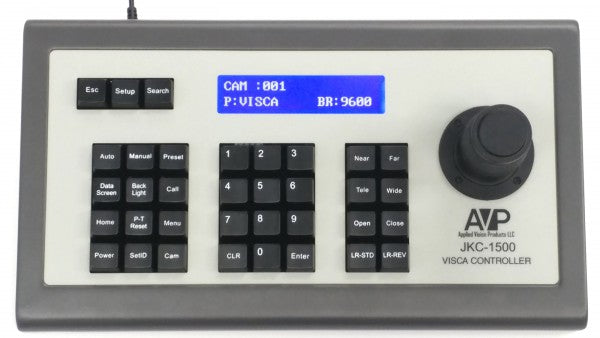

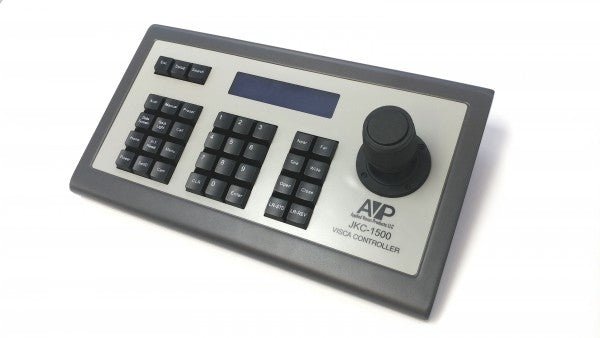

PTZ Camera Controller with Joystick - Sony VISCA Alt
The AVP JKC-1500 pan, tilt, zoom, controller with joystick and keyboard is compatible with all Sony VISCA cameras such as Sony EVI, SRG, and FCB series models.
This PTZ controller easily controls up to seven (7) cameras using the joystick, keyboard, as well as the On Screen Display menu of applicable cameras.
The AVP JKC-1500 also allows you to create 26 programmable presets per PTZ camera.

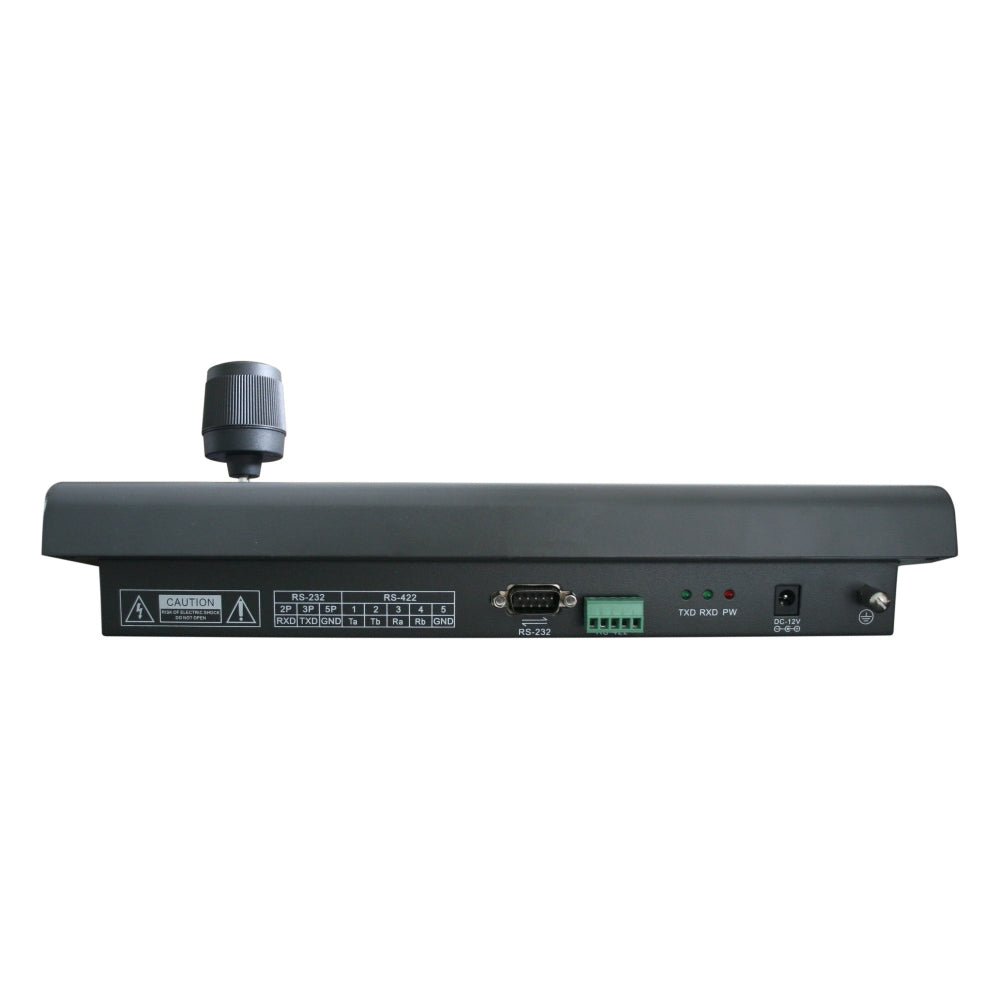

Camera control is performed through RS232C (DB9) and RS422 connections.

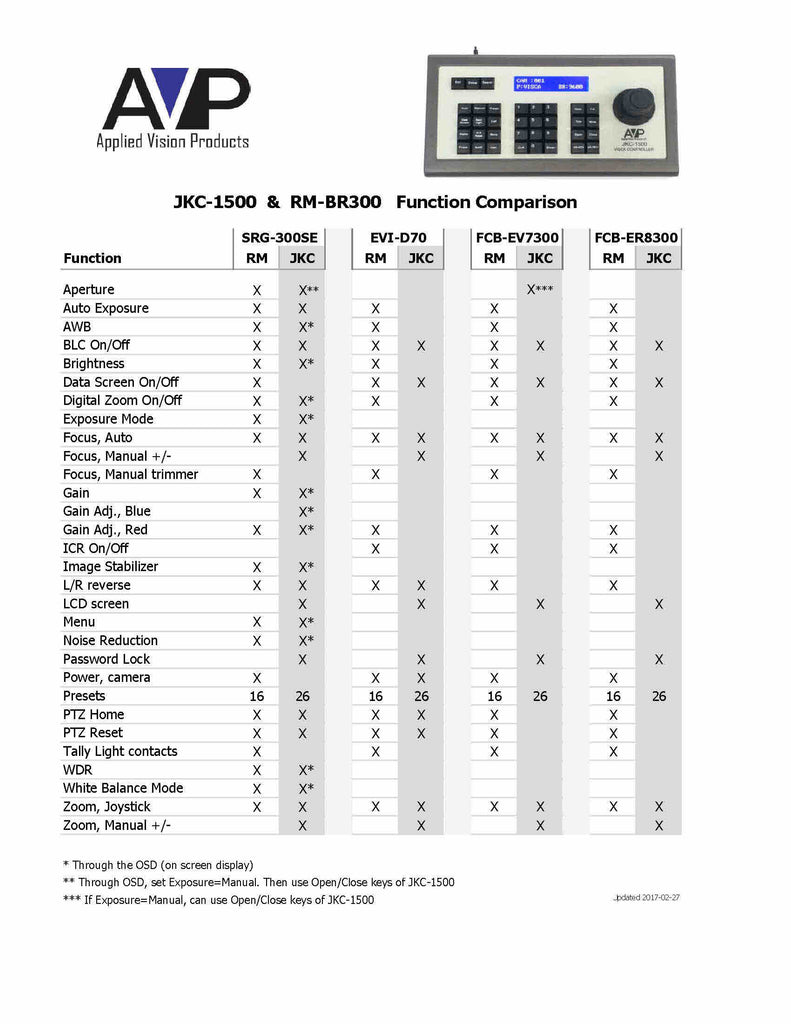

This PTZ joystick controller is a low cost, high feature alternative to Sony RM-BR300.
Free shipping within the US. Most orders ship within 24 hours.
Features:
- Sony VISCA compatible: EVI, FCB, & SRG series cameras
- RS232C communication (DB9 Male, 9600bps)
- RS422 communication (terminal block, 9600bps)
- Pan / Tilt / Zoom / Focus / BLC control
- Pan / Tilt / Zoom speed varies by joystick position
- 26 programmable camera presets
- Control up to 7 daisy-chained cameras
- LCD Display (backlit)
- Power: 110VAC Input adapter included
- RS232 (DB9 to 8pin mini DIN) cable included
- Dimensions: 32 x 18 x 10.5cm (with joystick height included)
Applications:
- House of Worship
- Video Conferences
- Meetings
- Classrooms
- Unmanned Applications
- TV Broadcasting
--
This PTZ camera controller is comparable to the Sony VISCA RS232C DB9 & RS422 control for Sony FCB, EVI, SRG, etc. camera series models. This PTZ camera controller features a comfortable joystick, keyboard, and a LCD display. The AVP JKC-1500 PTZ camera controller is a cost effective alternative to Sony's RM-BR300 joystick controller. It can control 1 to 7 cameras with up to 26 presets per camera. Applied VP part number JKC-1500.
