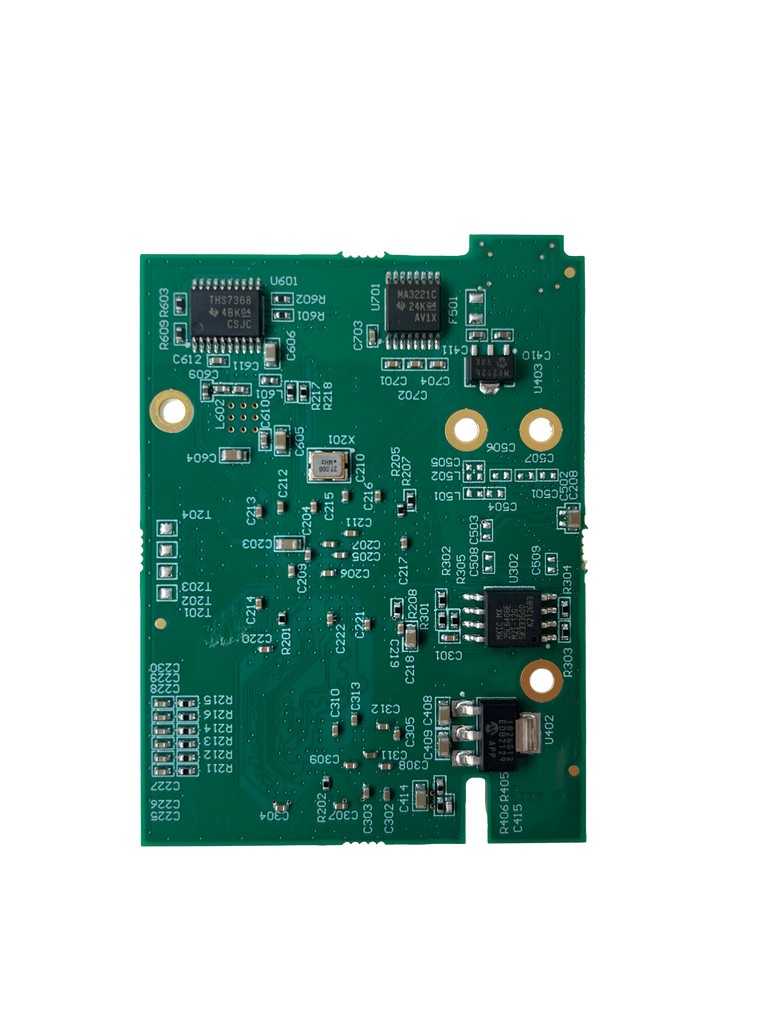

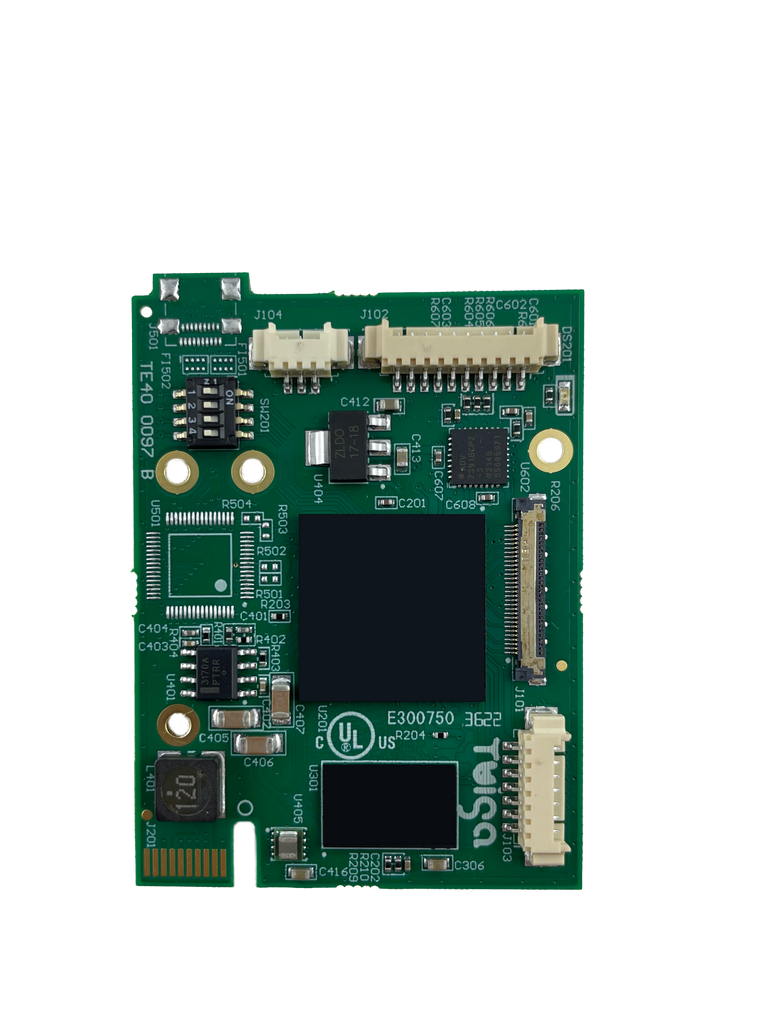

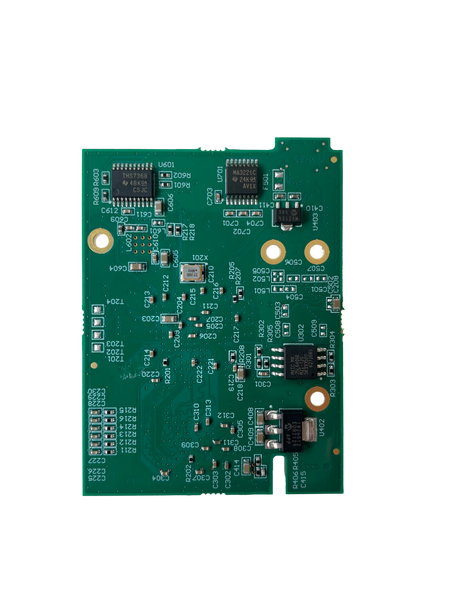

AVP YPBPR-EV-MP1010 LVDS to Analog HD/YPbPr & CVBS Interface Board for Tamron MP1010M-VC / MP3010M-EV Cameras
The YPBPR-EV-MP1010 from Applied Vision Products (AVP) is a compact LVDS to analog HD/SD interface board designed specifically for Tamron MP1010M-VC and MP3010M-EV block cameras.
This interface board converts the LVDS digital output of the Tamron camera modules into YPbPr analog HD video and CVBS/Y-C analog SD video, allowing seamless integration into legacy analog video systems, surveillance infrastructure, robotics platforms, and broadcast monitoring environments.
With support for NTSC/PAL formats, VISCA serial control, and GPIO camera functions, the YPBPR-EV-MP1010 provides integrators with a flexible and reliable interface for deploying Tamron block cameras in analog video workflows.
Key Features:
• Converts LVDS camera output to analog HD and SD video
• Supports YPbPr analog HD output up to 1080p
• Provides CVBS and Y/C analog SD video output
• Compatible with Tamron MP1010M-VC and MP3010M-EV block cameras
• Supports 720p50/60 and 1080p25/30 HD video formats
• Converts 1080p to NTSC or PAL analog SD formats
• VISCA protocol support via RS232 or TTL
• GPIO control for zoom, focus, and freeze functions
• Compact embedded board design for system integration
• Wide input power range 8–12 VDC
Typical Applications:
• Surveillance and security systems
• Broadcast and AV signal conversion
• Robotics and remote vision platforms
• Military and defense observation systems
• UAV and unmanned vehicle vision systems
• Industrial inspection systems
• Legacy analog monitoring infrastructure
• Law enforcement mobile surveillance units
