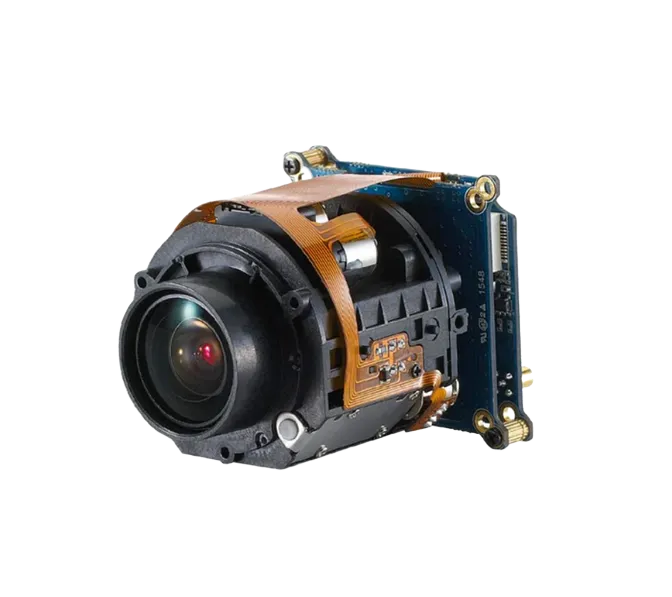

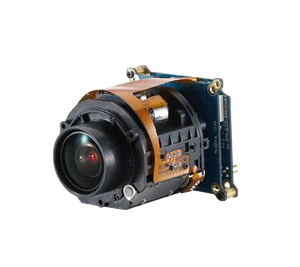

WONWOO MC-S038B 2MP High Sensitivity 3x Zoom Module Camera, 1/1.9" Sony CMOS, Day/Night, WDR, HD-SDI/EX-SDI/HD-TVI/CVBS

MC-S038B Spec Sheet

The WONWOO MC-S038B 2MP High Sensitivity 3x Zoom Module Camera delivers precision imaging and reliable performance for professional surveillance, industrial monitoring, and broadcast applications. Engineered with a 1/1.9" 2MP Sony CMOS sensor, this camera provides outstanding low-light sensitivity and sharp, detailed images across all lighting conditions.

Featuring 3x optical zoom (3.6–10mm) and 32x digital zoom, the MC-S038B captures fine details and close-up subjects with exceptional clarity. Its Day/Night (ICR) capability, Wide Dynamic Range (WDR), and 2D+3D Digital Noise Reduction ensure consistent image quality, even in complex lighting scenarios.

Advanced functionality includes Privacy Masking, High Light Compensation, Intelligent Motion Detection, and Defog support for environmental resilience. Integration is seamless with VISCA and Pelco-D/P protocols, while versatile video outputs (HD-SDI, EX-SDI, HD-TVI, CVBS) support multiple system configurations.

Features:

• 1/1.9" 2MP Sony CMOS sensor
• 1080p 60fps/30fps, 720p 60fps/30fps
• 3x Optical Zoom (3.6–10mm) & 32x Digital Zoom
• Day & Night (ICR)
• Wide Dynamic Range (WDR)
• 2D+3D Digital Noise Reduction
• Privacy Mask Function
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Outputs: HD-SDI, EX-SDI, HD-TVI, CVBS

Applications:

• Security & Surveillance
• Industrial Process Monitoring
• Broadcast & Media Production
• Critical Infrastructure Observation
