WONWOO MC-G305 3MP Global Shutter Block Camera, Sony CMOS Sensor, 30x Optical Zoom, Full HD 1080p/60fps, LVDS & CVBS Output

MC-G305 Spec Sheet

The WONWOO MC-G305 Block Camera is a compact, high-performance imaging solution built around a 1/3.1” Sony 3MP CMOS global shutter sensor. Delivering crisp Full HD 1080p video at up to 60fps, it ensures precise imaging for surveillance, industrial, and broadcast applications. Its 30x optical zoom (4.6–136mm) and 32x digital zoom enable long-range monitoring with exceptional detail and clarity.

Engineered for professional use, the MC-G305 supports Day/Night (ICR) switching, 2D/3D Digital Noise Reduction, Defog mode, and Digital Image Stabilization to maintain reliable performance in low-light and harsh environmental conditions. With motion detection, privacy masking, and multiple control protocol support (VISCA, Pelco-D, Pelco-P), this camera integrates seamlessly into diverse video systems. Dual video outputs (LVDS and CVBS) allow flexible deployment, while its durable build supports operation in temperatures ranging from -10°C to +50°C.

Lightweight at only 278g, the WONWOO MC-G305 provides a versatile, cost-effective block camera module for global security, research, traffic monitoring, and industrial imaging markets.

Features:

• Sensor: 1/3.1” Sony 3MP CMOS Global Shutter
• Resolution: Full HD 1080p @ 60fps / 30fps, 720p @ 60fps / 30fps
• Zoom: 30x optical (4.6–136mm) + 32x digital
• Low-Light: Minimum 0.01 lux (B/W mode)
• Video Outputs: LVDS (BT.1120) and CVBS
• Control Protocols: VISCA, Pelco-D, Pelco-P
• Image Enhancements: Day/Night (ICR), 2D+3D DNR, Defog, Digital Image Stabilization

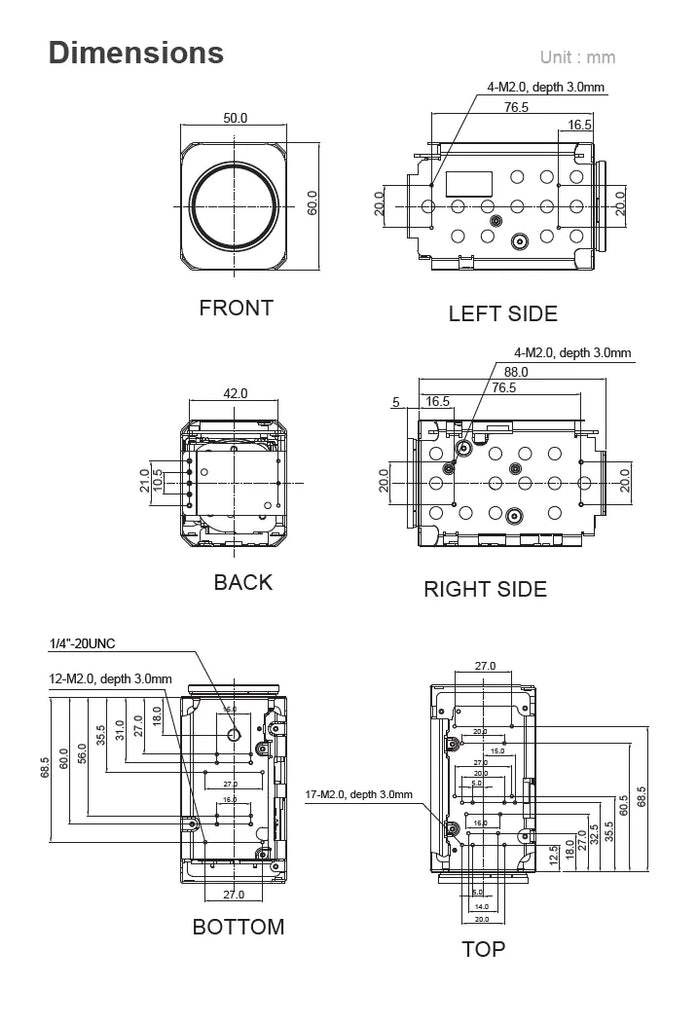

• Size/Weight: 50(W) × 60(H) × 93(D) mm / 278g
• Operating Temperature: -10°C to +50°C

Applications:

• Surveillance
• Security
• Broadcasting
• Industrial Imaging
• Research
• Traffic Monitoring
• Robotics
• UAV Inspection
