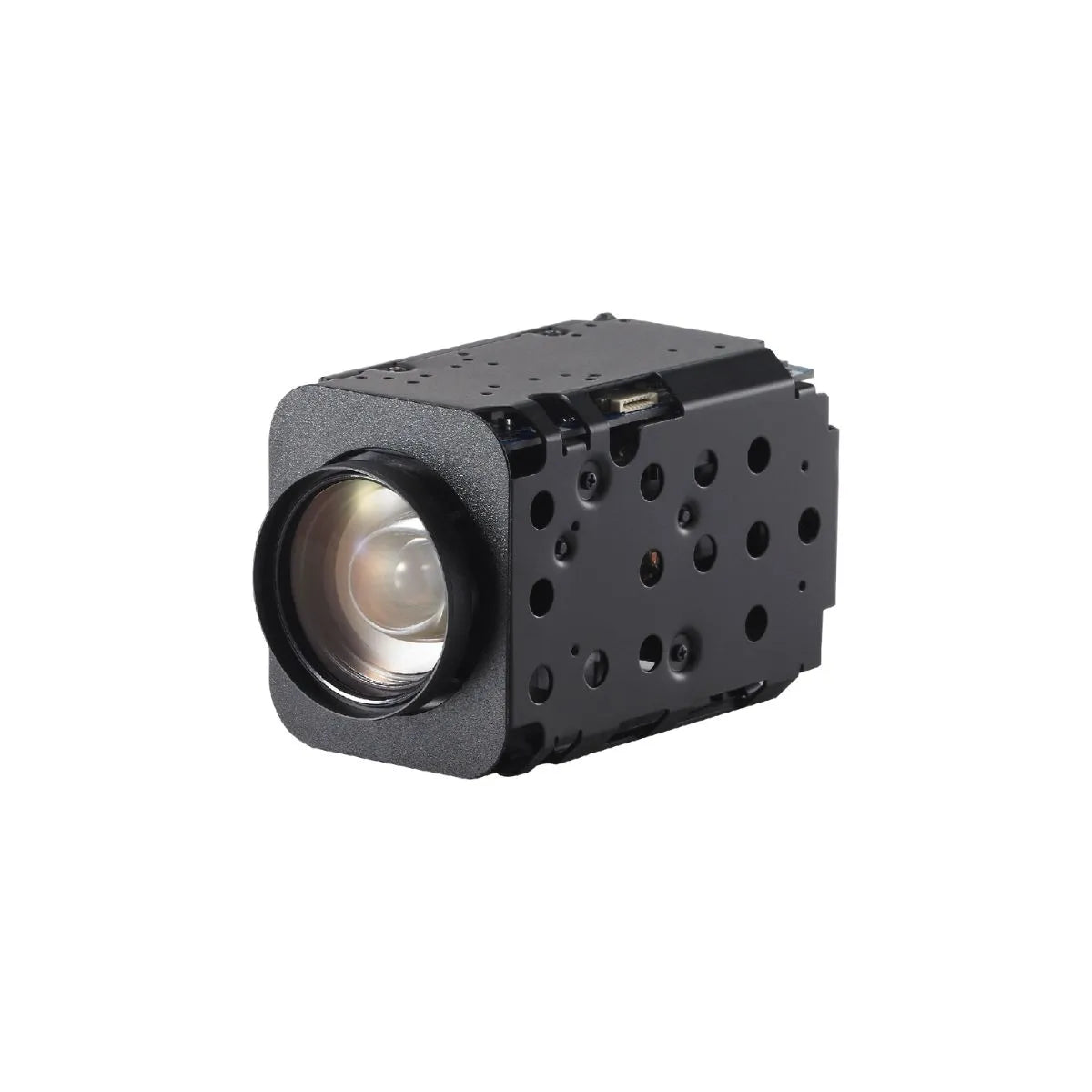

WONWOO MC-209B 2MP 20x Zoom Module Camera, 1/2.8" Sony CMOS, Full HD 1080p, EX-SDI/CVBS

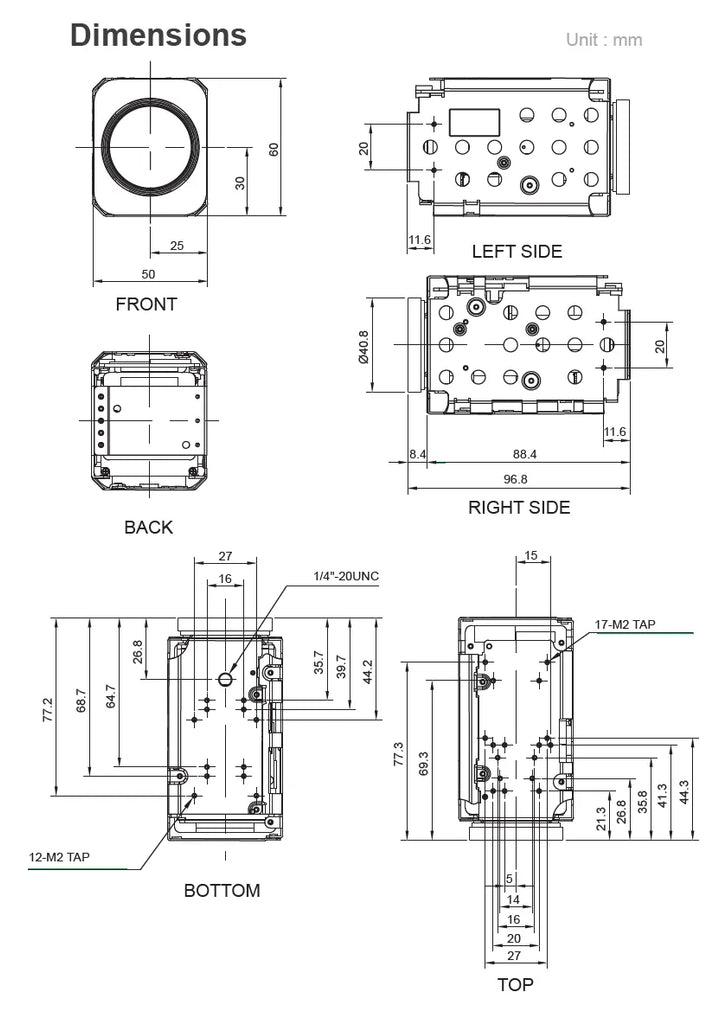

MC-209B Spec Sheet
The WONWOO MC-209B 2MP 20x Zoom Module Camera is a professional-grade imaging module built for demanding security, broadcast, and industrial deployments. Centered on a 1/2.8" Sony 2MP CMOS sensor, the MC-209B delivers sharp Full HD video at 1080p/60fps, strong low-light sensitivity, and consistent performance across varying lighting conditions.
Featuring 20x optical zoom (5.2–104mm) with 32x digital zoom, the MC-209B captures fine detail at range while maintaining clarity. Core imaging technologies — Day/Night (ICR), Wide Dynamic Range (WDR), and 2D+3D Digital Noise Reduction — keep footage usable in backlit, low-light, and high-contrast scenes. Operational reliability is bolstered by Digital Image Stabilization, Privacy Masking, Defog, and High Light Compensation.
Integration is straightforward: the camera supports VISCA, Pelco-D, and Pelco-P control protocols and provides EX-SDI and CVBS video outputs for broad system compatibility. Trusted by integrators and installers, the MC-209B is ideal for projects that require dependable Full HD imaging, precision zoom, and flexible connectivity.
Features:
- 1/2.8" 2MP Sony CMOS sensor
- 1080p @ 60fps / 30fps (also 1080i, 720p)
- 20x Optical Zoom (5.2–104mm) + 32x Digital Zoom
- Day & Night (ICR)
- Wide Dynamic Range (WDR)
- 2D + 3D Digital Noise Reduction (DNR)
- Digital Image Stabilization (DIS)
- Privacy Mask Function
- High Light Compensation (HLC)
- Intelligent Motion Detection
- Defog Function
- Protocols: VISCA, Pelco-D, Pelco-P
- Video Out: EX-SDI, CVBS
Applications:
- Security
- Traffic
- Broadcast
- Industrial
- Perimeter
- Law Enforcement
- Retail
- Maritime
