Sony FCB-ER9500 4K/60p Block Camera, 8.4MP, 1/1.8" STARVIS2 CMOS, 25x Optical Zoom, LVDS Output, WDR & Super Stabilization
Sony FCB-ER9500 4K/60p Block Camera, 8.4MP, 1/1.8" STARVIS2 CMOS, 25x Optical Zoom, LVDS Output, WDR & Super Stabilization
Sony FCB-ER9500 4K/60p Block Camera, 8.4MP, 1/1.8" STARVIS2 CMOS, 25x Optical Zoom, LVDS Output, WDR & Super Stabilization
Sony FCB-ER9500 4K/60p Block Camera, 8.4MP, 1/1.8" STARVIS2 CMOS, 25x Optical Zoom, LVDS Output, WDR & Super Stabilization
Applied Vision Products

Sony FCB-ER9500 4K/60p Block Camera, 8.4MP, 1/1.8" STARVIS2 CMOS, 25x Optical Zoom, LVDS Output, WDR & Super Stabilization

$1,094.00 $0.00
Shipping calculated at checkout.

FCB-ER9500 Spec Sheet
FCB-ER9500 Technical Manual

The Sony FCB-ER9500 delivers high-performance 4K/60p imaging with advanced STARVIS2 CMOS sensor technology, providing exceptional low-light sensitivity and wide dynamic range. With 25x optical zoom, 30x StableZoom, and super image stabilization, this compact block camera captures crisp, detailed video across a wide range of challenging environments. Ideal for OEM integration, robotics, UAVs, industrial inspection, medical imaging, and security applications, the ER9500 ensures reliable, professional-grade performance.

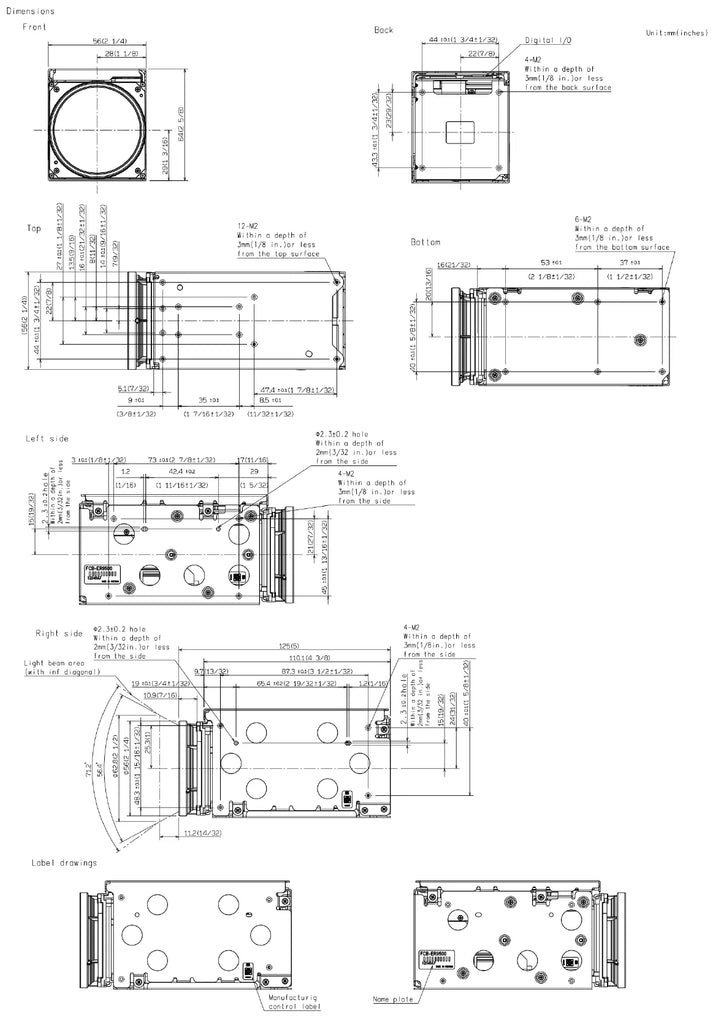

Equipped with LVDS and HDMI outputs, VISCA control protocol, and versatile autofocus modes, the FCB-ER9500 integrates seamlessly into complex systems. Its lightweight, compact design (56 × 64 × 125 mm, ~464 g) simplifies installation while delivering precise imaging, making it an excellent choice for surveillance, intelligent traffic, and remote video production.

Features:

  • 4K/60p UHD Output: Smooth ultra-high-definition video at up to 3840 × 2160, 60 fps.
  • STARVIS2 CMOS Sensor (IMX678, 8.4MP): Excellent low-light sensitivity and wide dynamic range.
  • 25x Optical Zoom, 30x StableZoom, 12x Digital Zoom: Capture distant details with clarity.
  • Super Image Stabilizer: Reduced blur in dynamic environments.
  • Flexible Video Output: Supports 4K, 1080p, and 720p for system integration.
  • Advanced Autofocus & Exposure: Normal, interval, one-push, and spot AF modes; backlight compensation; visibility enhancer; WDR.
  • Compact & Lightweight: Easy OEM integration, robust performance in harsh conditions.
  • VISCA Control Protocol: CMOS 3.3V compatible, multiple baud rates (9.6 kbps – 115.2 kbps).

Applications:

  • UAV and drone surveillance
  • Robotics and automated vision systems
  • Industrial inspection and quality control
  • Medical imaging and diagnostics
  • Security and perimeter monitoring
  • Broadcasting and remote video production
  • Underwater and harsh environment imaging
  • Intelligent traffic monitoring and ANPR
