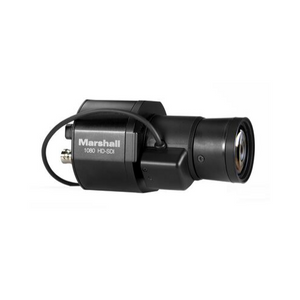

Marshall CV345-CS HD Compact Broadcast Camera with AUDIO + HDMI

The Marshall CV345-CS compact camera sets itself apart by adding HDSDI/3GSDI (BNC) and HDMI (v.1.3) simultaneous outputs and optional audio Mic or Line-Level selectable input. Applications include broadcast televsion, live production, courtroom capture, OB vans/trucks, reality and hidden camera shows, sports, racing, theater, house of worship, and POV.

The Marshall CV345-CSs compact camera features:

• 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25fps


• 2.5 Megapixel 1/3-inch CMOS sensor


• CS/C Mount with DC-Auto Iris (lens sold separately)


• Hirose-style (I/O) connector contains: RS-485 connectors, 12V power connector & audio TRS


• Mic/Line level input


• 3G/HDSDI (BNC) & HDMI (full size-v1.3) built into rear panel


• Captures sharp & vivid color images at 0.2 lux (low light sensitive)


• New WDR function supports high speed & high sensitivity to various light sources


• TRS audio input with Line/Mic level selectable depending on input device, unbalanced Mono (L/R mixed), phantom 2.5V power


• OSD Menu Joystick, RS-485 (Pelco/Visca)


• Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust


• Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2


• Includes 12V power supply in box
