Ricoh FL-YFL5028 Lens
Regular price
$1,916.00
Shipping calculated at checkout.
Powerful lenses for shooting extreme up close shots, the Ricoh FL-YFL5028-AVP lens is perfectly engineered for applications in industries such as inspection of steel, pulp, fiber/textiles, printing, film and various other flat materials as well as web appearance testing equipment and many other applications that require a close up detailed look.
--
Weighing a paper light 149 grams with focus and lock screws this is the perfect lens for the toughest inspection, machine vision and industrial uses.
Free shipping within the US. One (1) year warranty.
| Formate Size |
45mm Image Circle
|
| Focal Length | 35mm |
| Max. Aperture Ratio | 1 : 2.8 |
| Iris Range | 2.8 - 22 |
| Mount |
F (bayonet mount)
|
| Field of View - 4,096x7µm |
57 mm (Magnification: 0.5x)
|
| Field of View - 7,450x4.7µm |
70 mm (Magnification: 0.5x)
|
| Field of View - 4,096x10µm |
81 mm (Magnification: 0.5x)
|
| Minimum object distance |
0.25 m (Magnification: 0.5x)
|
| Back focal length | 36.99 mm |
| Filter size | 62 P=0.75 mm |

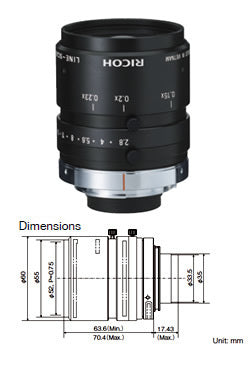

| Dimensions |
φ72x56.8 mm(FL-YFL5028)
φ72x57.8 mm(FL-YKL5028) |
| Min.~Max. Magnification | ∞ ~ 0.5X |
| Weight | 370 g |
| Remarks |
Focus: Lock Screw Iris: Click stop.
Not for photographic cameras. |
