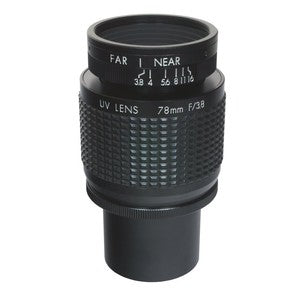

Ricoh FL-BC7838-VGUV Lens
Regular price
$6,910.00
Shipping calculated at checkout.
Ricoh’s FL-BC7838-VGUV manual UV (Ultraviolet) lens with lock screws for vibration control for rough and demanding applications such as detection of counterfeit banknotes, falsified documents and credit cards, surface inspection of circuit boards for soldering defects.
--
With format size of 1, 2/3, 1/2” and 78 mm focal length the FL-BC7838-VGUV is the perfect blend of affordability and performance. With a dimension of φ30×25.4 mm and 33 grams you won’t even know anything has been added making it an easy addition with a lot of benefits.
Free shipping within the US. One (1) year warranty.
| Formate Size | 1, 2/3, 1/2" |
| Focal Length | 78 mm |
| Max. Aperture Ratio | 1 : 3.8 |
| Iris Range | 3.8～16 |
| Mount | C |
| HAV 1/3" Format | 3.5° |
| HAV 1/2" Format | 4.7° |
| HAV 1/1.8" Format | 5.3° |
| HAV 2/3" Format | 6.5° |
| HAV 1" Format | 9.5° |
| Minimum Object Distance | 0.44 m |
| Filter Size | 49 P=0.75 mm |
| Dimensions | φ62.5×109.3 mm |
| Weight | 446 g |
| Remarks | Optimum wavelength 365nm |
