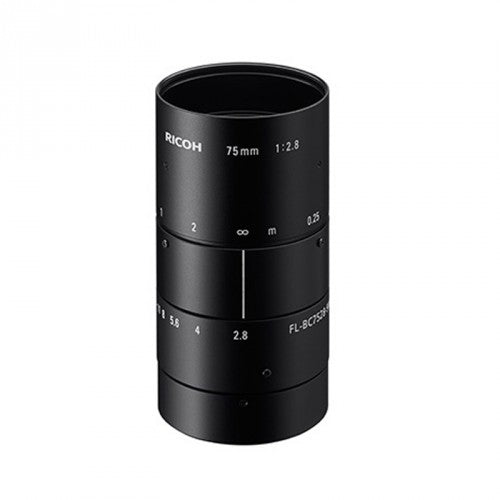

Ricoh FL-BC7528-9M Lens
Regular price
$1,170.00
Shipping calculated at checkout.
The Ricoh FL-BC7528-9M manual 9 Megapixel lens with lock screws for vibration control for rough and demanding applications such as pattern matching, component positioning, missing-part inspection, board mounting, and inspection of pharmaceuticals, produce, and grains.
--
With format sizes ranging from 1” and 75 mm focal length the Ricoh FL-BC7528-9M is the perfect blend of affordability and performance. With a dimension of φ42×81 mm and 189 grams you won’t even know anything has been added making it an easy addition with a lot of benefits.
Free shipping within the US. One (1) year warranty.
| Formate Size | 1" |
| Focal Length | 75mm |
| Max. Aperture Ratio | 1 : 2.8 |
| Iris Range | 2.8 - 32 |
| Mount | C |
| HAV 1/3" Format | 3.7° |
| HAV 1/2" Format | 4.9° |
| HAV 1/1.8" Format | 5.5° |
| HAV 2/3" Format | 6.7° |
| HAV 1" Format | 9.8° |
| Minimum Object Distance | 0.25m |
| Back Focal Length | 21.3mm |
| Filter Size | 40.5 P=0.5mm |
| Dimensions | φ42mmx81mm |
| Weight | 189 g |
| Remarks | Focus & Iris lock screws |
