Ricoh FL-BC1214D-VG Lens
Regular price
$299.00
Shipping calculated at checkout.

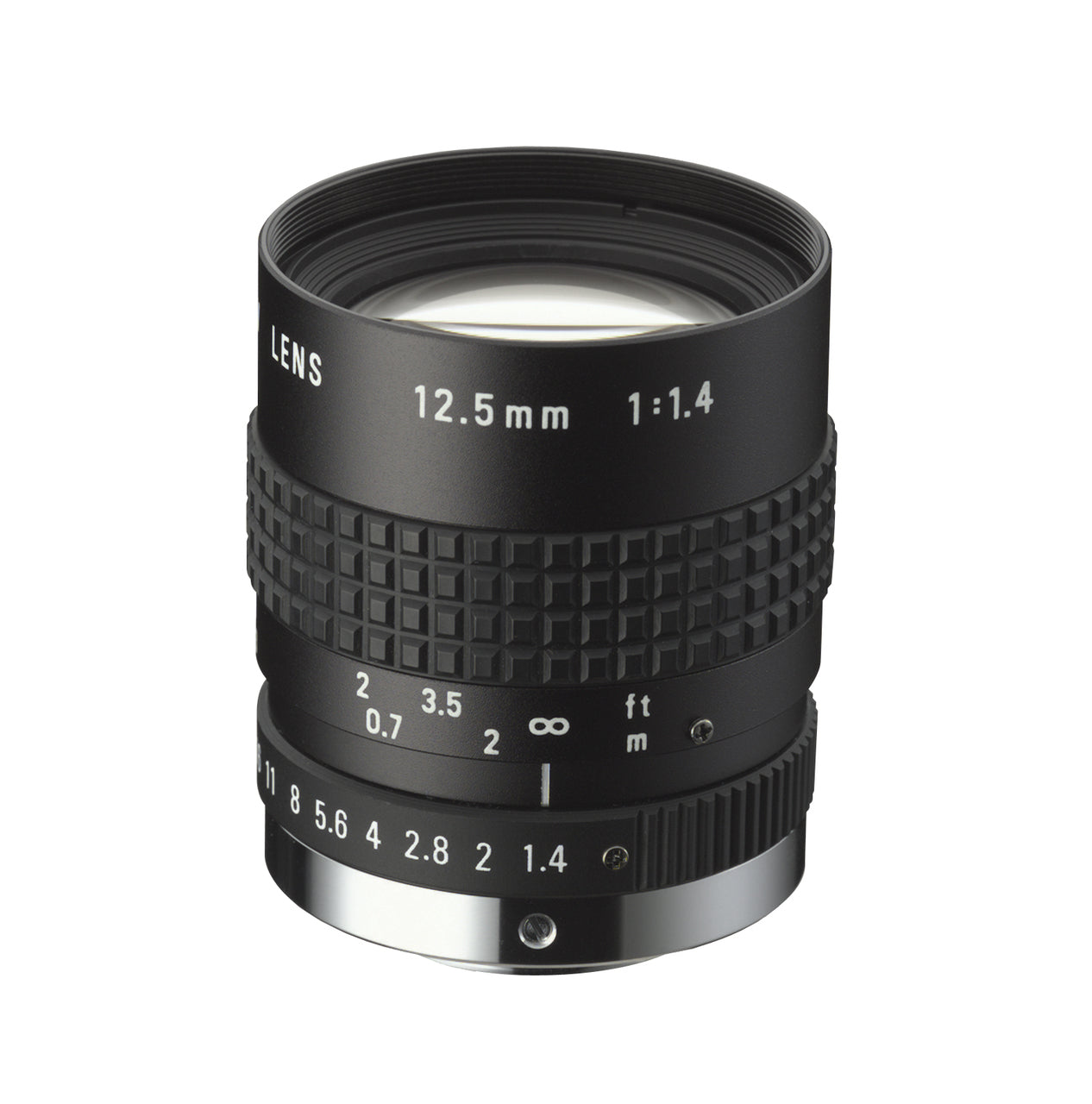

Used in an wide variety of applications including pattern matching, component positioning, missing-part inspection, board mounting, and inspection of pharmaceuticals, produce, and grains, the FL-BC1214D-VG-AVP fixed focal length lens with locking screws for C and CS-mount cameras and a 12.5 mm focal length.
--
With a temperature range of -20°C to +50°C and a light weight of 135 grams or in other words an ultra light 0.297624 lbs. it can be used in a variety of climates and conditions and situations. Both iris type and focus control are controlled manually and features a vibration-control measure to reduce blur and and motion vibration in factory and inspection applications.
Free shipping within the US. One (1) year warranty.
| Formate Size | 1, 2/3, 1/2, 1/3" format |
| Focal Length | 12.5m |
| Max. Aperture Ratio | 1:1.4 |
| Iris Range | 1.4-Close |
| Mount | C |
| HAV 1/3" Format | 21.5° |
| HAV 1/2" Format | 28.5° |
| HAV 1/1.8" Format | 31.9° |
| HAV 2/3" Format | 38.6° |
| HAV 1" Format | 53.9° |
| Minimum Object Distance | 0.3m |
| Back Focal Length | 14.40 mm |
| Filter Size | 40.5 P=0.5 mm |
| Dimensions | φ42×50 mm |
| Weight | 135 g |
| Remarks | Focus & Iris lock screws |
