KT&C KLU38-L 384x288 LWIR Thermal Block Camera, 17μm, CVBS/BT656/LVDS, 9Hz/30Hz

KLU38-L Spec Sheet

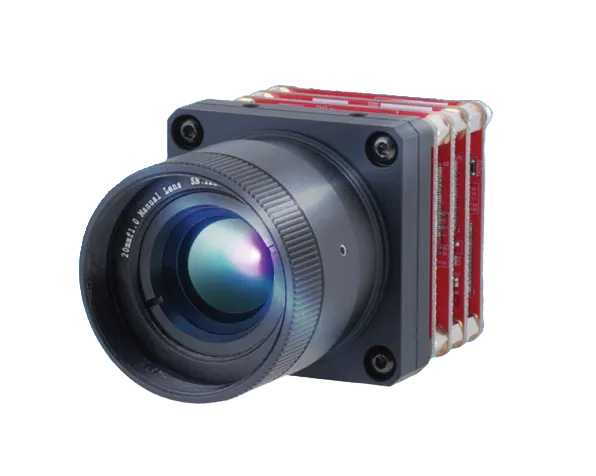

The KT&C KLU38-L LWIR thermal block camera delivers precise infrared imaging in a compact, integration-ready module. Equipped with a 384x288 QVGA uncooled microbolometer sensor (17μm pitch), it captures detailed thermal data across 110,592 pixels with high sensitivity and low NETD. Outputs include CVBS, BT656, and LVDS, supporting both legacy and modern digital pipelines. Factory-selectable 9Hz or 30Hz frame rates ensure regional compliance while providing real-time thermal data. Operating from -30°C to 60°C, with <5-second startup, the KLU38-L is ideal for embedded systems, industrial inspection, UAV payloads, and OEM thermal solutions.

Features:

• 384x288 QVGA LWIR thermal resolution (110,592 pixels)
• Uncooled microbolometer, 17μm pitch
• 8–14 μm spectral response
• CVBS, BT656, LVDS video outputs
• Factory-selectable 9Hz or 30Hz frame rate
• 10 thermal color palettes including Iron, Fire, Rain, BlueRed
• AGC, NUC, Level & Span, mirror, flip, invert
• Manual or motorized lens options; athermalized lenses available
• RS-485 OSD control (analog)
• KT&C proprietary menu protocol
• Operating temperature: -30°C to 60°C | Storage: -40°C to 70°C
• 12VDC input power
• Rapid startup <5 seconds

Applications:

• Embedded thermal imaging modules
• Industrial and electrical inspection
• Robotics and automation vision
• UAV and drone thermal payloads
• Perimeter security and critical infrastructure monitoring
• OEM thermal camera integration
• Environmental and wildlife monitoring
